JOHNSON CONTROLS
31
FORM 160.69-RP3
ISSUE DATE: 5/20/2022
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
61
Connr, Swivel 3/8 Od Tube
023 22121 000
2
14
62
Connr, 3/8 Od Tube Male
023 22121 000
2
14
63
Seal, Washer O Ring
021 31652 000
2
14
64
O-Ring, Neo1 00.364id .070thk M
028 12961 012
2
14
68
Hose, Refrig Orfs 3/4" X 35"
026 43093 035
1
14
69
Hose, Refrig Orfs 3/4" X 28"
026 43093 028
1
14
70
Transmitter, with Conduit Box and Connector
325 42383 002
1
14
70A
Connector, for Transmitter at Conduit Box
025 40232 000
1
14
71
Gasket, Seal 1 Od X 7/8 Id X
028 04836 000
1
14
100
Valve, Relief 7/8-14unf-2a (J1/K1, J2/K2)
022 10077 000
1
14
100
Plug, Hex Hd 7/8 (J3/K3, J4/K4, J5, J7/K7)
023 18961 000
1
14
100A
O-Ring, Neo1 00.755id .097thk M
028 12961 005
1
14
NOTE: Items with an * are NOT represented.

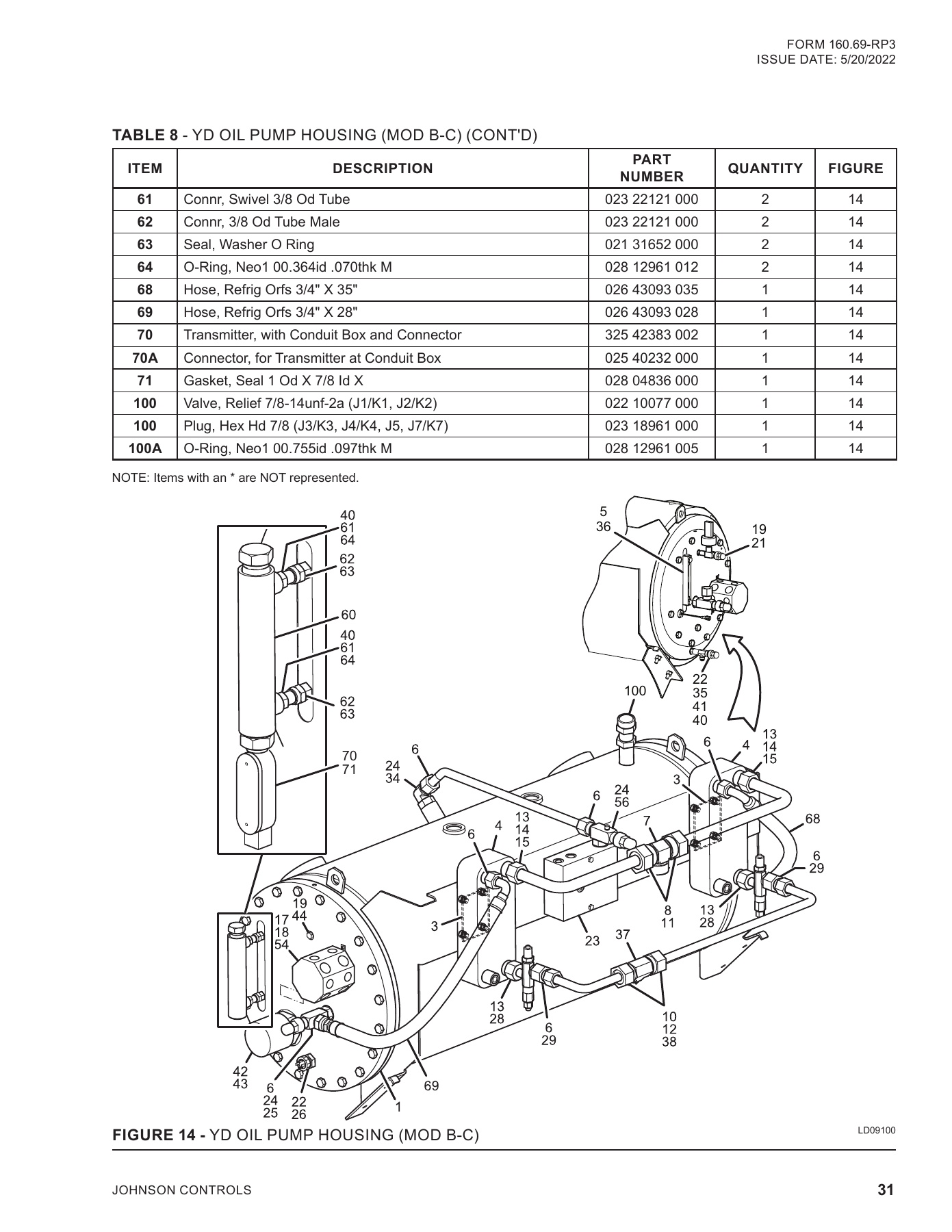

TABLE 8
- YD OIL PUMP HOUSING (MOD B-C) (CONTD)
FIGURE 14 -
YD OIL PUMP HOUSING (MOD B-C)
LD09100
5
36
100
19
21
22
35
41
40
70
71
