APPENDIX A (CONTD)

ITEM

Original Part

Number

New Part

Number

O-rings for

Small Pipe

Plugs used w/

Reverse Thrust

Brg (qty 3)

028-15846-000

O-ring for

Proximity

Probe

028-12961-021

For the J7/K7 compressor each item can be replaced

individually (example: if replacing forward thrust

bearing the original design reverse thrust bearing can

be reused if not damaged).

It is recommended that when replac-

ing a damaged original design bear-

ing that both the forward and reverse

thrust bearings are replaced with the

new part numbers.

LD13057

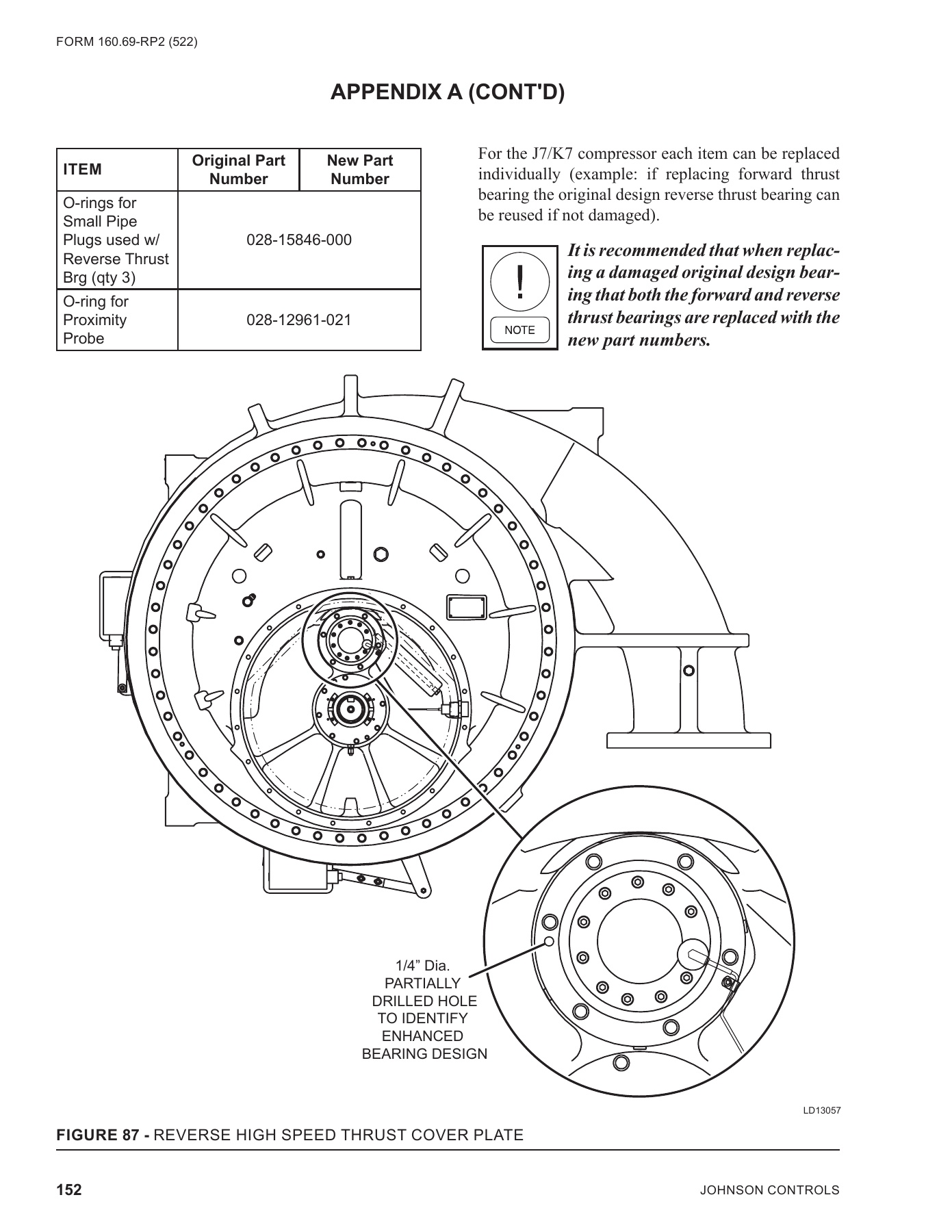

FIGURE 87 -

REVERSE HIGH SPEED THRUST COVER PLATE

1/4” Dia.

PARTIALLY

DRILLED HOLE

TO IDENTIFY

ENHANCED

BEARING DESIGN
