FORM 160.69-RP3
ISSUE DATE: 5/20/2022

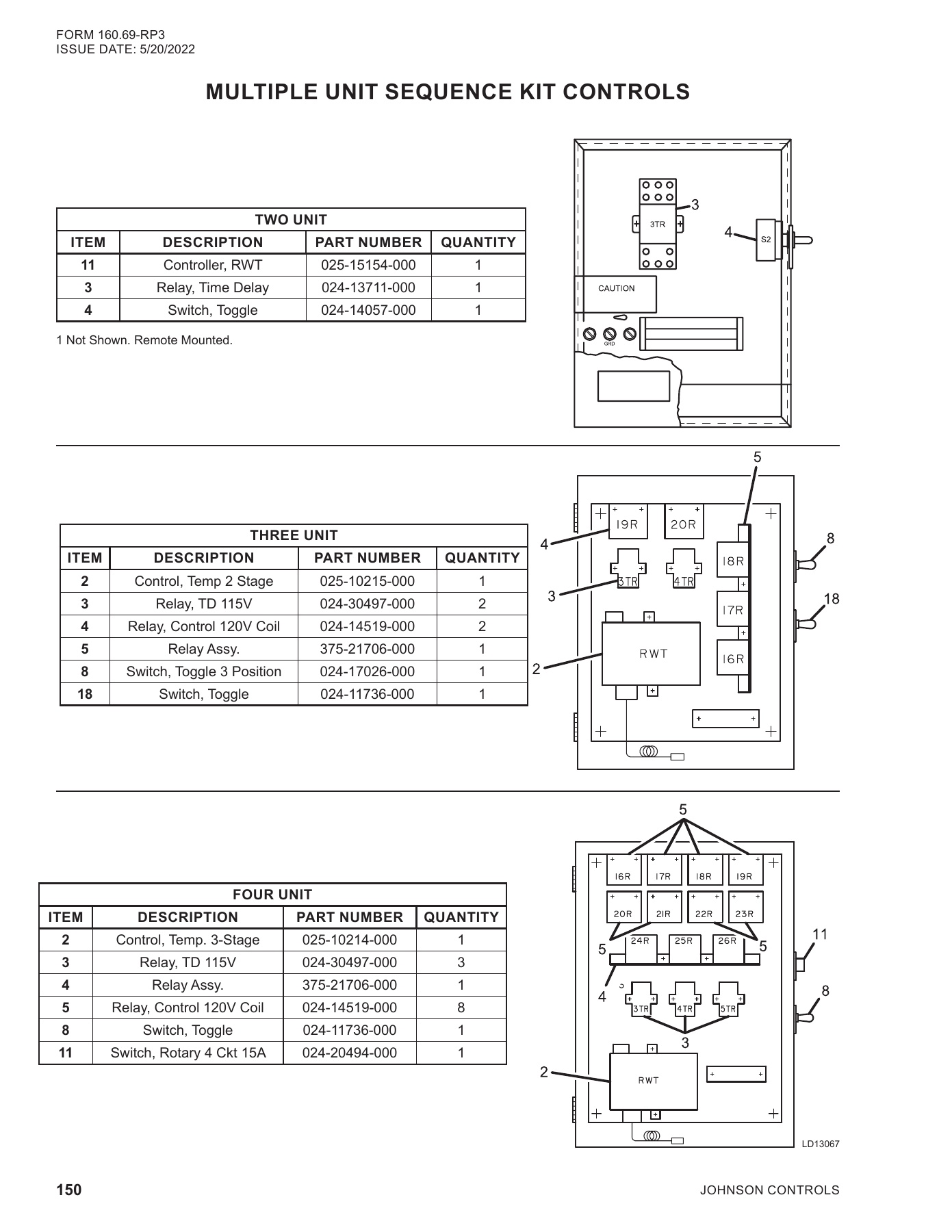

MULTIPLE UNIT SEQUENCE KIT CONTROLS
TWO UNIT
ITEM
DESCRIPTION
PART NUMBER QUANTITY
11
Controller, RWT
025-15154-000
1
3
Relay, Time Delay
024-13711-000
1
4
Switch, Toggle
024-14057-000
1
1 Not Shown. Remote Mounted.
THREE UNIT
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
2
Control, Temp 2 Stage
025-10215-000
1
3
Relay, TD 115V
024-30497-000
2
4
Relay, Control 120V Coil
024-14519-000
2
5
Relay Assy.
375-21706-000
1
8
Switch, Toggle 3 Position
024-17026-000
1
18
Switch, Toggle
024-11736-000
1
FOUR UNIT
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
2
Control, Temp. 3-Stage
025-10214-000
1
3
Relay, TD 115V
024-30497-000
3
4
Relay Assy.
375-21706-000
1
5
Relay, Control 120V Coil
024-14519-000
8
8
Switch, Toggle
024-11736-000
1
11
Switch, Rotary 4 Ckt 15A
024-20494-000
1
LD13067
