JOHNSON CONTROLS
112
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

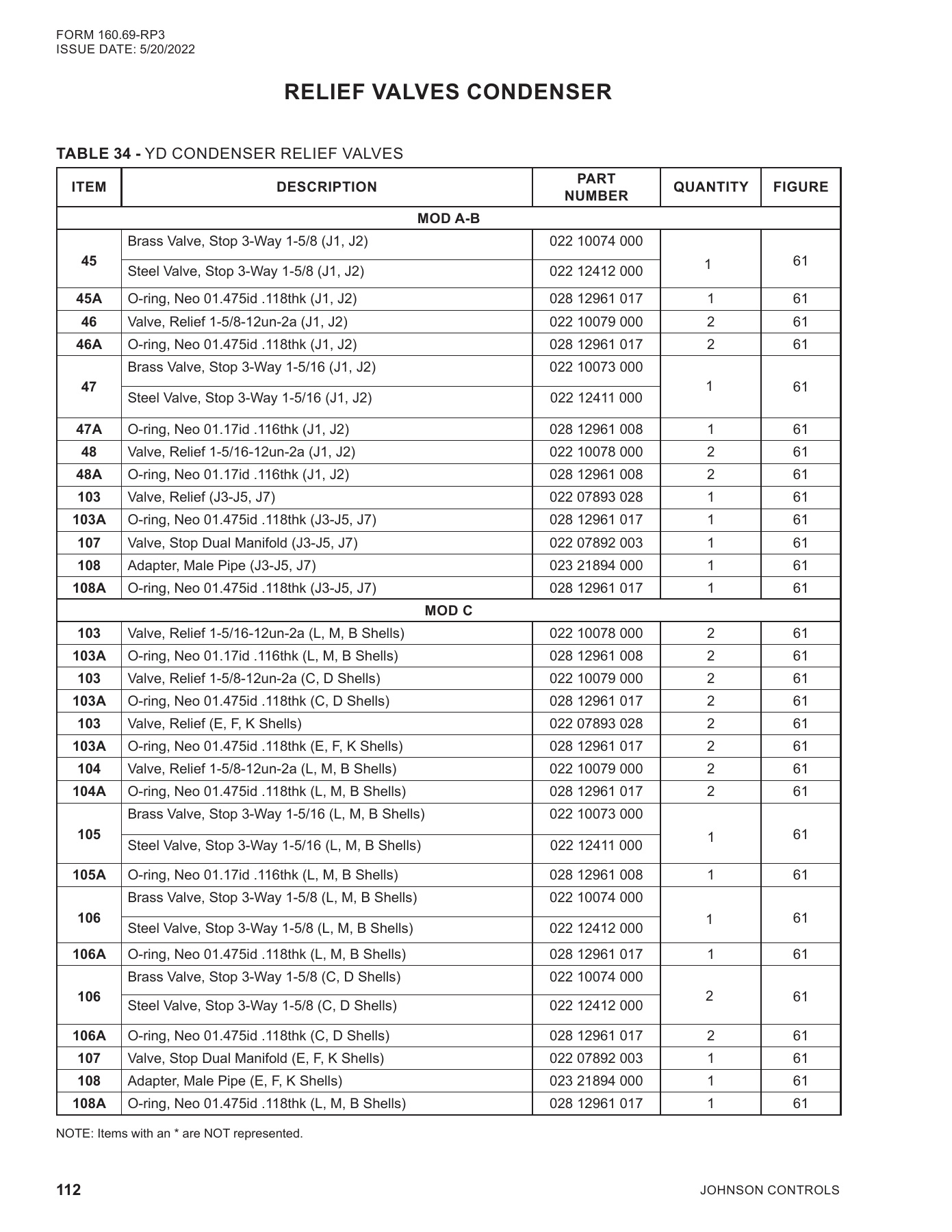

TABLE 34 -
YD CONDENSER RELIEF VALVES
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
MOD A-B
45
Brass Valve, Stop 3-Way 1-5/8 (J1, J2)
022 10074 000
1
61
Steel Valve, Stop 3-Way 1-5/8 (J1, J2)
022 12412 000
45A
O-ring, Neo 01.475id .118thk (J1, J2)
028 12961 017
1
61
46
Valve, Relief 1-5/8-12un-2a (J1, J2)
022 10079 000
2
61
46A
O-ring, Neo 01.475id .118thk (J1, J2)
028 12961 017
2
61
47
Brass Valve, Stop 3-Way 1-5/16 (J1, J2)
022 10073 000
1
61
Steel Valve, Stop 3-Way 1-5/16 (J1, J2)
022 12411 000
47A
O-ring, Neo 01.17id .116thk (J1, J2)
028 12961 008
1
61
48
Valve, Relief 1-5/16-12un-2a (J1, J2)
022 10078 000
2
61
48A
O-ring, Neo 01.17id .116thk (J1, J2)
028 12961 008
2
61
103
Valve, Relief (J3-J5, J7)
022 07893 028
1
61
103A
O-ring, Neo 01.475id .118thk (J3-J5, J7)
028 12961 017
1
61
107
Valve, Stop Dual Manifold (J3-J5, J7)
022 07892 003
1
61
108
Adapter, Male Pipe (J3-J5, J7)
023 21894 000
1
61
108A
O-ring, Neo 01.475id .118thk (J3-J5, J7)
028 12961 017
1
61
MOD C
103
Valve, Relief 1-5/16-12un-2a (L, M, B Shells)
022 10078 000
2
61
103A
O-ring, Neo 01.17id .116thk (L, M, B Shells)
028 12961 008
2
61
103
Valve, Relief 1-5/8-12un-2a (C, D Shells)
022 10079 000
2
61
103A
O-ring, Neo 01.475id .118thk (C, D Shells)
028 12961 017
2
61
103
Valve, Relief (E, F, K Shells)
022 07893 028
2
61
103A
O-ring, Neo 01.475id .118thk (E, F, K Shells)
028 12961 017
2
61
104
Valve, Relief 1-5/8-12un-2a (L, M, B Shells)
022 10079 000
2
61
104A
O-ring, Neo 01.475id .118thk (L, M, B Shells)
028 12961 017
2
61
105
Brass Valve, Stop 3-Way 1-5/16 (L, M, B Shells)
022 10073 000
1
61
Steel Valve, Stop 3-Way 1-5/16 (L, M, B Shells)
022 12411 000
105A
O-ring, Neo 01.17id .116thk (L, M, B Shells)
028 12961 008
1
61
106
Brass Valve, Stop 3-Way 1-5/8 (L, M, B Shells)
022 10074 000
1
61
Steel Valve, Stop 3-Way 1-5/8 (L, M, B Shells)
022 12412 000
106A
O-ring, Neo 01.475id .118thk (L, M, B Shells)
028 12961 017
1
61
106
Brass Valve, Stop 3-Way 1-5/8 (C, D Shells)
022 10074 000
2
61
Steel Valve, Stop 3-Way 1-5/8 (C, D Shells)
022 12412 000
106A
O-ring, Neo 01.475id .118thk (C, D Shells)
028 12961 017
2
61
107
Valve, Stop Dual Manifold (E, F, K Shells)
022 07892 003
1
61
108
Adapter, Male Pipe (E, F, K Shells)
023 21894 000
1
61
108A
O-ring, Neo 01.475id .118thk (L, M, B Shells)
028 12961 017
1
61
NOTE: Items with an * are NOT represented.
RELIEF VALVES CONDENSER
