JOHNSON CONTROLS
110
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

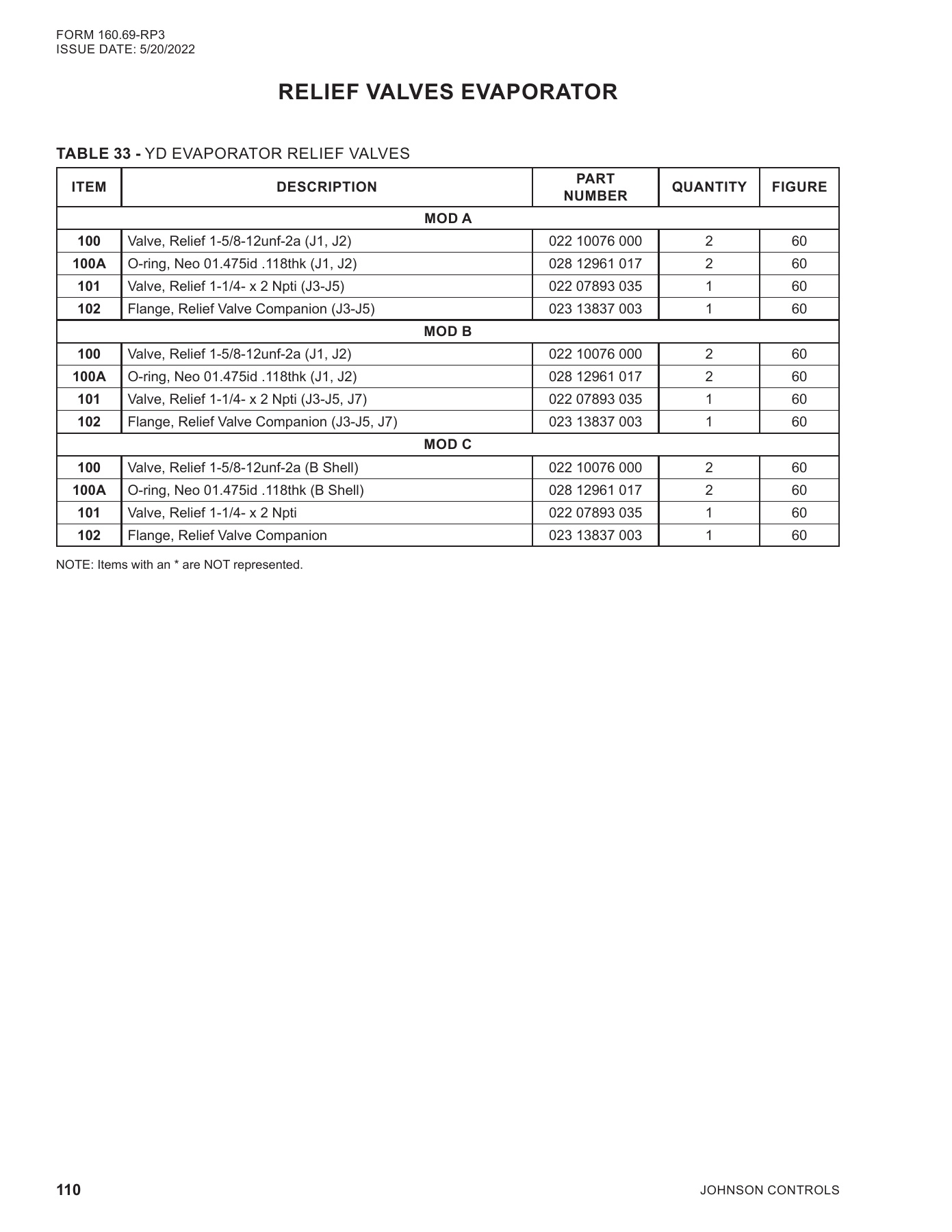

TABLE 33 -
YD EVAPORATOR RELIEF VALVES
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
MOD A
100
Valve, Relief 1-5/8-12unf-2a (J1, J2)
022 10076 000
2
60
100A
O-ring, Neo 01.475id .118thk (J1, J2)
028 12961 017
2
60
101
Valve, Relief 1-1/4- x 2 Npti (J3-J5)
022 07893 035
1
60
102
Flange, Relief Valve Companion (J3-J5)
023 13837 003
1
60
MOD B
100
Valve, Relief 1-5/8-12unf-2a (J1, J2)
022 10076 000
2
60
100A
O-ring, Neo 01.475id .118thk (J1, J2)
028 12961 017
2
60
101
Valve, Relief 1-1/4- x 2 Npti (J3-J5, J7)
022 07893 035
1
60
102
Flange, Relief Valve Companion (J3-J5, J7)
023 13837 003
1
60
MOD C
100
Valve, Relief 1-5/8-12unf-2a (B Shell)
022 10076 000
2
60
100A
O-ring, Neo 01.475id .118thk (B Shell)
028 12961 017
2
60
101
Valve, Relief 1-1/4- x 2 Npti
022 07893 035
1
60
102
Flange, Relief Valve Companion
023 13837 003
1
60
NOTE: Items with an * are NOT represented.
RELIEF VALVES EVAPORATOR
