TABLE 52 -

NEOPRENE VIBRATION ISOLATORS

SYSTEM OPERATING WEIGHT

PART NUMBER

(Includes Quantity of 4 Pads)

PAD SIZE

KILOGRAMS

POUNDS

Up to 7423

Up to 16,365

028-14462-000

5.5" x 5.5" (14 x 14 cm)

7424 to 13,107

16,366 to 28,835

028-14459-000

7" x 5.5" (23 x 14 cm)

13,108 to 24,332

28,836 to 53,530

028-14460-000

9" x 7" (23 x 18 cm)

24,333 to 45,666

53,531 to 100,464

028-14461-000

11" x 10" (30 x 25.4 cm)

45,667 to 58,967

100,465 to 130,000

028-15070-000

12" x 11" (30.5 x 30 cm)

58,968 to 91,332

130,001 to 200,928

028-14461-000*

11" x 10" (30 x 25.4 cm)

NOTE:

 * When used with K7. Quantity is 2.

TABLE 53 -

SPRING ISOLATORS

SYSTEM OPERATING WEIGHT

PART NUMBER

(Includes Quantity 4 Spring Bolts)

QUANTITY

(Number of Mounts Per Package)

KILOGRAMS

POUNDS

4536 to 8873

10,000 to 19,563

029-23716-000

4

8874 to 11,093

19,564 to 24,457

029-21793-000

4

11,094 to 13,982

24,458 to 30,826

029-21376-000

4

13,983 to 15,880

30,827 to 35,009

029-20933-000

4

15,881 to 20,974

35,010 to 46,239

029-20934-000

4

20,975 to 26,467

46,240 to 58,349

029-20935-000

4

26,468 to 35,031

58,350 to 77,229

029-20936-000

4

35,032 to 40,525

77,230 to 89,340

029-21388-000

4

40,526 to 52,163

89,341 to 115,000

029-24121-000

4

52,164 to 86,183

115,001 to 190,000

029-24384-000

4

LD13057

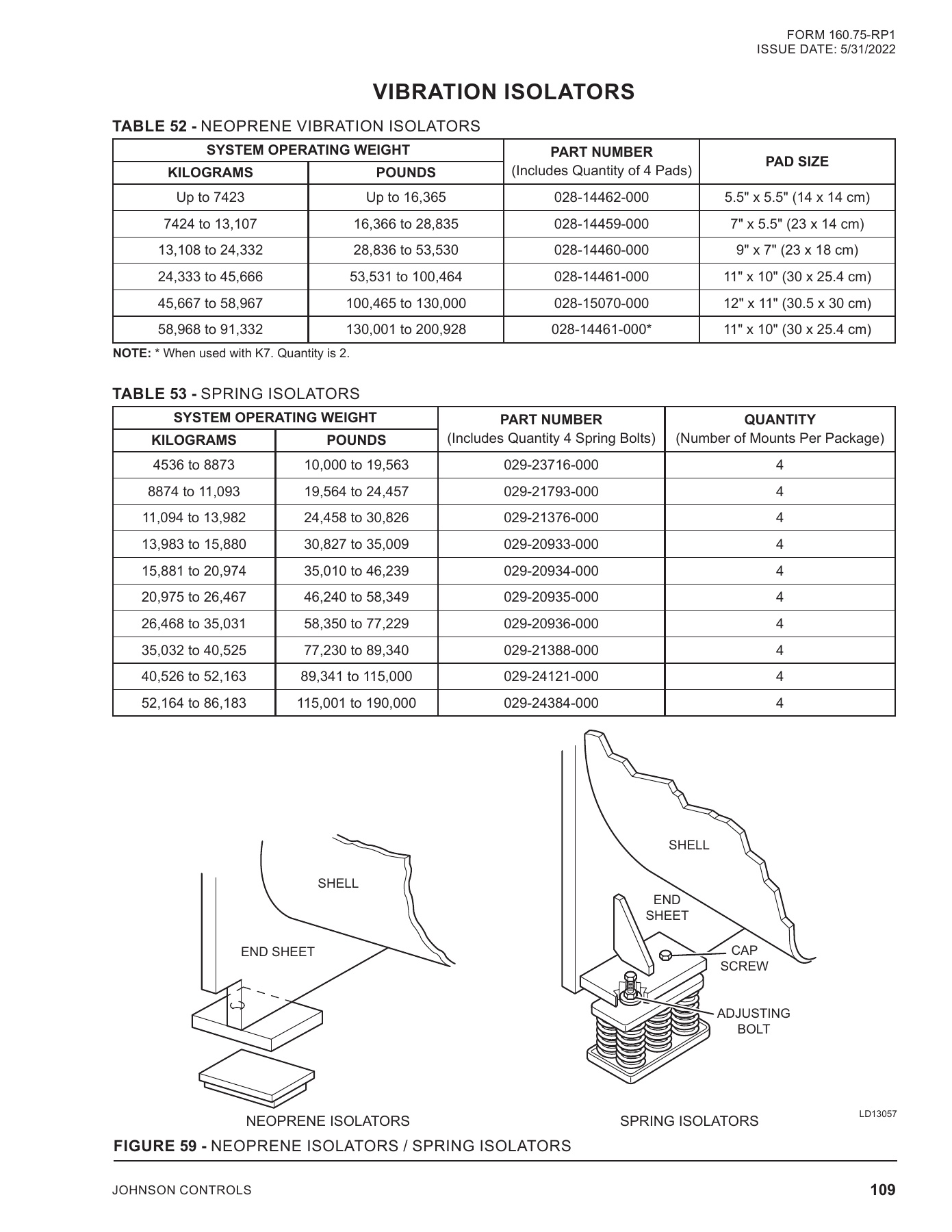

FIGURE 59 -

NEOPRENE ISOLATORS / SPRING ISOLATORS

SHELL

SHELL

END SHEET

END

SHEET

CAP

SCREW

ADJUSTING

BOLT

NEOPRENE ISOLATORS

SPRING ISOLATORS

VIBRATION ISOLATORS
