JOHNSON CONTROLS
108
FORM 160.75-RP1
ISSUE DATE: 5/31/2022

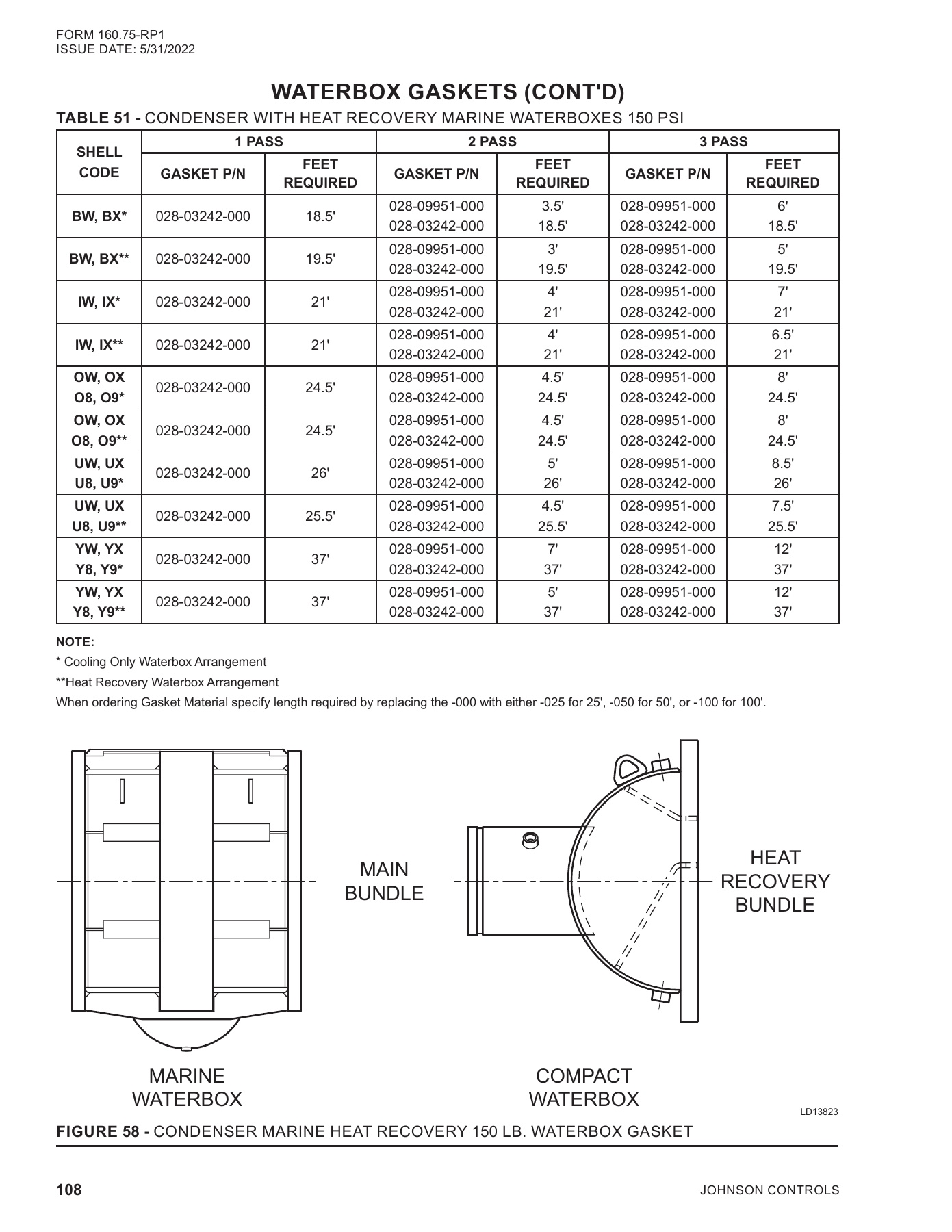

TABLE 51 -
CONDENSER WITH HEAT RECOVERY MARINE WATERBOXES 150 PSI
SHELL
CODE
1 PASS
2 PASS
3 PASS
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
BW, BX*
028-03242-000
18.5
028-09951-000
028-03242-000
3.5
18.5
028-09951-000
028-03242-000
6
18.5
BW, BX**
028-03242-000
19.5
028-09951-000
028-03242-000
3
19.5
028-09951-000
028-03242-000
5
19.5
IW, IX*
028-03242-000
21
028-09951-000
028-03242-000
4
21
028-09951-000
028-03242-000
7
21
IW, IX**
028-03242-000
21
028-09951-000
028-03242-000
4
21
028-09951-000
028-03242-000
6.5
21
OW, OX
O8, O9*
028-03242-000
24.5
028-09951-000
028-03242-000
4.5
24.5
028-09951-000
028-03242-000
8
24.5
OW, OX
O8, O9**
028-03242-000
24.5
028-09951-000
028-03242-000
4.5
24.5
028-09951-000
028-03242-000
8
24.5
UW, UX
U8, U9*
028-03242-000
26
028-09951-000
028-03242-000
5
26
028-09951-000
028-03242-000
8.5
26
UW, UX
U8, U9**
028-03242-000
25.5
028-09951-000
028-03242-000
4.5
25.5
028-09951-000
028-03242-000
7.5
25.5
YW, YX
Y8, Y9*
028-03242-000
37
028-09951-000
028-03242-000
7
37
028-09951-000
028-03242-000
12
37
YW, YX
Y8, Y9**
028-03242-000
37
028-09951-000
028-03242-000
5
37
028-09951-000
028-03242-000
12
37
NOTE:
* Cooling Only Waterbox Arrangement
**Heat Recovery Waterbox Arrangement
When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.
MARINE
WATERBOX
COMPACT
WATERBOX
MAIN
BUNDLE
HEAT
RECOVERY
BUNDLE
FIGURE 58 -
CONDENSER MARINE HEAT RECOVERY 150 LB. WATERBOX GASKET
LD13823
WATERBOX GASKETS (CONTD)
