JOHNSON CONTROLS

108

FORM 160.69-RP3

ISSUE DATE: 5/20/2022

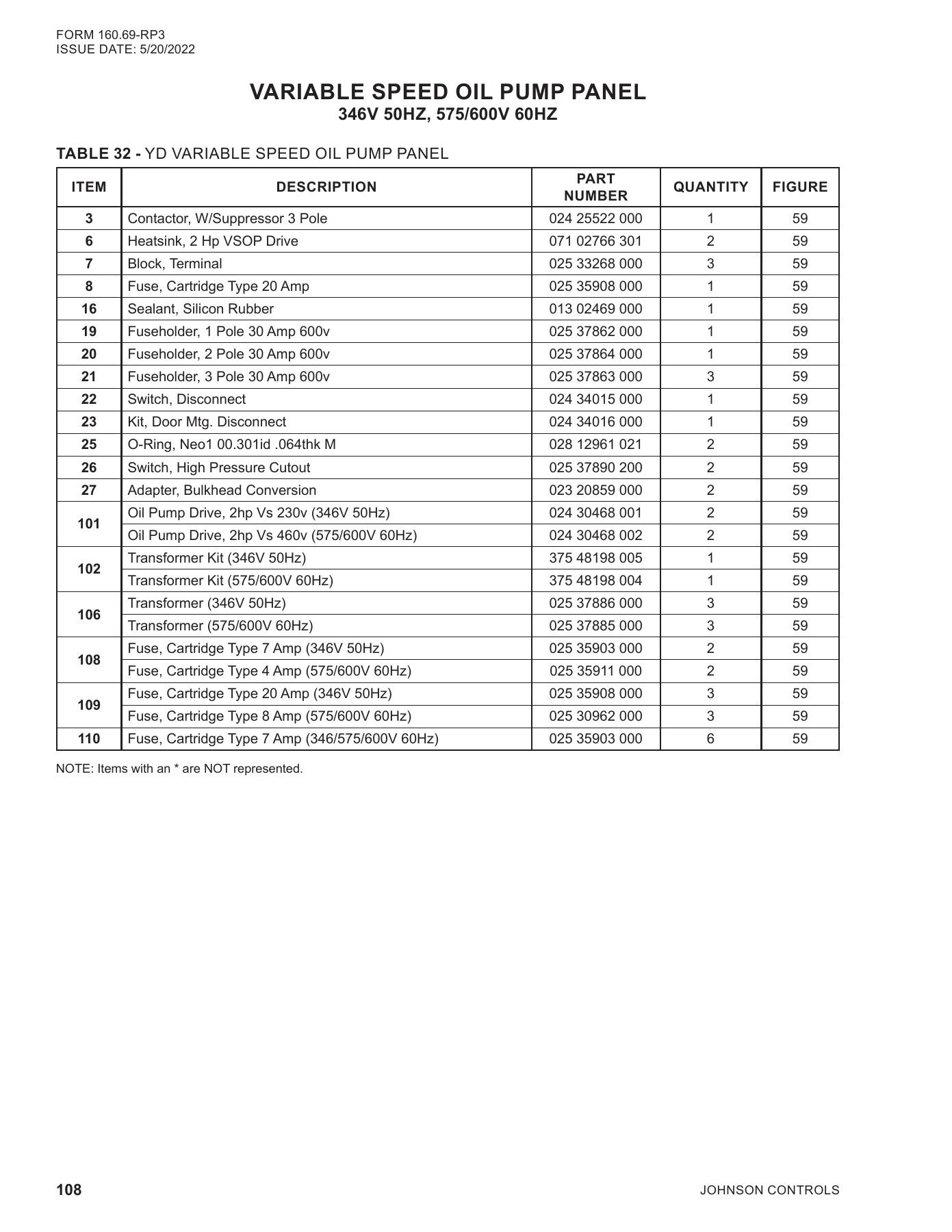

VARIABLE SPEED OIL PUMP PANEL

346V 50HZ, 575/600V 60HZ

TABLE 32 -

YD VARIABLE SPEED OIL PUMP PANEL

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY

FIGURE

3

Contactor, W/Suppressor 3 Pole

024 25522 000

1

59

6

Heatsink, 2 Hp VSOP Drive

071 02766 301

2

59

7

Block, Terminal

025 33268 000

3

59

8

Fuse, Cartridge Type 20 Amp

025 35908 000

1

59

16

Sealant, Silicon Rubber

013 02469 000

1

59

19

Fuseholder, 1 Pole 30 Amp 600v

025 37862 000

1

59

20

Fuseholder, 2 Pole 30 Amp 600v

025 37864 000

1

59

21

Fuseholder, 3 Pole 30 Amp 600v

025 37863 000

3

59

22

Switch, Disconnect

024 34015 000

1

59

23

Kit, Door Mtg. Disconnect

024 34016 000

1

59

25

O-Ring, Neo1 00.301id .064thk M

028 12961 021

2

59

26

Switch, High Pressure Cutout

025 37890 200

2

59

27

Adapter, Bulkhead Conversion

023 20859 000

2

59

101

Oil Pump Drive, 2hp Vs 230v (346V 50Hz)

024 30468 001

2

59

Oil Pump Drive, 2hp Vs 460v (575/600V 60Hz)

024 30468 002

2

59

102

Transformer Kit (346V 50Hz)

375 48198 005

1

59

Transformer Kit (575/600V 60Hz)

375 48198 004

1

59

106

Transformer (346V 50Hz)

025 37886 000

3

59

Transformer (575/600V 60Hz)

025 37885 000

3

59

108

Fuse, Cartridge Type 7 Amp (346V 50Hz)

025 35903 000

2

59

Fuse, Cartridge Type 4 Amp (575/600V 60Hz)

025 35911 000

2

59

109

Fuse, Cartridge Type 20 Amp (346V 50Hz)

025 35908 000

3

59

Fuse, Cartridge Type 8 Amp (575/600V 60Hz)

025 30962 000

3

59

110

Fuse, Cartridge Type 7 Amp (346/575/600V 60Hz)

025 35903 000

6

59

NOTE: Items with an * are NOT represented.
