TABLE 50 -
CONDENSER WITH HEAT RECOVERY COMPACT WATERBOXES 300 PSI
SHELL
CODE
1 PASS
2 PASS
3 PASS
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
BW, BX*
028-03242-000
18.5
028-09951-000
028-03242-000
3.5
18.5
028-09951-000
028-03242-000
6
18.5
BW, BX**
028-03242-000
17.5
028-09951-000
028-03242-000
3.5
17.5
028-09951-000
028-03242-000
6
17.5
IW, IX*
028-03242-000
21
028-09951-000
028-03242-000
4
21
028-09951-000
028-03242-000
7
21
IW, IX**
028-03242-000
19.5
028-09951-000
028-03242-000
4
19.5
028-09951-000
028-03242-000
7
19.5
OW, OX
O8, O9*
028-03242-000
24.5
028-09951-000
028-03242-000
4.5
24.5
028-09951-000
028-03242-000
8
24.5
OW, OX
O8, O9**
028-03242-000
22.5
028-09951-000
028-03242-000
4.5
22.5
028-09951-000
028-03242-000
8
22.5
UW, UX
U8, U9*
028-03242-000
26
028-09951-000
028-03242-000
5
26
028-09951-000
028-03242-000
8.5
26
UW, UX
U8, U9**
023-03242-000
24.5
028-09951-000
028-03242-000
4.5
24.5
028-09951-000
028-03242-000
8.5
24.5
YW, YX
Y8, Y9*
023-03242-000
37
028-09951-000
028-03242-000
7
37
028-09951-000
028-03242-000
12
37
YW, YX
Y8, Y9**
023-03242-000
33
028-09951-000
028-03242-000
6.5
33
028-09951-000
028-03242-000
12
33
NOTE:
* Cooling Only Waterbox Arrangement
**Heat Recovery Waterbox Arrangement
When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.
1-PASS
2-PASS
3-PASS

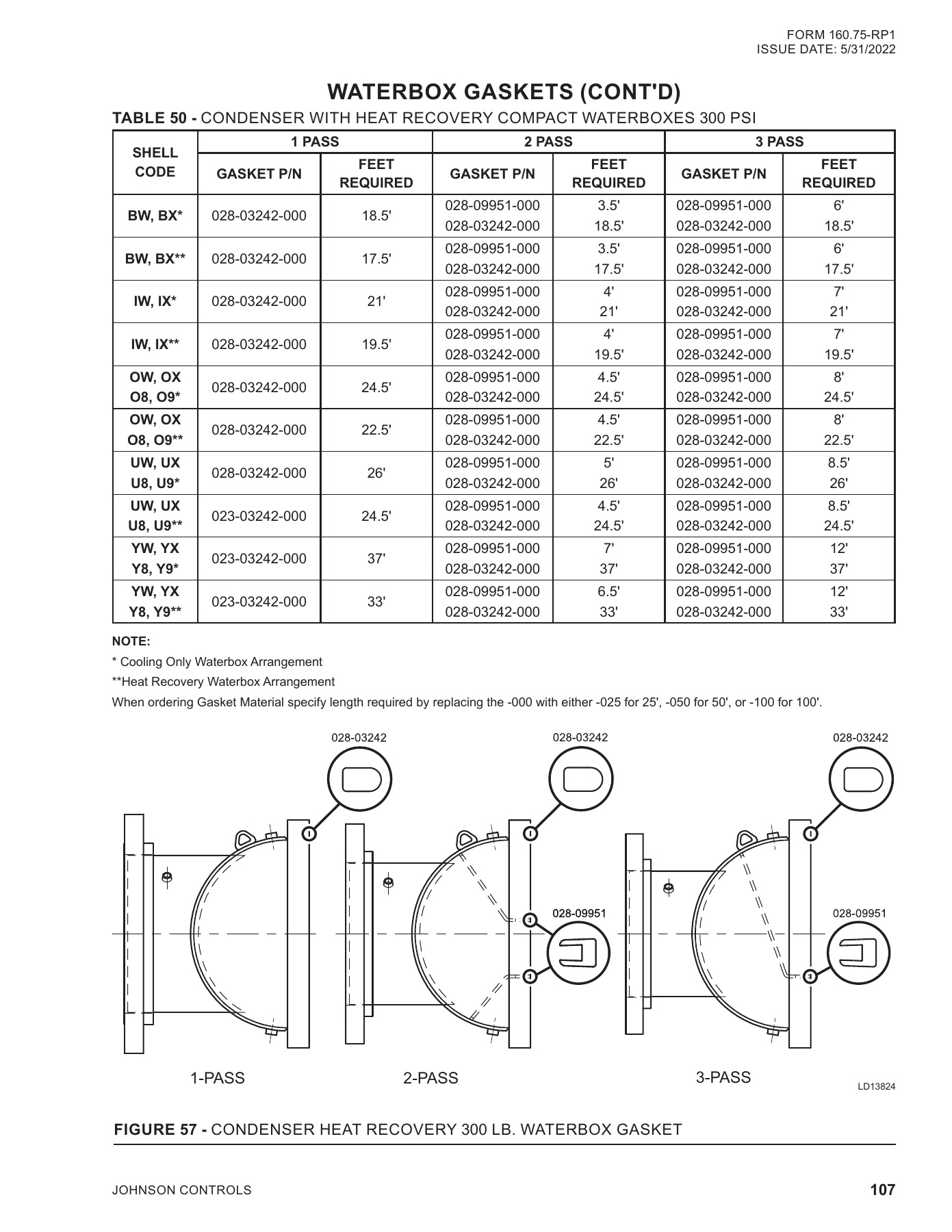

FIGURE 57 -
CONDENSER HEAT RECOVERY 300 LB. WATERBOX GASKET
LD13824
