JOHNSON CONTROLS
104
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

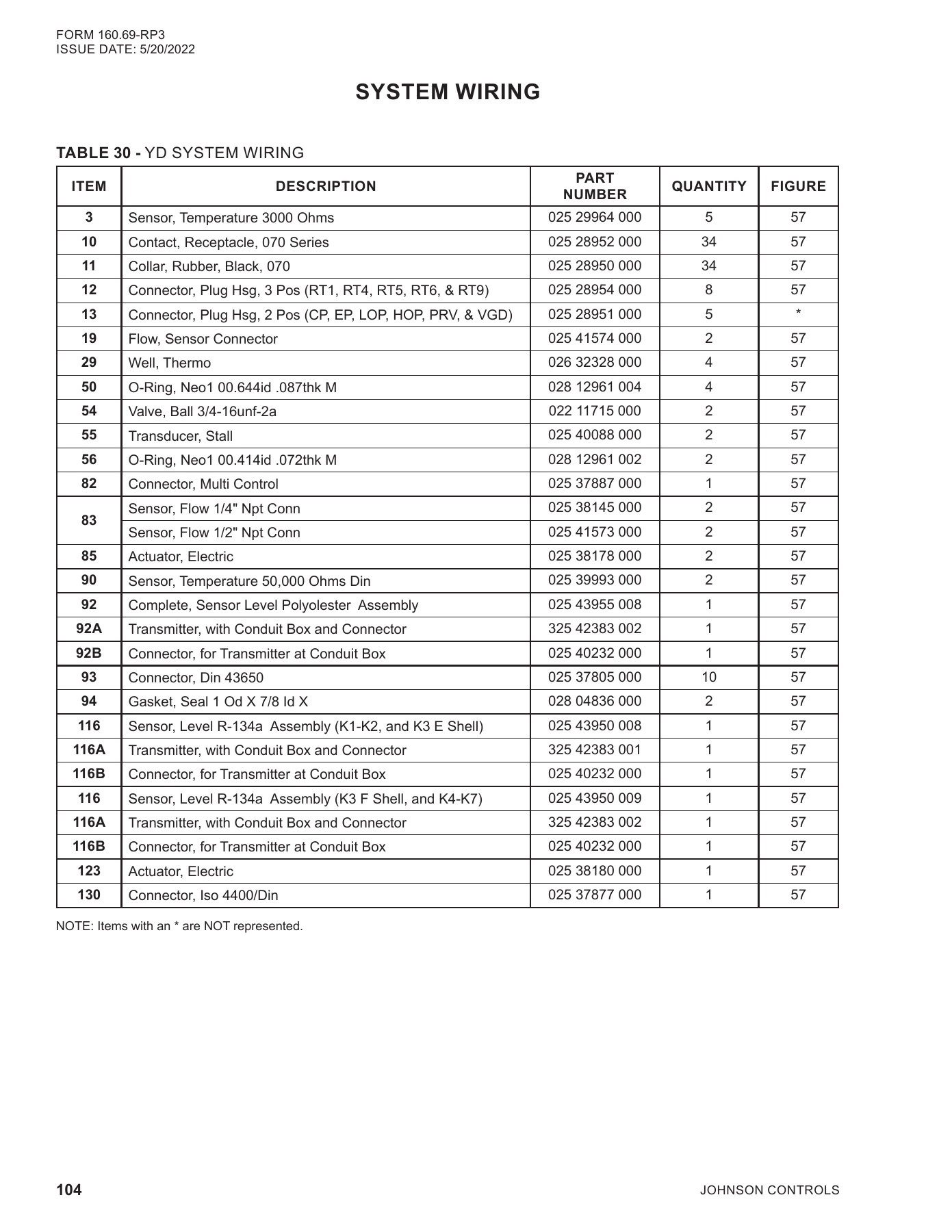

TABLE 30 -
YD SYSTEM WIRING
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
3
Sensor, Temperature 3000 Ohms
025 29964 000
5
57
10
Contact, Receptacle, 070 Series
025 28952 000
34
57
11
Collar, Rubber, Black, 070
025 28950 000
34
57
12
Connector, Plug Hsg, 3 Pos (RT1, RT4, RT5, RT6, & RT9)
025 28954 000
8
57
13
Connector, Plug Hsg, 2 Pos (CP, EP, LOP, HOP, PRV, & VGD)
025 28951 000
5
*
19
Flow, Sensor Connector
025 41574 000
2
57
29
Well, Thermo
026 32328 000
4
57
50
O-Ring, Neo1 00.644id .087thk M
028 12961 004
4
57
54
Valve, Ball 3/4-16unf-2a
022 11715 000
2
57
55
Transducer, Stall
025 40088 000
2
57
56
O-Ring, Neo1 00.414id .072thk M
028 12961 002
2
57
82
Connector, Multi Control
025 37887 000
1
57
83
Sensor, Flow 1/4" Npt Conn
025 38145 000
2
57
Sensor, Flow 1/2" Npt Conn
025 41573 000
2
57
85
Actuator, Electric
025 38178 000
2
57
90
Sensor, Temperature 50,000 Ohms Din
025 39993 000
2
57
92
Complete, Sensor Level Polyolester Assembly
025 43955 008
1
57
92A
Transmitter, with Conduit Box and Connector
325 42383 002
1
57
92B
Connector, for Transmitter at Conduit Box
025 40232 000
1
57
93
Connector, Din 43650
025 37805 000
10
57
94
Gasket, Seal 1 Od X 7/8 Id X
028 04836 000
2
57
116
Sensor, Level R-134a Assembly (K1-K2, and K3 E Shell)
025 43950 008
1
57
116A
Transmitter, with Conduit Box and Connector
325 42383 001
1
57
116B
Connector, for Transmitter at Conduit Box
025 40232 000
1
57
116
Sensor, Level R-134a Assembly (K3 F Shell, and K4-K7)
025 43950 009
1
57
116A
Transmitter, with Conduit Box and Connector
325 42383 002
1
57
116B
Connector, for Transmitter at Conduit Box
025 40232 000
1
57
123
Actuator, Electric
025 38180 000
1
57
130
Connector, Iso 4400/Din
025 37877 000
1
57
NOTE: Items with an * are NOT represented.
SYSTEM WIRING
