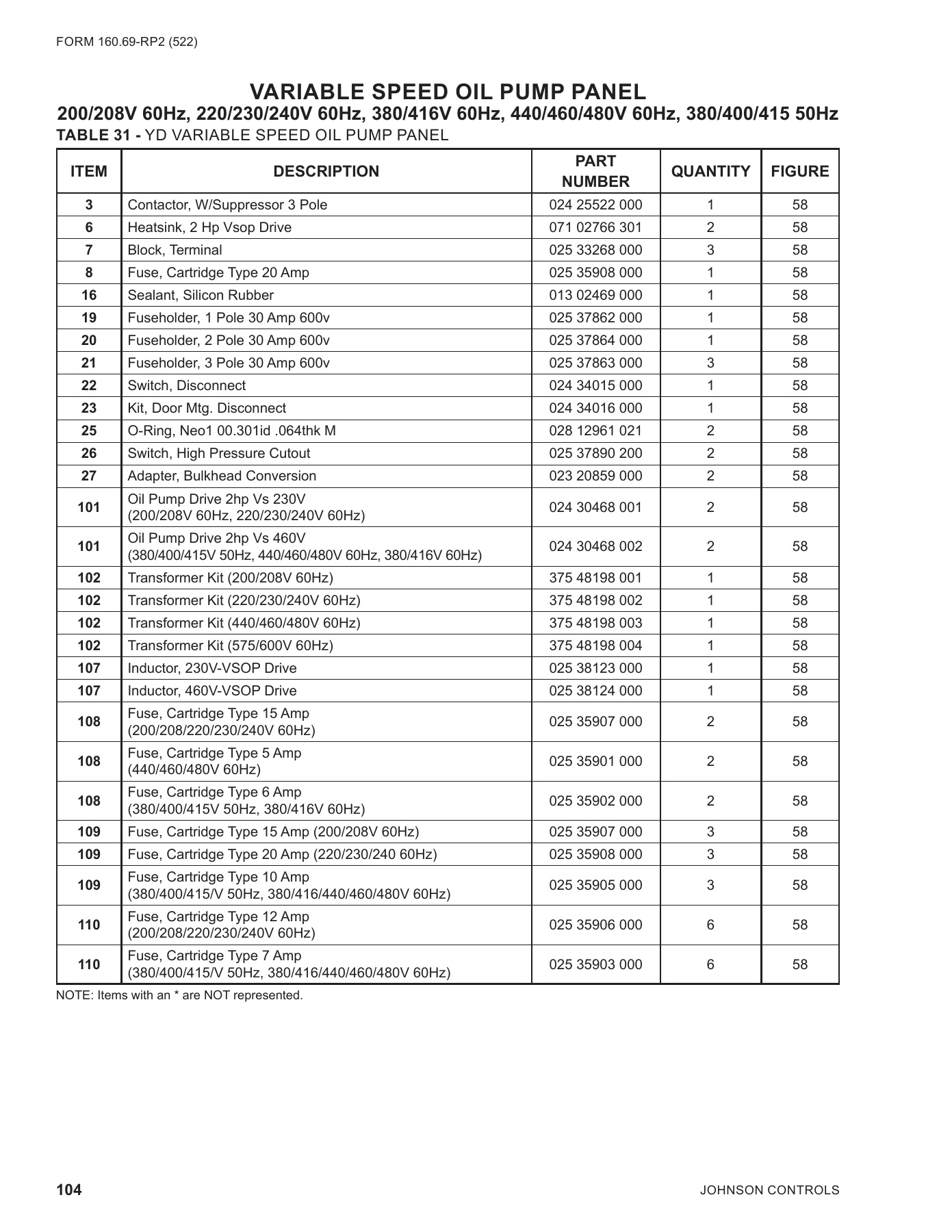

TABLE 31 -
YD VARIABLE SPEED OIL PUMP PANEL
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY FIGURE
3
Contactor, W/Suppressor 3 Pole
024 25522 000
1
58
6
Heatsink, 2 Hp Vsop Drive
071 02766 301
2
58
7
Block, Terminal
025 33268 000
3
58
8
Fuse, Cartridge Type 20 Amp
025 35908 000
1
58
16
Sealant, Silicon Rubber
013 02469 000
1
58
19
Fuseholder, 1 Pole 30 Amp 600v
025 37862 000
1
58
20
Fuseholder, 2 Pole 30 Amp 600v
025 37864 000
1
58
21
Fuseholder, 3 Pole 30 Amp 600v
025 37863 000
3
58
22
Switch, Disconnect
024 34015 000
1
58
23
Kit, Door Mtg. Disconnect
024 34016 000
1
58
25
O-Ring, Neo1 00.301id .064thk M
028 12961 021
2
58
26
Switch, High Pressure Cutout
025 37890 200
2
58
27
Adapter, Bulkhead Conversion
023 20859 000
2
58
101
Oil Pump Drive 2hp Vs 230V
(200/208V 60Hz, 220/230/240V 60Hz)
024 30468 001
2
58
101
Oil Pump Drive 2hp Vs 460V
(380/400/415V 50Hz, 440/460/480V 60Hz, 380/416V 60Hz)
024 30468 002
2
58
102
Transformer Kit (200/208V 60Hz)
375 48198 001
1
58
102
Transformer Kit (220/230/240V 60Hz)
375 48198 002
1
58
102
Transformer Kit (440/460/480V 60Hz)
375 48198 003
1
58
102
Transformer Kit (575/600V 60Hz)
375 48198 004
1
58
107
Inductor, 230V-VSOP Drive
025 38123 000
1
58
107
Inductor, 460V-VSOP Drive
025 38124 000
1
58
108
Fuse, Cartridge Type 15 Amp
(200/208/220/230/240V 60Hz)
025 35907 000
2
58
108
Fuse, Cartridge Type 5 Amp
(440/460/480V 60Hz)
025 35901 000
2
58
108
Fuse, Cartridge Type 6 Amp
(380/400/415V 50Hz, 380/416V 60Hz)
025 35902 000
2
58
109
Fuse, Cartridge Type 15 Amp (200/208V 60Hz)
025 35907 000
3
58
109
Fuse, Cartridge Type 20 Amp (220/230/240 60Hz)
025 35908 000
3
58
109
Fuse, Cartridge Type 10 Amp
(380/400/415/V 50Hz, 380/416/440/460/480V 60Hz)
025 35905 000
3
58
110
Fuse, Cartridge Type 12 Amp
(200/208/220/230/240V 60Hz)
025 35906 000
6
58
110
Fuse, Cartridge Type 7 Amp
(380/400/415/V 50Hz, 380/416/440/460/480V 60Hz)
025 35903 000
6
58
NOTE: Items with an * are NOT represented.
VARIABLE SPEED OIL PUMP PANEL
200/208V 60Hz, 220/230/240V 60Hz, 380/416V 60Hz, 440/460/480V 60Hz, 380/400/415 50Hz
