TABLE 47 (CONTD) -

EVAPORATOR WITH MARINE WATERBOXES 150 PSI (CONTD)

SHELL

CODE

1 PASS

2 PASS

3 PASS

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

RQ-RV

028-03242-000

56

028-09951-000
028-03242-000

18
56

028-09951-000
028-03242-000

24
56

R2-R7

SQ-SV

S3-S7

WP-WT

W1-W6

XQ-XS

028-03242-000

66.3

028-09951-000
028-03242-000

11.2

49.8

028-09951-000
028-03242-000

19.4
66.3

X2-X4

ZQ-ZS

Z1-Z4

NOTE:

 When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

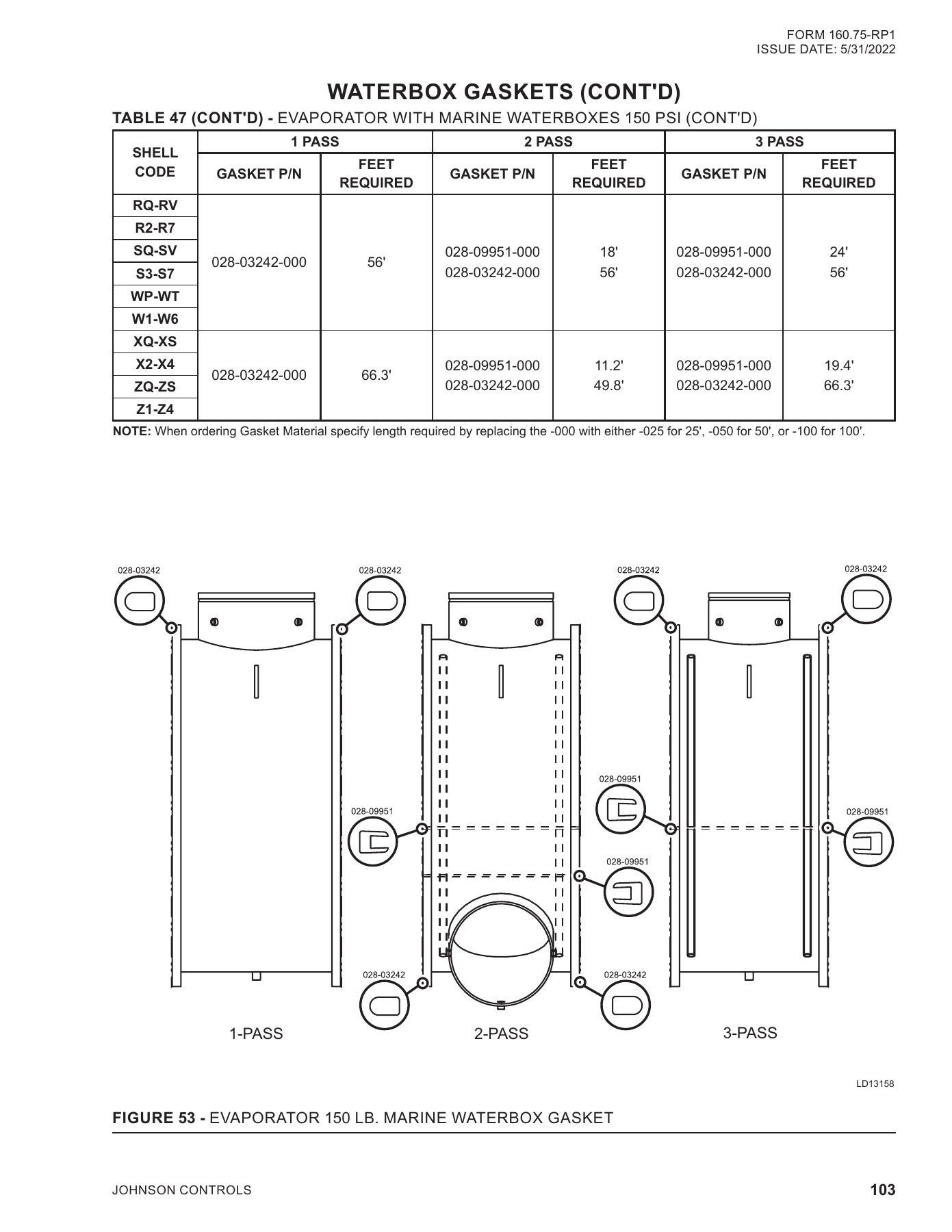

FIGURE 53 -

EVAPORATOR 150 LB. MARINE WATERBOX GASKET

LD13158

1-PASS

2-PASS

3-PASS
