TABLE 47 -
EVAPORATOR WITH MARINE WATERBOXES 150 PSI
SHELL
CODE
1 PASS
2 PASS
3 PASS
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
AP-AS
028-09951-000
27
028-09951-000
24.8
028-09951-000
35.8
CP-CS
028-09951-000
31.1
028-09951-000
27.6
028-09951-000
39
DP-DS
EP-ET
028-09951-000
35.2
028-09951-000
32.2
028-09951-000
47
FQ-FT
GQ-GS
028-03242-000
41.8
028-09951-000
028-03242-000
7.1
31.4
028-09951-000
028-03242-000
12.8
41.8
HQ-HS
JP-JS
028-03242-000
47
028-09951-000
028-03242-000
19
24
028-09951-000
028-03242-000
27
47
KP-KX
K2-K7
LQ-LS
MQ-MS
028-03242-000
52
028-09951-000
028-03242-000
8
39
028-09951-000
028-03242-000
15
52
M2-M4
NQ-NS
N2-N4
PQ-PS
028-03242-000
56
028-09951-000
028-03242-000
18
56
028-09951-000
02803242-000
18
56
P2-P4
QQ-QV
Q2-Q4
NOTE:
When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

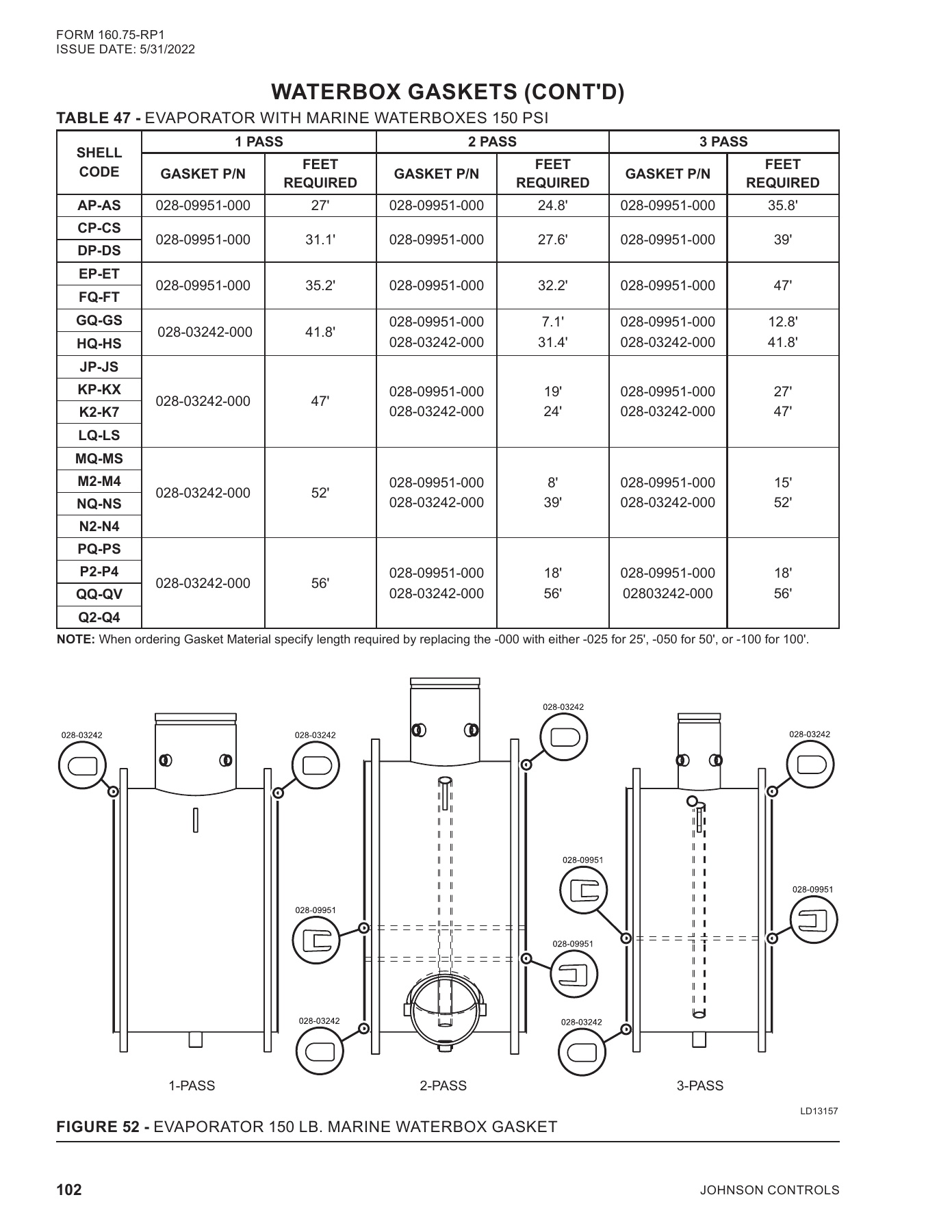

FIGURE 52 -
EVAPORATOR 150 LB. MARINE WATERBOX GASKET
LD13157
1-PASS
2-PASS
3-PASS
WATERBOX GASKETS (CONTD)
