FORM 160.69-RP2 (522)

TABLE 29 -

PRV / VGD POSITION SENSOR KIT

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY FIGURE

1

Cover, PRV Position Sensor

071 02012 002

1

56

2

Bracket, Suppport Upper PRV

371 02012 209

1

56

3

Screw, Tapping Thread Forming

021 13757 000

2

56

4

POT, 2500 Ohms 2 Watt

025 32570 000

1

56

5

Bushing, Strain Relief Straight

025 09080 000

1

56

6

Cable, PRV Sensor VSD

571 02012 005

1

56

7

Coupling, Shaft, Flexible

029 24196 000

1

56

8

Screw, Cap Hex Soc Hd #10

021 18674 000

2

56

9

Lockwasher, Hel Spg #10

032 08292 000

2

56

10

Strap, Cable T&B L4-18-9-M

025 18167 000

1

56

11

Cap, PRV Sensor

071 02012 006

1

56

12

Shaft, PRV Position Sensor

071 02012 007

1

56

13

Screw, Washer Assembly

021 18487 000

2

56

NOTE: Items with an * are NOT represented.

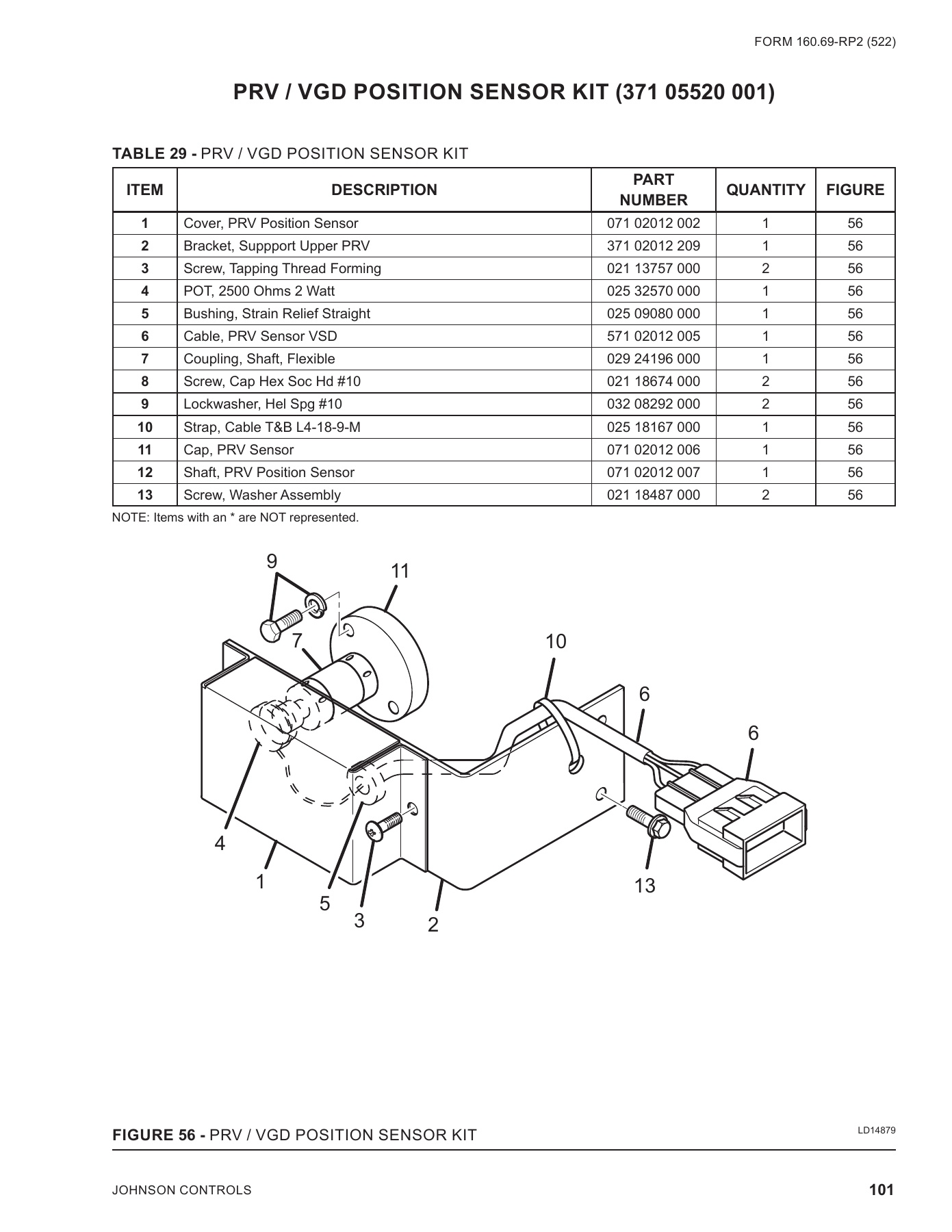

PRV / VGD POSITION SENSOR KIT (371 05520 001)

FIGURE 56 -

PRV / VGD POSITION SENSOR KIT

LD14879

6

6

13

10

11

9

7

4

1

5

3

2
