FORM 160.75-RP1

ISSUE DATE: 5/31/2022

JOHNSON CONTROLS

97

TABLE 44 (CONTD) -

EVAPORATOR WITH STANDARD COMPACT WATERBOXES 300 PSI

SHELL

CODE

1 PASS

2 PASS

3 PASS

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

RQ-RV

028-03242-000

32.5

028-09951-000
028-03242-000

5.5

32.5

028-09951-000
028-03242-000

5.5

32.5

R2-R7

SQ-SV

S3-S7

WP-WT

W1-W6

XQ-XS

028-03242-000

32.5

028-09951-000
028-03242-000

5.5

32.5

028-09951-000
028-03242-000

10

32.5

X2-X4

ZQ-ZS

Z1-Z4

NOTE:

 When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

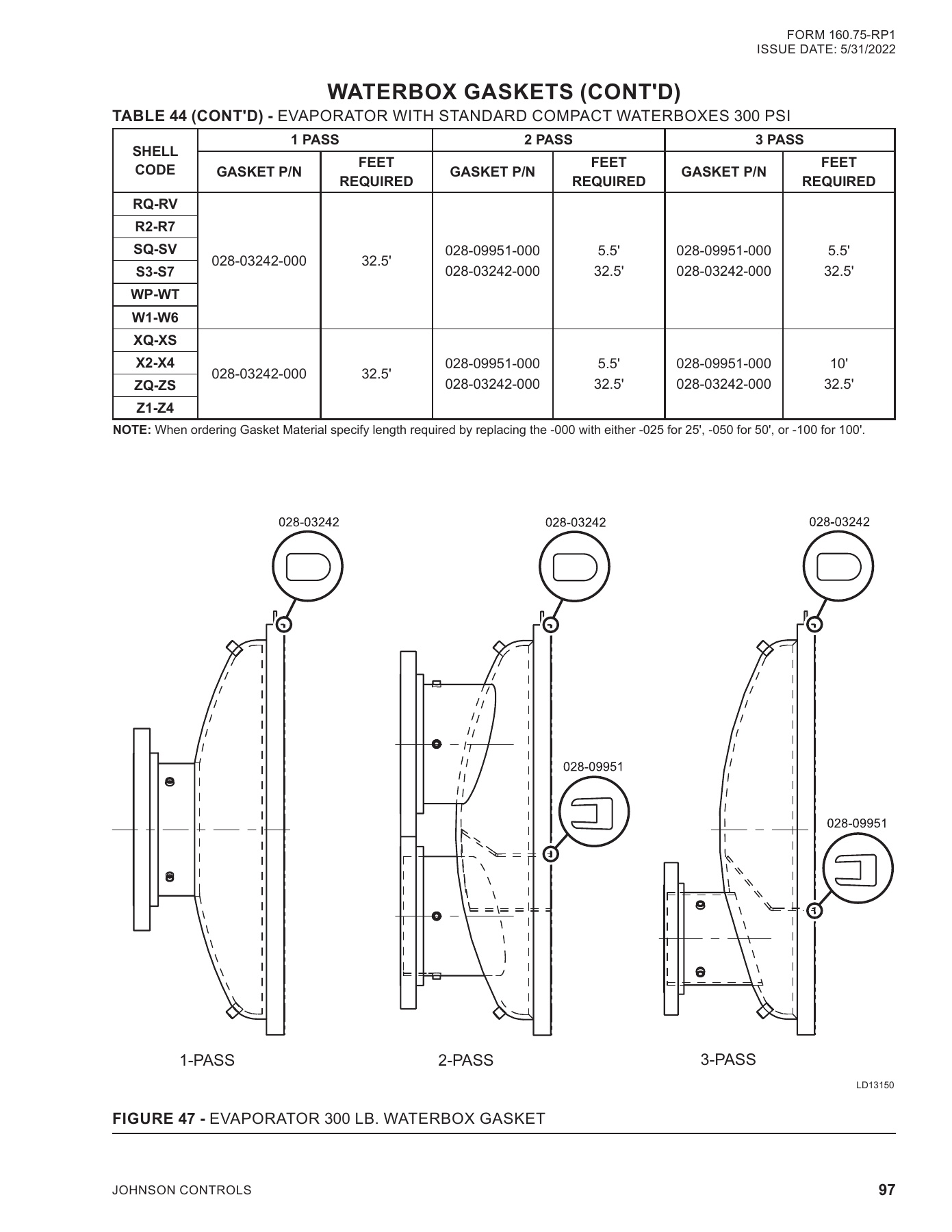

FIGURE 47 -

EVAPORATOR 300 LB. WATERBOX GASKET

LD13150

1-PASS

2-PASS

3-PASS

WATERBOX GASKETS (CONTD)
