TABLE 43 (CONTD) -

 EVAPORATOR WITH STANDARD COMPACT WATERBOXES 150 PSI

SHELL

CODE

1 PASS

2 PASS

3 PASS

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

QT-QV

028-03242-000

26

028-09951-000
028-03242-000

6

26

028-09951-000
028-03242-000

8.5

26

RQ-RV

028-03242-000

15.9

028-09951-000
028-03242-000

5.5

15.9

028-09951-000
028-03242-000

5.5

15.9

R2-R7

SQ-SV

S3-S7

WP-WT

W1-W6

XQ-XS

028-03242-000

15.9

028-09951-000
028-03242-000

5.5

15.9

028-09951-000
028-03242-000

5.5

15.9

X2-X4

ZQ-ZS

Z1-Z4

NOTE:

 When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

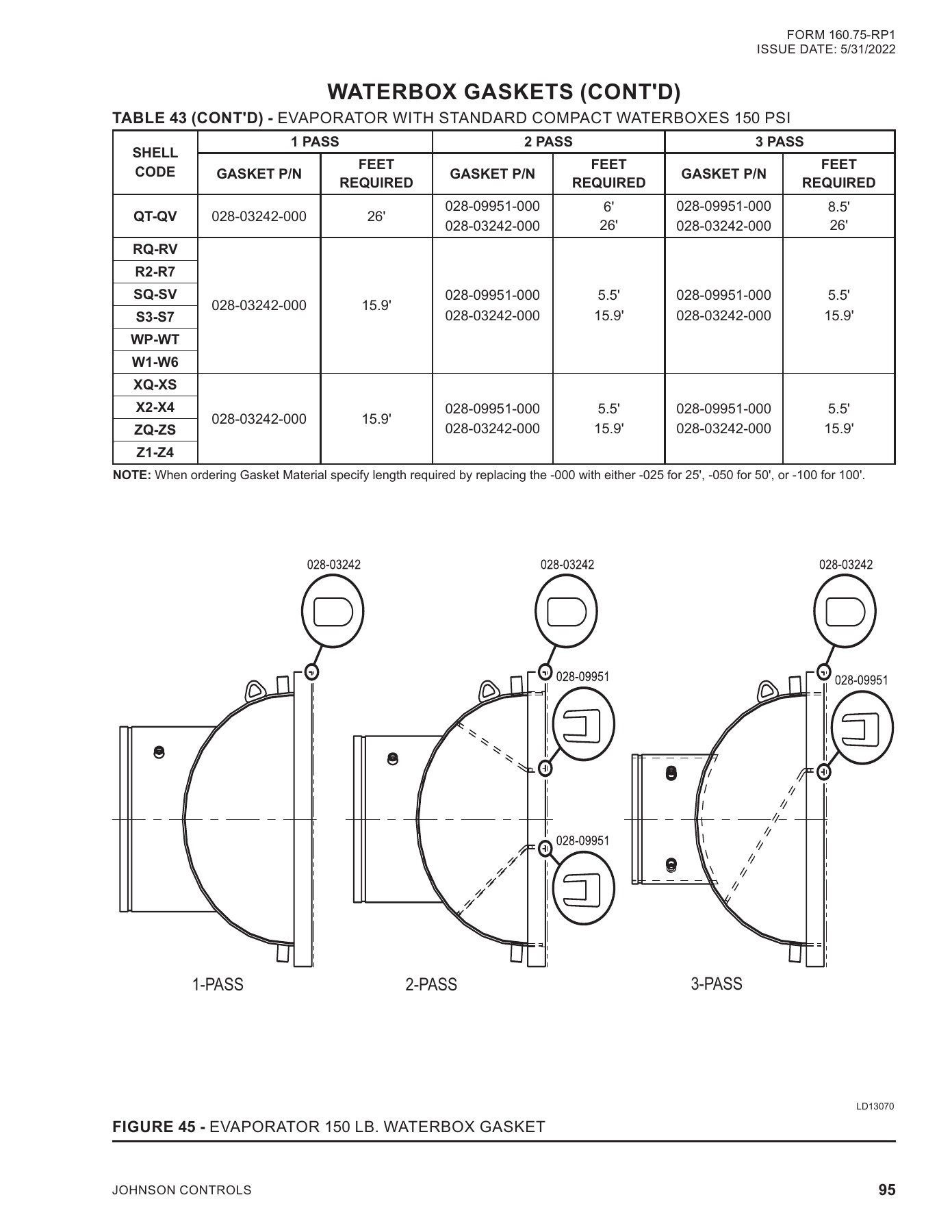

FIGURE 45 -

EVAPORATOR 150 LB. WATERBOX GASKET

LD13070

1-PASS

2-PASS

3-PASS

WATERBOX GASKETS (CONTD)
