TABLE 43 -
EVAPORATOR WITH STANDARD COMPACT WATERBOXES 150 PSI
SHELL
CODE
1 PASS
2 PASS
3 PASS
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
AP-AS
028-09951-000
13.5
028-09951-000
15.5
028-09951-000
17.5
CP-CS
028-09951-000
15.6
028-09951-000
18.1
028-09951-000
20.1
DP-DS
EP-ET
028-09951-000
17.6
028-09951-000
20.6
028-09951-000
22.8
FQ-FS
GQ-GS
028-09951-000
20.6
028-09951-000
24.4
028-09951-000
27.1
HQ-HS
JP-JS
028-09951-000
23.3
028-09951-000
31
028-09951-000
30
KP-KX
LQ-LS
K2-K7
-
-
-
-
028-09951-000
30
MQ-MS
028-03242-000
27
028-09951-000
028-03242-000
5.5
27
028-09951-000
028-03242-000
5.5
27
M2-M4
NQ-NS
N2-N4
PQ-PS
028-03242-000
27
028-09951-000
028-03242-000
5.5
27
028-09951-000
028-03242-000
5.5
27
P2-P4
QQ-QS
Q2-Q4
NOTE:
When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

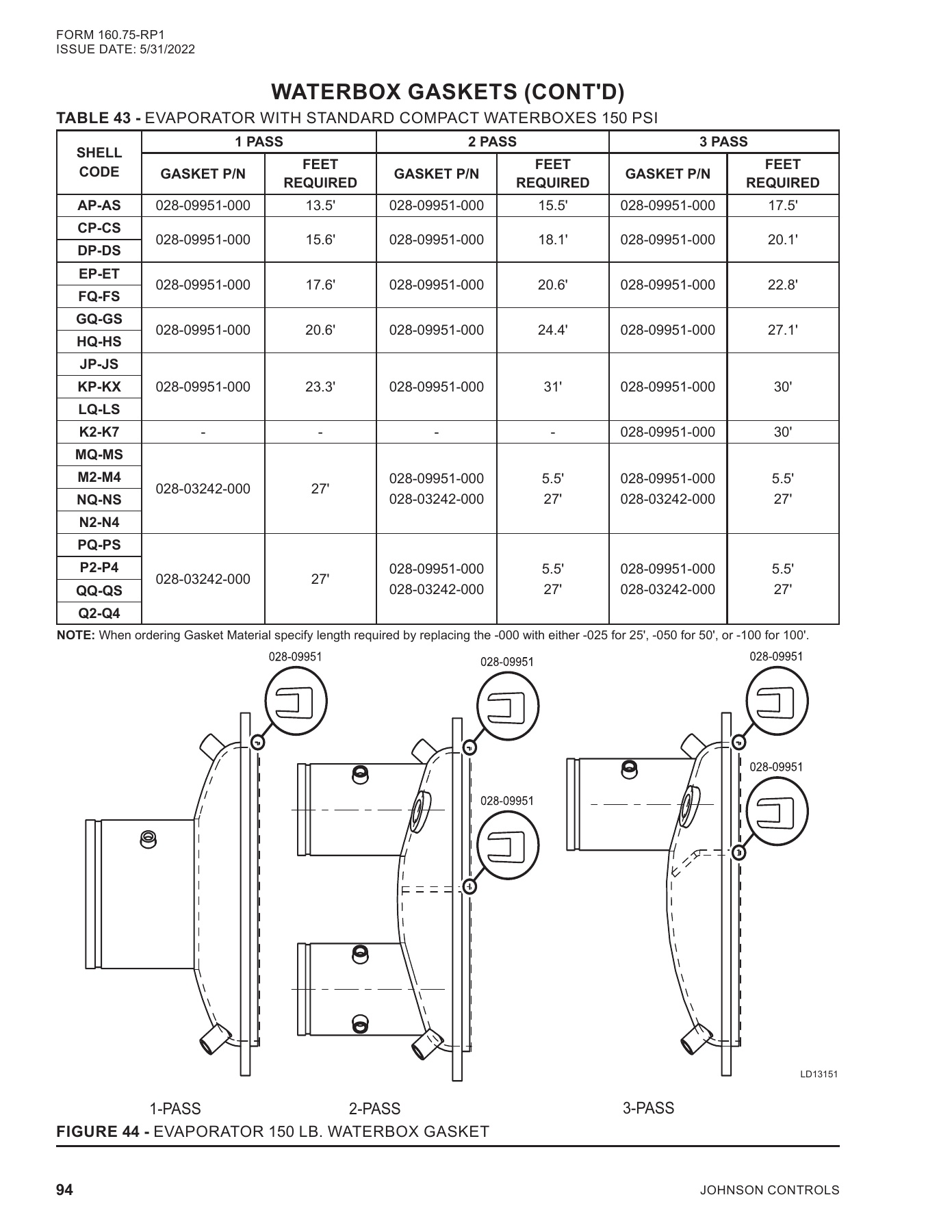

FIGURE 44 -
EVAPORATOR 150 LB. WATERBOX GASKET
LD13151
1-PASS
2-PASS
3-PASS
WATERBOX GASKETS (CONTD)
