FORM 160.75-RP1

ISSUE DATE: 5/31/2022

JOHNSON CONTROLS

93

SHELL

CODE

1 PASS

2 PASS

3 PASS

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

GASKET P/N

FEET

REQUIRED

RQ-RS

028-03242-000

25.8

028-09951-000
028-03242-000

4

25.8

028-09951-000
028-03242-000

7.9

25.8

R2-R4

SQ-SS

S2-S4

TP-TS

028-03242-000

28.1

028-09951-000
028-03242-000

4.4

28.1

028-09951-000
028-03242-000

8.5

28.1

T2-T5

VP-VS

V2-V5

WQ-WS

W1-W4

ZQ-ZS

028-03242-000

30

028-09951-000
028-03242-000

5.1

30

028-09951-000
028-03242-000

5.1

30

Z1-Z4

NOTE:

 When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

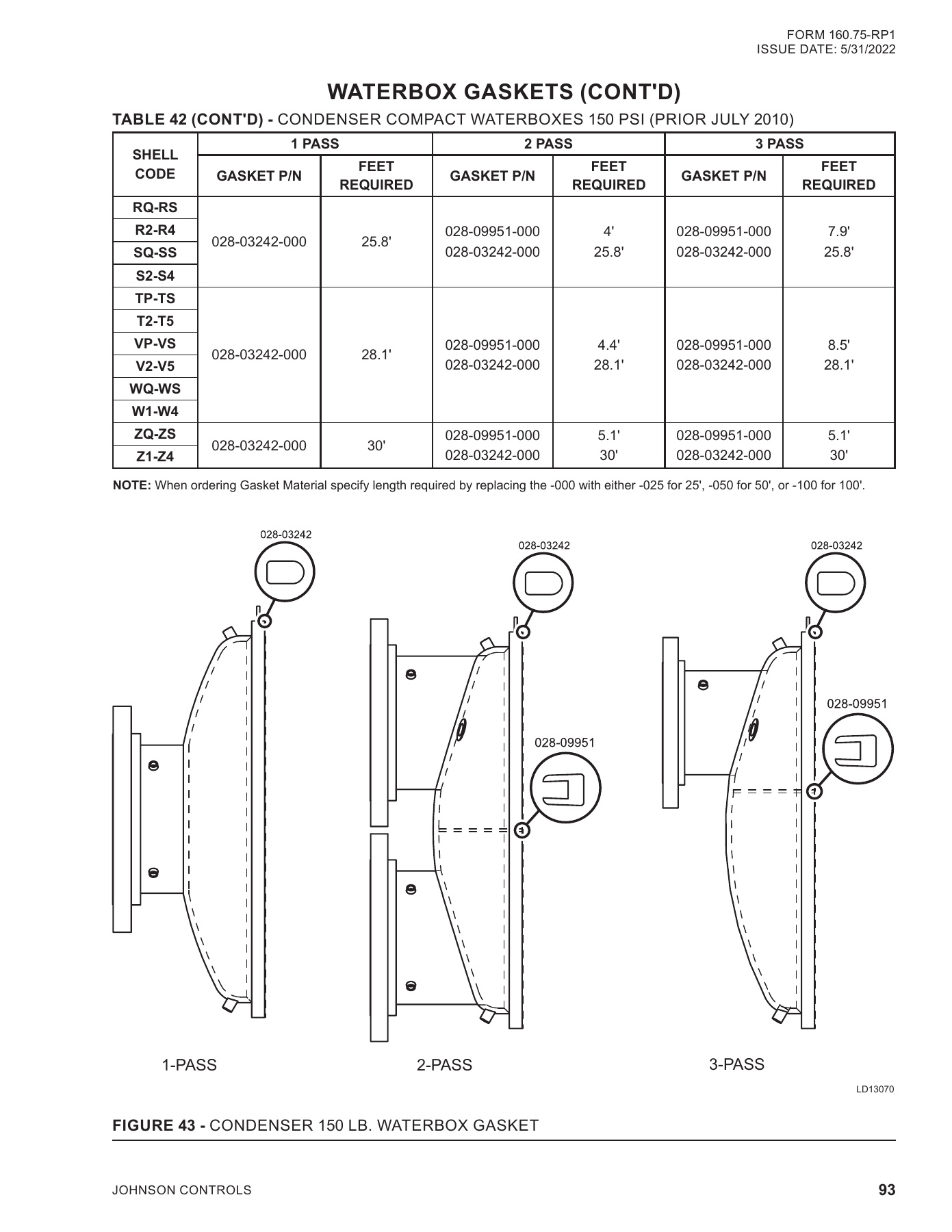

FIGURE 43 -

CONDENSER 150 LB. WATERBOX GASKET

LD13070

1-PASS

2-PASS

3-PASS

TABLE 42 (CONTD) -

CONDENSER COMPACT WATERBOXES 150 PSI (PRIOR JULY 2010)

WATERBOX GASKETS (CONTD)
