JOHNSON CONTROLS
92
FORM 160.75-RP1
ISSUE DATE: 5/31/2022
WATERBOX GASKETS (CONTD)
TABLE 42 -
CONDENSER COMPACT WATERBOXES 150 PSI (PRIOR JULY 2010)
SHELL
CODE
1 PASS
2 PASS
3 PASS
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
GASKET P/N
FEET
REQUIRED
AP-AS
028-03242-000
11.4
028-09951-000
028-03242-000
1.8
11.4
028-09951-000
028-03242-000
1.8
11.4
CP-CS
028-03242-000
13.5
028-09951-000
028-03242-000
2.1
13.5
028-09951-000
028-03242-000
4.1
13.5
DP-DS
EP-EX
028-03242-000
15.8
028-09951-000
028-03242-000
2.5
15.8
028-09951-000
028-03242-000
4.8
15.8
FQ-FX
JP-JS
028-03242-000
17.8
028-09951-000
028-03242-000
2.8
17.8
028-09951-000
028-03242-000
5.4
17.8
KP-KS
LQ-LS
MP-MS
028-03242-000
21.5
028-09951-000
028-03242-000
4
21.5
028-09951-000
028-03242-000
7
21.5
M2-M4
NP-NS
N2-N4
PQ-PS
028-03242-000
24
028-09951-000
028-03242-000
4
24
028-09951-000
028-03242-000
8
24
P2-P4
QQ-QS
Q2-Q4
NOTE:
When ordering Gasket Material specify length required by replacing the -000 with either -025 for 25, -050 for 50, or -100 for 100.

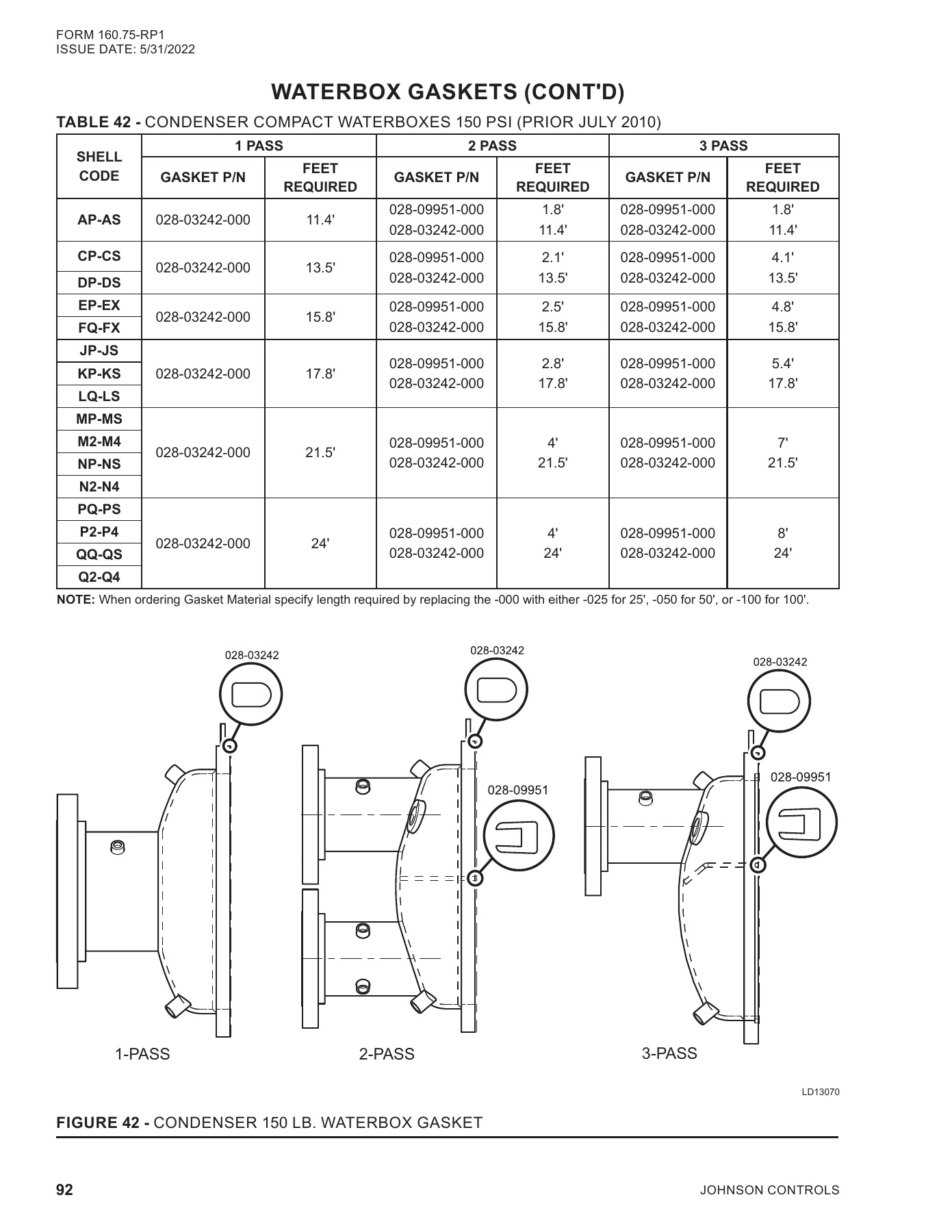

FIGURE 42 -
CONDENSER 150 LB. WATERBOX GASKET
LD13070
1-PASS
2-PASS
3-PASS
