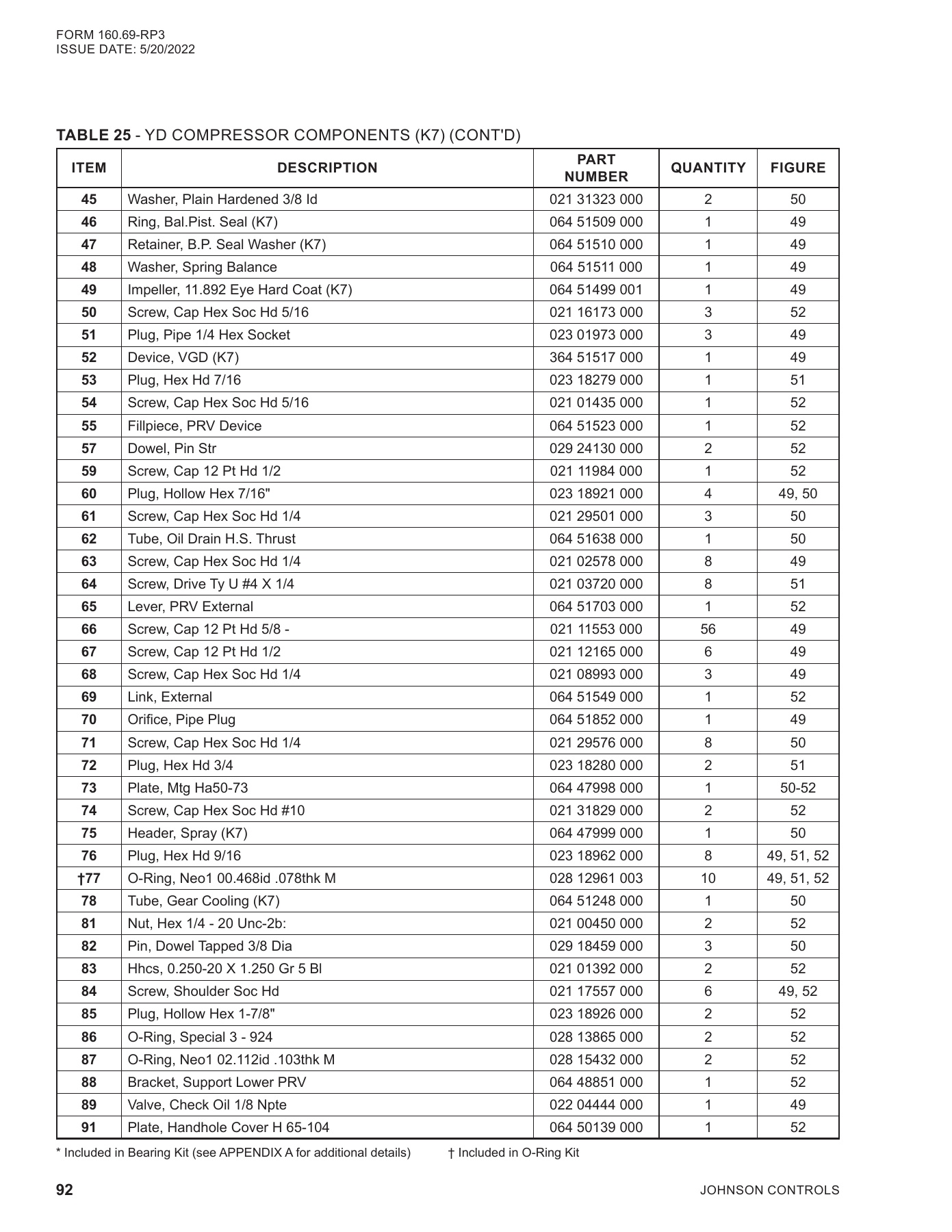

TABLE 25
- YD COMPRESSOR COMPONENTS (K7) (CONTD)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
45
Washer, Plain Hardened 3/8 Id
021 31323 000
2
50
46
Ring, Bal.Pist. Seal (K7)
064 51509 000
1
49
47
Retainer, B.P. Seal Washer (K7)
064 51510 000
1
49
48
Washer, Spring Balance
064 51511 000
1
49
49
Impeller, 11.892 Eye Hard Coat (K7)
064 51499 001
1
49
50
Screw, Cap Hex Soc Hd 5/16
021 16173 000
3
52
51
Plug, Pipe 1/4 Hex Socket
023 01973 000
3
49
52
Device, VGD (K7)
364 51517 000
1
49
53
Plug, Hex Hd 7/16
023 18279 000
1
51
54
Screw, Cap Hex Soc Hd 5/16
021 01435 000
1
52
55
Fillpiece, PRV Device
064 51523 000
1
52
57
Dowel, Pin Str
029 24130 000
2
52
59
Screw, Cap 12 Pt Hd 1/2
021 11984 000
1
52
60
Plug, Hollow Hex 7/16"
023 18921 000
4
49, 50
61
Screw, Cap Hex Soc Hd 1/4
021 29501 000
3
50
62
Tube, Oil Drain H.S. Thrust
064 51638 000
1
50
63
Screw, Cap Hex Soc Hd 1/4
021 02578 000
8
49
64
Screw, Drive Ty U #4 X 1/4
021 03720 000
8
51
65
Lever, PRV External
064 51703 000
1
52
66
Screw, Cap 12 Pt Hd 5/8 -
021 11553 000
56
49
67
Screw, Cap 12 Pt Hd 1/2
021 12165 000
6
49
68
Screw, Cap Hex Soc Hd 1/4
021 08993 000
3
49
69
Link, External
064 51549 000
1
52
70
Orifice, Pipe Plug
064 51852 000
1
49
71
Screw, Cap Hex Soc Hd 1/4
021 29576 000
8
50
72
Plug, Hex Hd 3/4
023 18280 000
2
51
73
Plate, Mtg Ha50-73
064 47998 000
1
50-52
74
Screw, Cap Hex Soc Hd #10
021 31829 000
2
52
75
Header, Spray (K7)
064 47999 000
1
50
76
Plug, Hex Hd 9/16
023 18962 000
8
49, 51, 52
†77
O-Ring, Neo1 00.468id .078thk M
028 12961 003
10
49, 51, 52
78
Tube, Gear Cooling (K7)
064 51248 000
1
50
81
Nut, Hex 1/4 - 20 Unc-2b:
021 00450 000
2
52
82
Pin, Dowel Tapped 3/8 Dia
029 18459 000
3
50
83
Hhcs, 0.250-20 X 1.250 Gr 5 Bl
021 01392 000
2
52
84
Screw, Shoulder Soc Hd
021 17557 000
6
49, 52
85
Plug, Hollow Hex 1-7/8"
023 18926 000
2
52
86
O-Ring, Special 3 - 924
028 13865 000
2
52
87
O-Ring, Neo1 02.112id .103thk M
028 15432 000
2
52
88
Bracket, Support Lower PRV
064 48851 000
1
52
89
Valve, Check Oil 1/8 Npte
022 04444 000
1
49
91
Plate, Handhole Cover H 65-104
064 50139 000
1
52
* Included in Bearing Kit (see APPENDIX A for additional details)
† Included in O-Ring Kit
