FORM 160.69-RP2 (522)

JOHNSON CONTROLS

92

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY

FIGURE

144

Screw, Cap Hex Soc Hd 5/16

021 01447 000

1

52

145

Screw, Cap Hex Soc Hd 5/16

021 12637 000

1

52

146

Nut, Flare Hydraulic 1/4 Od

023 09670 000

1

51

147

Sleeve, Flare Hydraulic 1/4 Od

023 10000 000

1

51

148

Spacer, .75lg X .33 Id X .63 Od

064 51538 000

1

52

149

Spacer, Flanged PRV & VGD

064 51854 000

2

52

150

O-Ring, Hnbr 00.239id .064thk M

028 15846 000

4

49, 51

193

Device, PRV (K7)

364 51515 000

1

49

300a

Support, Rotor with Bearing Housing (K7)

364 51498 000

1

*

300b

Scroll, Rotor (K7)

064 52419 000

1

*

300c

Plate, Diffuser (K7)

064 51504 000

1

*

301

Plate, Nozzle Base without VGD(K7)

064 51505 000

1

*

-

Bearing Kit, Compressor (K7)

464 51830 000

-

*

-

O-Ring Kit, Compressor (K7)

464 51832 000

-

*

-

Tool Kit, Compressor (K7)

364K51665 001

-

*

* Included in Bearing Kit (see APPENDIX A for additional details)

† Included in O-Ring Kit

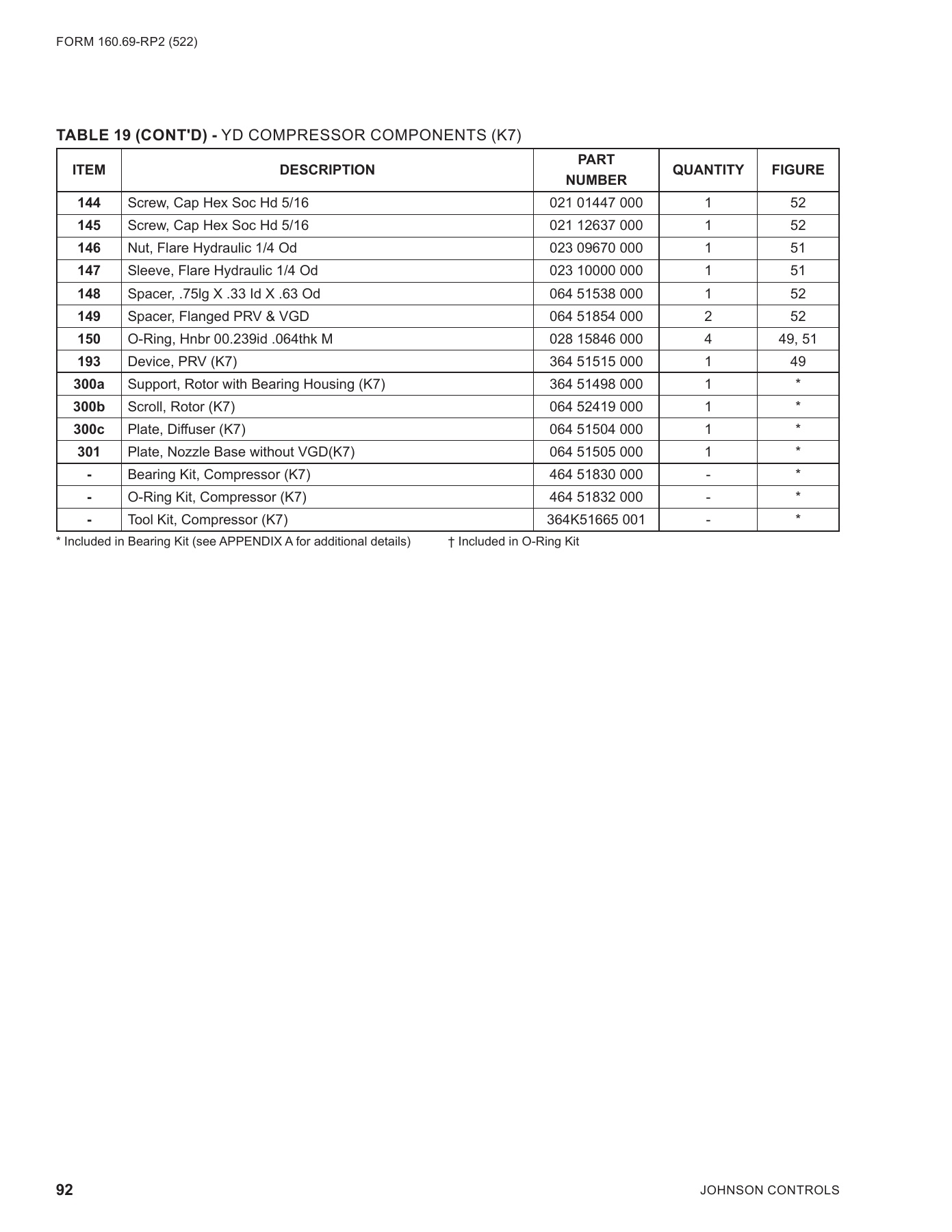

TABLE 19 (CONTD) -

 YD COMPRESSOR COMPONENTS (K7)

Catalog 160-69-RP2 - Page 0091

York
YORK
YORK-YORK-0091-2793
