JOHNSON CONTROLS
89
FORM 160.69-RP2 (522)

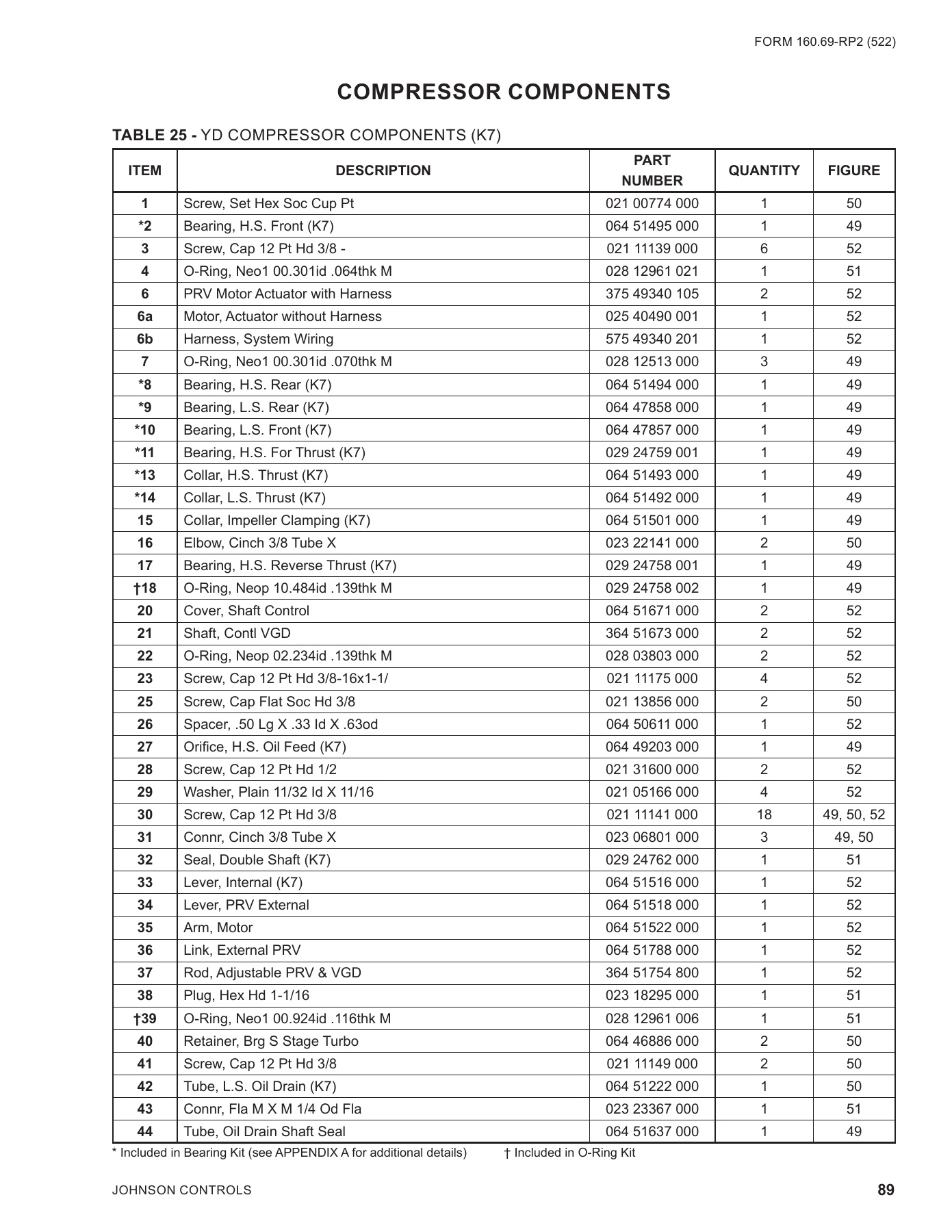

TABLE 25 -
YD COMPRESSOR COMPONENTS (K7)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
1
Screw, Set Hex Soc Cup Pt
021 00774 000
1
50
*2
Bearing, H.S. Front (K7)
064 51495 000
1
49
3
Screw, Cap 12 Pt Hd 3/8 -
021 11139 000
6
52
4
O-Ring, Neo1 00.301id .064thk M
028 12961 021
1
51
6
PRV Motor Actuator with Harness
375 49340 105
2
52
6a
Motor, Actuator without Harness
025 40490 001
1
52
6b
Harness, System Wiring
575 49340 201
1
52
7
O-Ring, Neo1 00.301id .070thk M
028 12513 000
3
49
*8
Bearing, H.S. Rear (K7)
064 51494 000
1
49
*9
Bearing, L.S. Rear (K7)
064 47858 000
1
49
*10
Bearing, L.S. Front (K7)
064 47857 000
1
49
*11
Bearing, H.S. For Thrust (K7)
029 24759 001
1
49
*13
Collar, H.S. Thrust (K7)
064 51493 000
1
49
*14
Collar, L.S. Thrust (K7)
064 51492 000
1
49
15
Collar, Impeller Clamping (K7)
064 51501 000
1
49
16
Elbow, Cinch 3/8 Tube X
023 22141 000
2
50
17
Bearing, H.S. Reverse Thrust (K7)
029 24758 001
1
49
†18
O-Ring, Neop 10.484id .139thk M
029 24758 002
1
49
20
Cover, Shaft Control
064 51671 000
2
52
21
Shaft, Contl VGD
364 51673 000
2
52
22
O-Ring, Neop 02.234id .139thk M
028 03803 000
2
52
23
Screw, Cap 12 Pt Hd 3/8-16x1-1/
021 11175 000
4
52
25
Screw, Cap Flat Soc Hd 3/8
021 13856 000
2
50
26
Spacer, .50 Lg X .33 Id X .63od
064 50611 000
1
52
27
Orifice, H.S. Oil Feed (K7)
064 49203 000
1
49
28
Screw, Cap 12 Pt Hd 1/2
021 31600 000
2
52
29
Washer, Plain 11/32 Id X 11/16
021 05166 000
4
52
30
Screw, Cap 12 Pt Hd 3/8
021 11141 000
18
49, 50, 52
31
Connr, Cinch 3/8 Tube X
023 06801 000
3
49, 50
32
Seal, Double Shaft (K7)
029 24762 000
1
51
33
Lever, Internal (K7)
064 51516 000
1
52
34
Lever, PRV External
064 51518 000
1
52
35
Arm, Motor
064 51522 000
1
52
36
Link, External PRV
064 51788 000
1
52
37
Rod, Adjustable PRV & VGD
364 51754 800
1
52
38
Plug, Hex Hd 1-1/16
023 18295 000
1
51
†39
O-Ring, Neo1 00.924id .116thk M
028 12961 006
1
51
40
Retainer, Brg S Stage Turbo
064 46886 000
2
50
41
Screw, Cap 12 Pt Hd 3/8
021 11149 000
2
50
42
Tube, L.S. Oil Drain (K7)
064 51222 000
1
50
43
Connr, Fla M X M 1/4 Od Fla
023 23367 000
1
51
44
Tube, Oil Drain Shaft Seal
064 51637 000
1
49
COMPRESSOR COMPONENTS
* Included in Bearing Kit (see APPENDIX A for additional details)
† Included in O-Ring Kit
