JOHNSON CONTROLS

88

FORM 160.69-RP3

ISSUE DATE: 5/20/2022

TABLE 23 -

PRE-ROTATIONAL DEVICE (K3/K4)

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY

FIGURE

-

Pre-Rotational Device Assembly (K3)

364 51772 000

1

-

-

Pre-Rotational Device Assembly (K4)

364 51772 001

1

-

1

Ring, Vane Driving

064 51771 000

1

47

2

Vane, Pre-Rotation

064 51769 000

9

47

3

Arm, Pre-Rotation Vane

064 47508 000

9

47

4

Spacer, PRV Arm

064 51652 000

9

47

5

Washer, Special Prv Tj-Cb

064 47516 000

9

47

6

Washer, Plain Lt 17/64 Id 1/2

021 11973 000

18

47

7

Stud, Ball 1/4 -28 Unf W/

029 15924 000

9

47

8

Screw, Cap 12 Pt Hd 1/2

021 11515 000

9

47

9

Nut, Self Lock 1/4 - 28unf

021 12943 000

9

47

11

Housing, PRV K3

064 51770 000

1

47

Housing, PRV K4

064 51807 000

1

47

12

Bearing, Ball Deep Groove

029 25085 000

18

47

13

Spacer, PRV Bearing

064 51646 000

9

47

14

Spring, Overlap Type Wave

029 25086 000

18

47

NOTE: Items with an * are NOT represented.

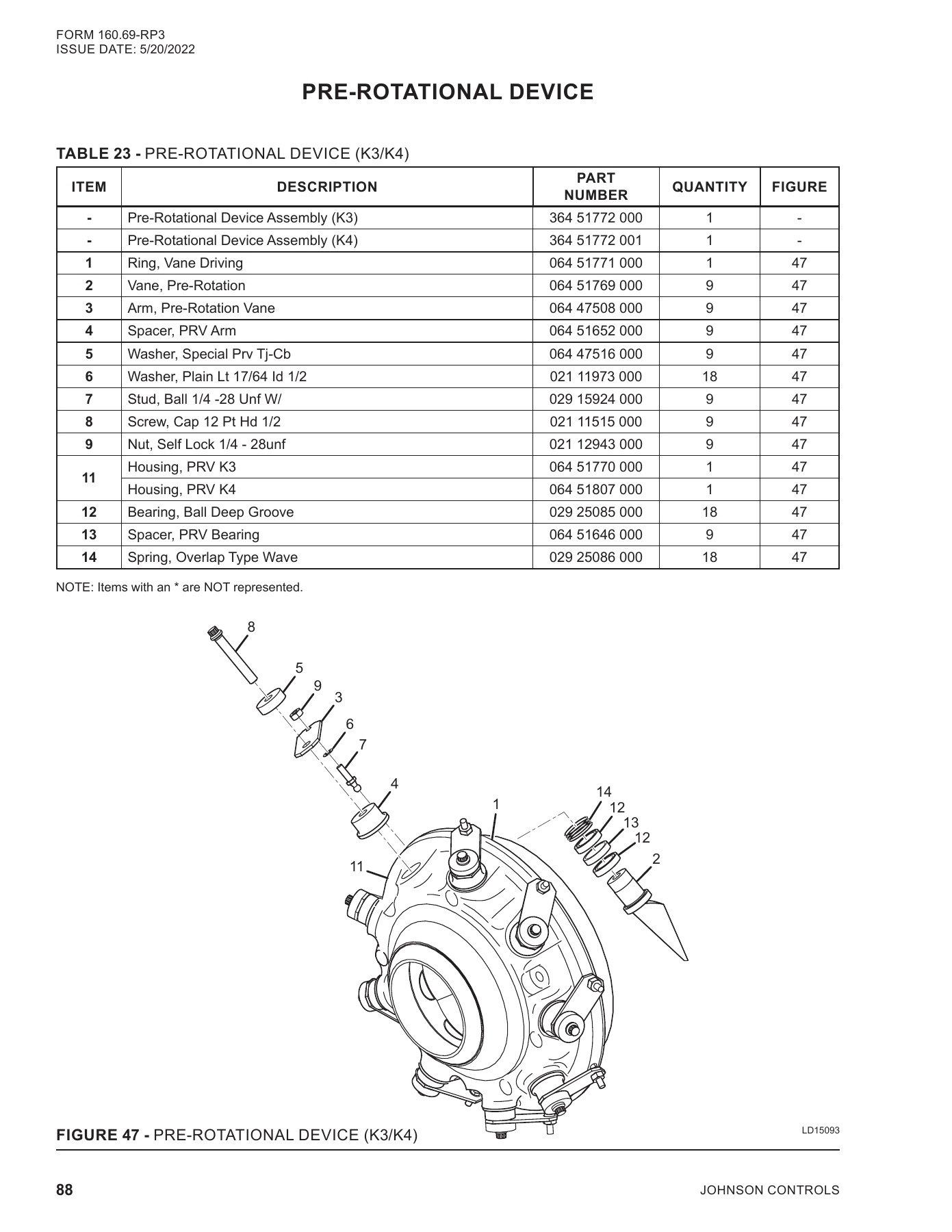

FIGURE 47 -

PRE-ROTATIONAL DEVICE (K3/K4)

LD15093

8

5

9

3

6

7

4

11

1

2

14

12

12

13

PRE-ROTATIONAL DEVICE

Catalog 160-69-RP3 - Page 0087
