ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
85
Screw, Cap 12 Pt Hd 3/8
021 18808 000
3
44
86
Screw, Cap 12 Pt Hd 3/8
021 18788 000
4
43
87
Screw, Cap 12 Pt Hd 1/2
021 11926 000
4
46
88
Screw, Cap 12 Pt Hd 1/2
021 11525 000
2
46
89
Screw, Cap 12 Pt Hd 1/2
021 12165 000
6
43
90
Screw, Cap 12 Pt Hd 1/2
021 31600 000
2
46
91
Hhcs, 0.250-20 X 1.500 Gr 5 Bl
021 13223 000
2
46
93
Screw, Cap Flat Soc Hd 3/8
021 13856 000
2
44
94
Screw, Set Hex Soc Cup Pt
021 00774 000
1
44
†95
O-Ring, Neo1 00.468id .078thk M
028 12961 003
11
43, 45, 46
†96
O-Ring, Neo1 00.924id .116thk M
028 12961 006
1
45
†97
O-Ring, Neo1 00.301id .070thk M
028 12513 000
3
43
†98
O-Ring, Neo1 00.755id .097thk M
028 12961 005
2
46
†99
O-Ring, Neo1 27.560id .139thk (K3)
028 15565 000
1
43
†99
O-Ring, Neo1 31.174id .139thk (K4)
028 15072 000
1
43
†100
O-Ring, Hnbr 40.690id .139thk S
028 15444 000
1
43
†101
O-Ring, Hnbr 44.050id .275thk M
028 15443 000
1
43
†102
O-Ring, Neo1 02.112id .103thk M
028 15432 000
2
46
†103
O-Ring, Hnbr 06.737id .103thk M
028 15446 000
1
43
†104
O-Ring, Neo1 01.109id .139thk M
028 12200 000
4
46
†105
O-Ring, Neop 02.234id .139thk M
028 03803 000
2
46
†106
O-Ring, Neop 05.609id .139thk M
028 12258 000
1
43
†107
O-Ring, Neo1 08.234id .139thk M
028 15078 000
1
46
†108
O-Ring, Neop 10.484id .139thk M
028 12226 000
1
43
†109
O-Ring, Neo1 00.351id .072thk M
028 12961 001
3
43, 45, 46
†110
O-Ring, Neo1 00.644id .087thk M
028 12961 004
2
45, 46
†111
O-Ring, Special 3 - 924
028 13865 000
2
43, 46
†112
O-Ring, Hnbr 00.424id .103thk M
028 15428 000
1
45
†113
O-Ring, Neo1 00.301id .064thk M
028 12961 021
1
45
114
Seal, Double Shaft (K3/K4)
029 24762 000
1
45
†115
O-Ring, Neo1 05.859id .139thk M
028 12204 000
1
45
119
Shaft, Contl VGD
364 51673 000
2
46
120
Sleeve, Flare Hydraulic 1/4 Od
023 10000 000
1
45
121
Spacer, .50 Lg X .33 Id X .63od
064 50611 000
2
46
122
Spacer, Flanged, PRV & VGD
064 50612 000
4
46
123
Tube, Gear Cooling Ha65-104
064 51248 000
1
44
124
Tube, L.S. Oil Drain Ha 65-104
064 51222 000
1
44
125
Tube, Oil Drain Shaft Seal
064 51637 000
1
43
126
Tube, Oil Drain H.S. Thrust
064 51638 000
1
44
127
Valve, Check Oil 1/8 Npte
022 04444 000
1
43
128
Valve, Stop Ang Vertical
022 09578 000
1
45
129
Washer, Eye Spring (K3)
064 51779 000
1
43

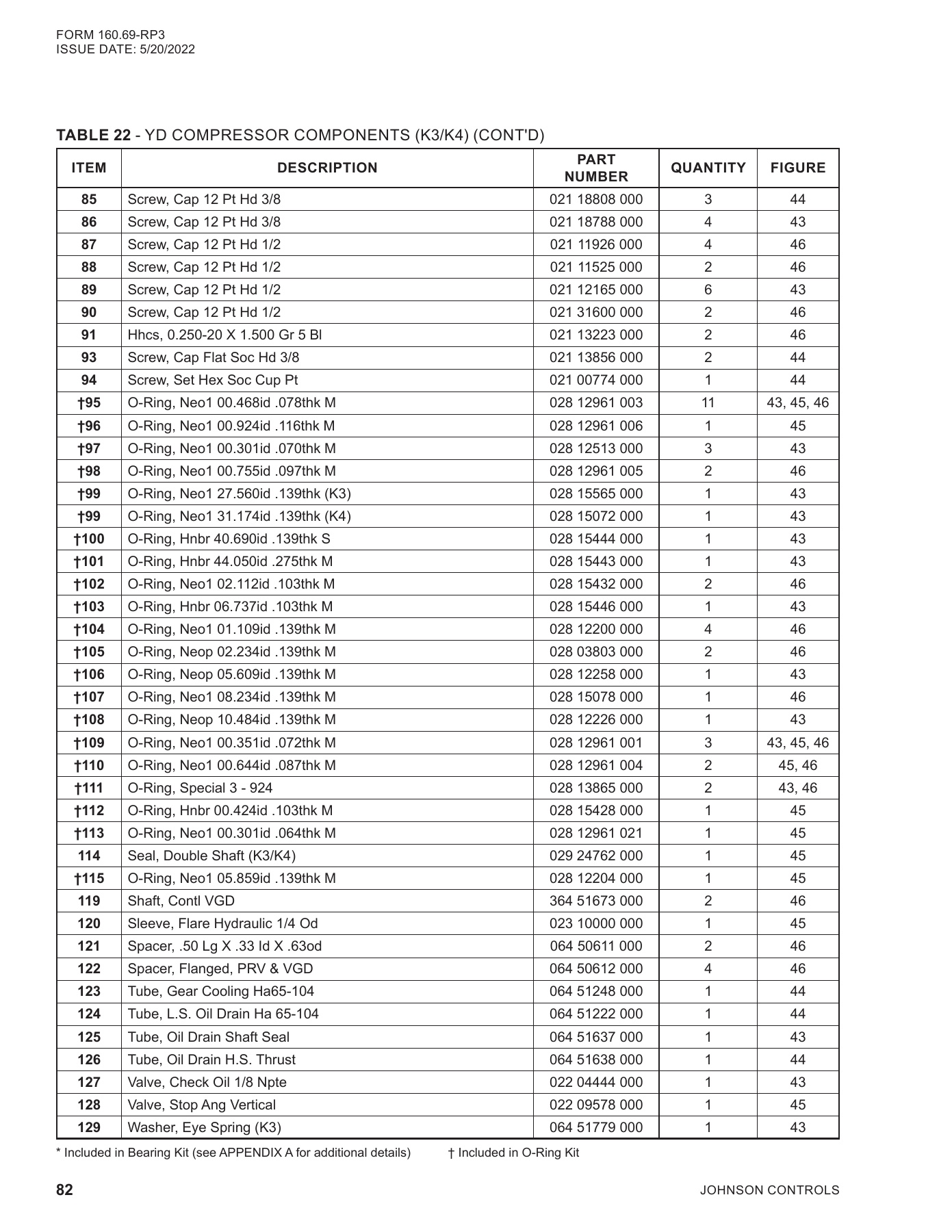

TABLE 22
- YD COMPRESSOR COMPONENTS (K3/K4) (CONTD)
* Included in Bearing Kit (see APPENDIX A for additional details)
† Included in O-Ring Kit
