JOHNSON CONTROLS
80
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

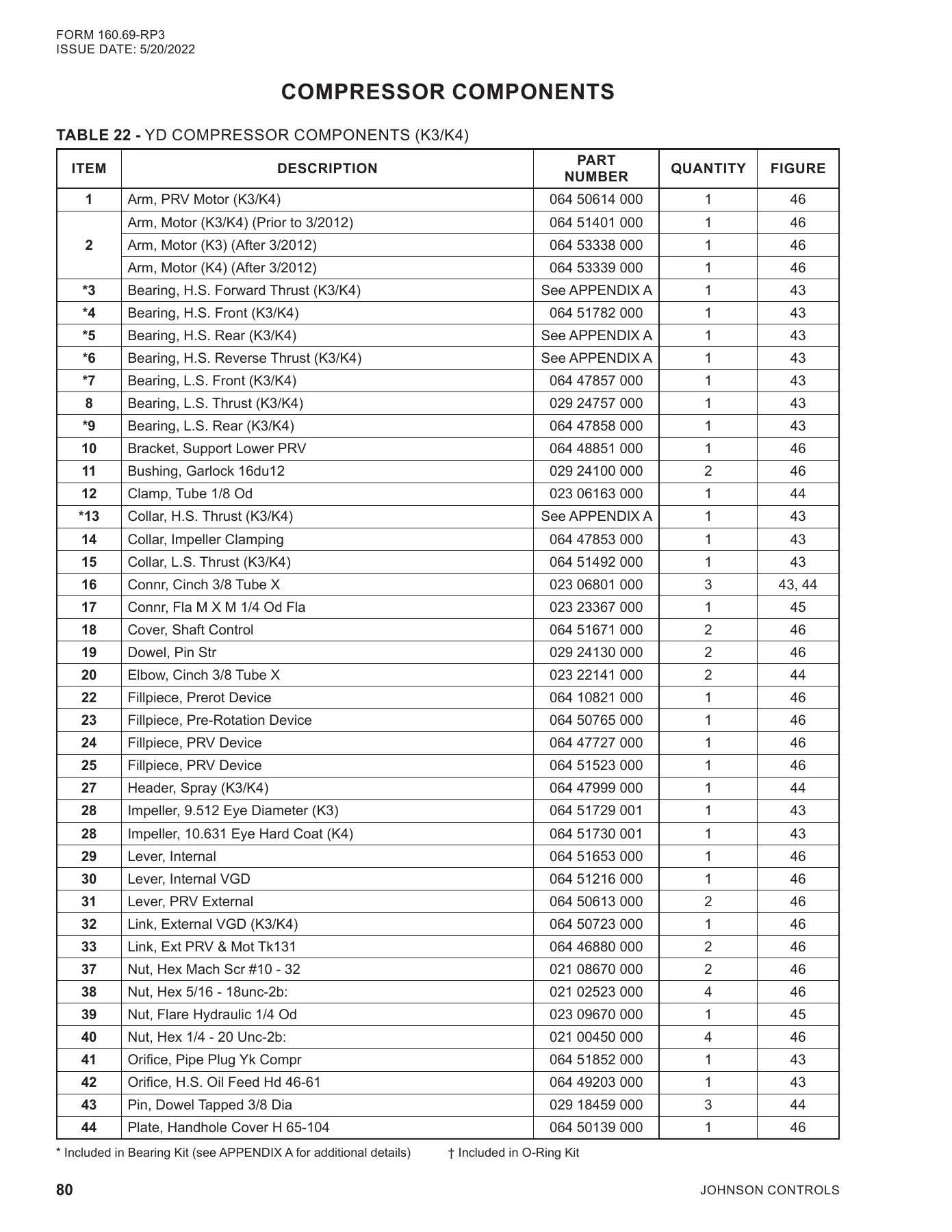

TABLE 22 -
YD COMPRESSOR COMPONENTS (K3/K4)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
1
Arm, PRV Motor (K3/K4)
064 50614 000
1
46
2
Arm, Motor (K3/K4) (Prior to 3/2012)
064 51401 000
1
46
Arm, Motor (K3) (After 3/2012)
064 53338 000
1
46
Arm, Motor (K4) (After 3/2012)
064 53339 000
1
46
*3
Bearing, H.S. Forward Thrust (K3/K4)
See APPENDIX A
1
43
*4
Bearing, H.S. Front (K3/K4)
064 51782 000
1
43
*5
Bearing, H.S. Rear (K3/K4)
See APPENDIX A
1
43
*6
Bearing, H.S. Reverse Thrust (K3/K4)
See APPENDIX A
1
43
*7
Bearing, L.S. Front (K3/K4)
064 47857 000
1
43
8
Bearing, L.S. Thrust (K3/K4)
029 24757 000
1
43
*9
Bearing, L.S. Rear (K3/K4)
064 47858 000
1
43
10
Bracket, Support Lower PRV
064 48851 000
1
46
11
Bushing, Garlock 16du12
029 24100 000
2
46
12
Clamp, Tube 1/8 Od
023 06163 000
1
44
*13
Collar, H.S. Thrust (K3/K4)
See APPENDIX A
1
43
14
Collar, Impeller Clamping
064 47853 000
1
43
15
Collar, L.S. Thrust (K3/K4)
064 51492 000
1
43
16
Connr, Cinch 3/8 Tube X
023 06801 000
3
43, 44
17
Connr, Fla M X M 1/4 Od Fla
023 23367 000
1
45
18
Cover, Shaft Control
064 51671 000
2
46
19
Dowel, Pin Str
029 24130 000
2
46
20
Elbow, Cinch 3/8 Tube X
023 22141 000
2
44
22
Fillpiece, Prerot Device
064 10821 000
1
46
23
Fillpiece, Pre-Rotation Device
064 50765 000
1
46
24
Fillpiece, PRV Device
064 47727 000
1
46
25
Fillpiece, PRV Device
064 51523 000
1
46
27
Header, Spray (K3/K4)
064 47999 000
1
44
28
Impeller, 9.512 Eye Diameter (K3)
064 51729 001
1
43
28
Impeller, 10.631 Eye Hard Coat (K4)
064 51730 001
1
43
29
Lever, Internal
064 51653 000
1
46
30
Lever, Internal VGD
064 51216 000
1
46
31
Lever, PRV External
064 50613 000
2
46
32
Link, External VGD (K3/K4)
064 50723 000
1
46
33
Link, Ext PRV & Mot Tk131
064 46880 000
2
46
37
Nut, Hex Mach Scr #10 - 32
021 08670 000
2
46
38
Nut, Hex 5/16 - 18unc-2b:
021 02523 000
4
46
39
Nut, Flare Hydraulic 1/4 Od
023 09670 000
1
45
40
Nut, Hex 1/4 - 20 Unc-2b:
021 00450 000
4
46
41
Orifice, Pipe Plug Yk Compr
064 51852 000
1
43
42
Orifice, H.S. Oil Feed Hd 46-61
064 49203 000
1
43
43
Pin, Dowel Tapped 3/8 Dia
029 18459 000
3
44
44
Plate, Handhole Cover H 65-104
064 50139 000
1
46
COMPRESSOR COMPONENTS
* Included in Bearing Kit (see APPENDIX A for additional details)
† Included in O-Ring Kit
