JOHNSON CONTROLS
78
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

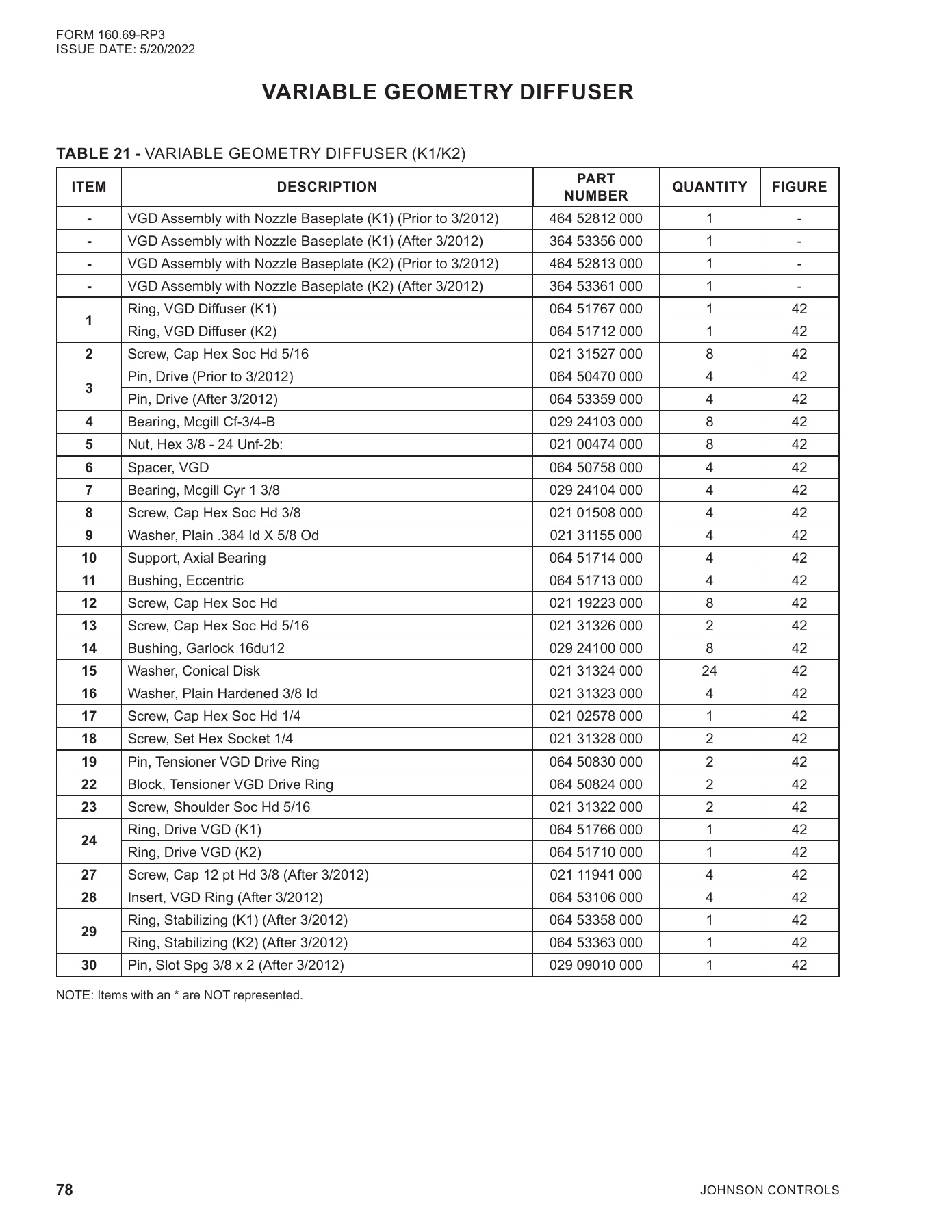

TABLE 21 -
VARIABLE GEOMETRY DIFFUSER (K1/K2)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
-
VGD Assembly with Nozzle Baseplate (K1) (Prior to 3/2012)
464 52812 000
1
-
-
VGD Assembly with Nozzle Baseplate (K1) (After 3/2012)
364 53356 000
1
-
-
VGD Assembly with Nozzle Baseplate (K2) (Prior to 3/2012)
464 52813 000
1
-
-
VGD Assembly with Nozzle Baseplate (K2) (After 3/2012)
364 53361 000
1
-
1
Ring, VGD Diffuser (K1)
064 51767 000
1
42
Ring, VGD Diffuser (K2)
064 51712 000
1
42
2
Screw, Cap Hex Soc Hd 5/16
021 31527 000
8
42
3
Pin, Drive (Prior to 3/2012)
064 50470 000
4
42
Pin, Drive (After 3/2012)
064 53359 000
4
42
4
Bearing, Mcgill Cf-3/4-B
029 24103 000
8
42
5
Nut, Hex 3/8 - 24 Unf-2b:
021 00474 000
8
42
6
Spacer, VGD
064 50758 000
4
42
7
Bearing, Mcgill Cyr 1 3/8
029 24104 000
4
42
8
Screw, Cap Hex Soc Hd 3/8
021 01508 000
4
42
9
Washer, Plain .384 Id X 5/8 Od
021 31155 000
4
42
10
Support, Axial Bearing
064 51714 000
4
42
11
Bushing, Eccentric
064 51713 000
4
42
12
Screw, Cap Hex Soc Hd
021 19223 000
8
42
13
Screw, Cap Hex Soc Hd 5/16
021 31326 000
2
42
14
Bushing, Garlock 16du12
029 24100 000
8
42
15
Washer, Conical Disk
021 31324 000
24
42
16
Washer, Plain Hardened 3/8 Id
021 31323 000
4
42
17
Screw, Cap Hex Soc Hd 1/4
021 02578 000
1
42
18
Screw, Set Hex Socket 1/4
021 31328 000
2
42
19
Pin, Tensioner VGD Drive Ring
064 50830 000
2
42
22
Block, Tensioner VGD Drive Ring
064 50824 000
2
42
23
Screw, Shoulder Soc Hd 5/16
021 31322 000
2
42
24
Ring, Drive VGD (K1)
064 51766 000
1
42
Ring, Drive VGD (K2)
064 51710 000
1
42
27
Screw, Cap 12 pt Hd 3/8 (After 3/2012)
021 11941 000
4
42
28
Insert, VGD Ring (After 3/2012)
064 53106 000
4
42
29
Ring, Stabilizing (K1) (After 3/2012)
064 53358 000
1
42
Ring, Stabilizing (K2) (After 3/2012)
064 53363 000
1
42
30
Pin, Slot Spg 3/8 x 2 (After 3/2012)
029 09010 000
1
42
NOTE: Items with an * are NOT represented.
VARIABLE GEOMETRY DIFFUSER
