1

1

Controller, RWT

025-15154-000

1

3

Relay, Time Delay

024-30497-000

1

4

Switch, Toggle

024-14057-000

1

1

 Not Shown.  Remote Mounted.

THREE UNIT

ITEM

DESCRIPTION

PART NUMBER

QUANTITY

2

Control, Temp 2 Stage

025-10215-000

1

3

Relay, TD 115V

024-30497-000

2

4

Relay, Control 120V Coil

024-14519-000

2

5

Relay Assy.

375-21706-000

1

8

Switch, Toggle 3 Position

024-17026-000

1

18

Switch, Toggle

024-11736-000

1

FOUR UNIT

ITEM

DESCRIPTION

PART NUMBER

QUANTITY

2

Control, Temp. 3-Stage

025-10214-000

1

3

Relay, TD 115V

024-30497-000

3

4

Relay Assy.

375-21706-000

1

5

Relay, Control 120V Coil

024-14519-000

8

8

Switch, Toggle

024-11736-000

1

11

Switch, Rotary 4 Ckt 15A

024-20494-000

1

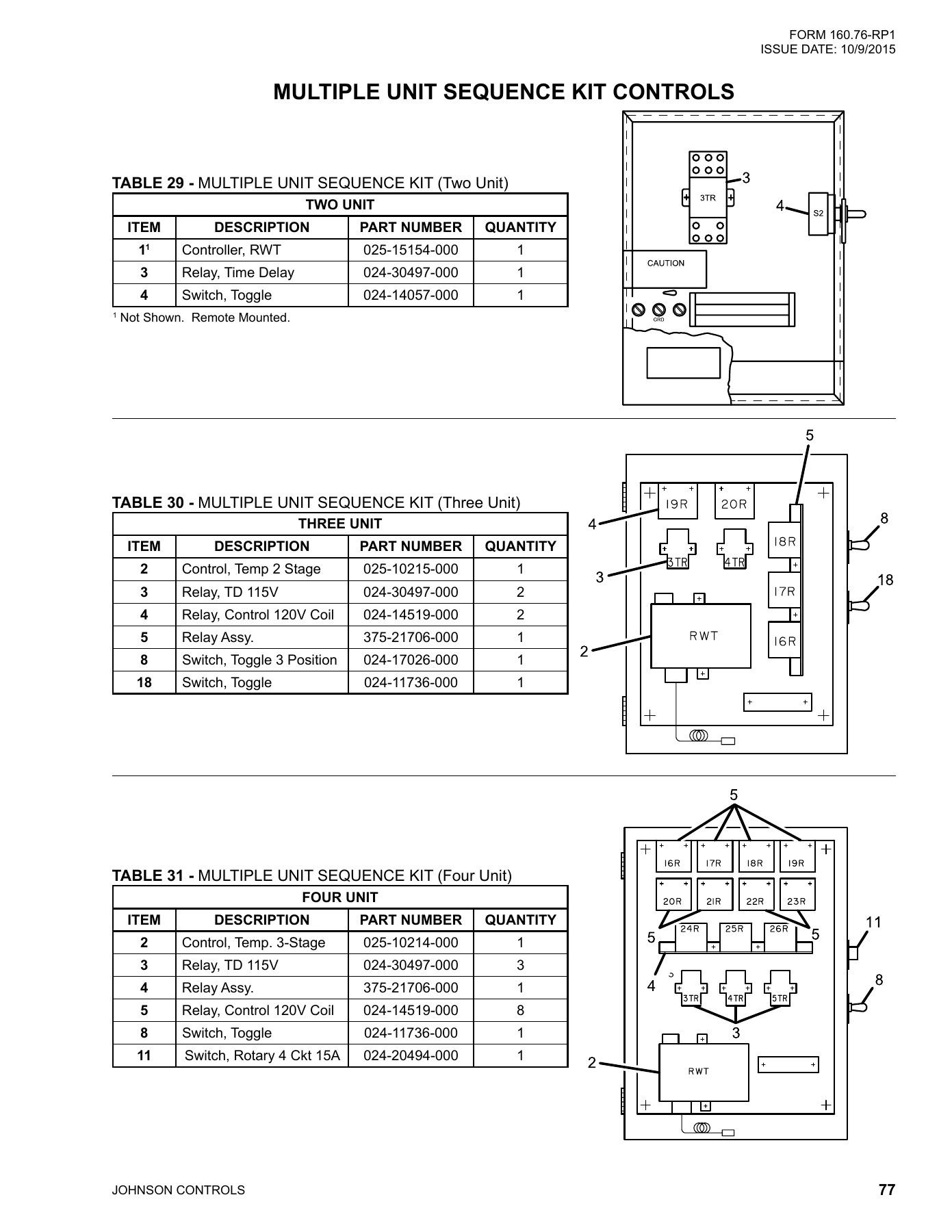

MULTIPLE UNIT SEQUENCE KIT CONTROLS

TABLE 29 -

MULTIPLE UNIT SEQUENCE KIT (Two Unit)

TABLE 30 -

MULTIPLE UNIT SEQUENCE KIT (Three Unit)

TABLE 31 -

MULTIPLE UNIT SEQUENCE KIT (Four Unit)
