FORM 160.76-RP1
ISSUE DATE: 10/9/2015

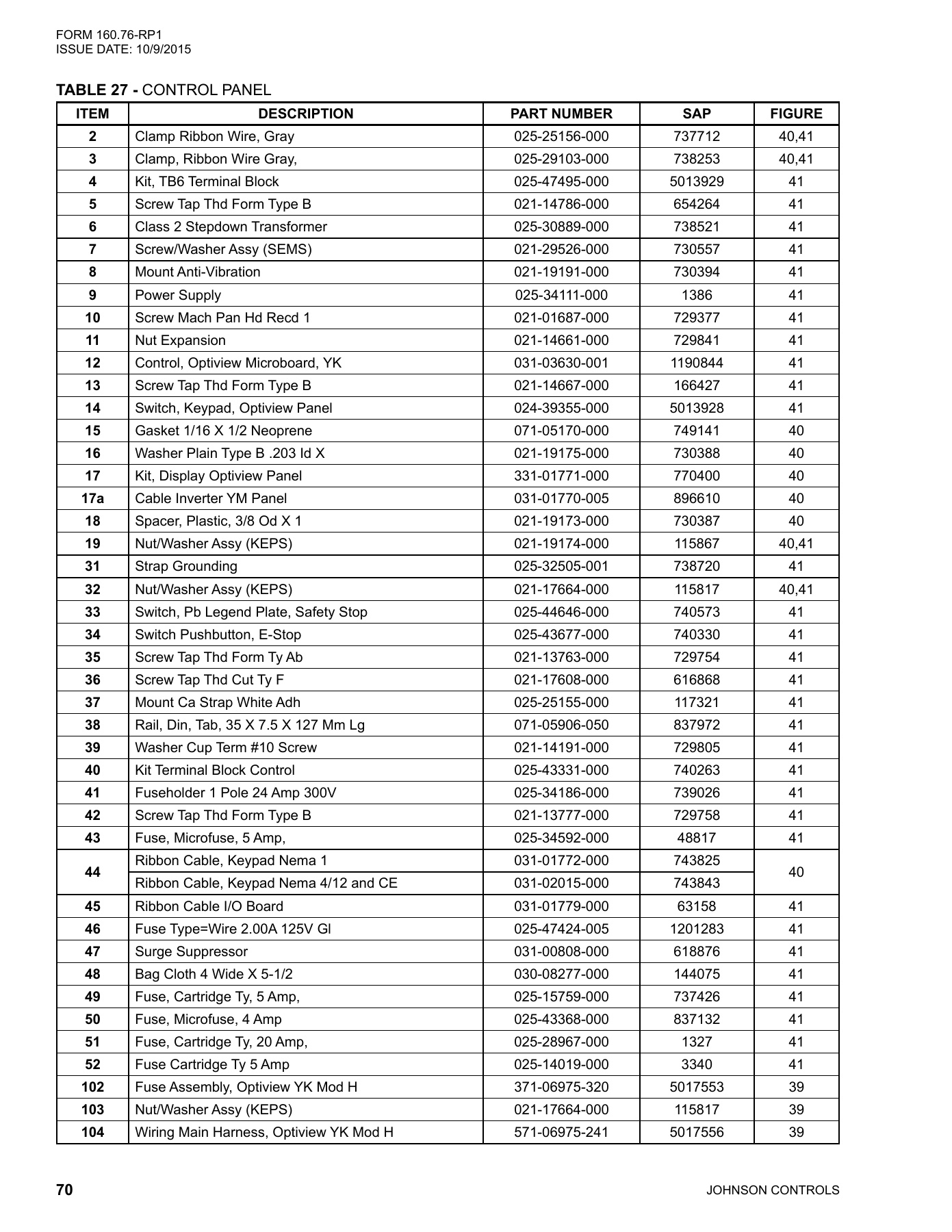

TABLE 27 -
CONTROL PANEL
ITEM
DESCRIPTION
PART NUMBER
SAP
FIGURE
2
Clamp Ribbon Wire, Gray
025-25156-000
737712
40,41
3
Clamp, Ribbon Wire Gray,
025-29103-000
738253
40,41
4
Kit, TB6 Terminal Block
025-47495-000
5013929
41
5
Screw Tap Thd Form Type B
021-14786-000
654264
41
6
Class 2 Stepdown Transformer
025-30889-000
738521
41
7
Screw/Washer Assy (SEMS)
021-29526-000
730557
41
8
Mount Anti-Vibration
021-19191-000
730394
41
9
Power Supply
025-34111-000
1386
41
10
Screw Mach Pan Hd Recd 1
021-01687-000
729377
41
11
Nut Expansion
021-14661-000
729841
41
12
Control, Optiview Microboard, YK
031-03630-001
1190844
41
13
Screw Tap Thd Form Type B
021-14667-000
166427
41
14
Switch, Keypad, Optiview Panel
024-39355-000
5013928
41
15
Gasket 1/16 X 1/2 Neoprene
071-05170-000
749141
40
16
Washer Plain Type B .203 Id X
021-19175-000
730388
40
17
Kit, Display Optiview Panel
331-01771-000
770400
40
17a
Cable Inverter YM Panel
031-01770-005
896610
40
18
Spacer, Plastic, 3/8 Od X 1
021-19173-000
730387
40
19
Nut/Washer Assy (KEPS)
021-19174-000
115867
40,41
31
Strap Grounding
025-32505-001
738720
41
32
Nut/Washer Assy (KEPS)
021-17664-000
115817
40,41
33
Switch, Pb Legend Plate, Safety Stop
025-44646-000
740573
41
34
Switch Pushbutton, E-Stop
025-43677-000
740330
41
35
Screw Tap Thd Form Ty Ab
021-13763-000
729754
41
36
Screw Tap Thd Cut Ty F
021-17608-000
616868
41
37
Mount Ca Strap White Adh
025-25155-000
117321
41
38
Rail, Din, Tab, 35 X 7.5 X 127 Mm Lg
071-05906-050
837972
41
39
Washer Cup Term #10 Screw
021-14191-000
729805
41
40
Kit Terminal Block Control
025-43331-000
740263
41
41
Fuseholder 1 Pole 24 Amp 300V
025-34186-000
739026
41
42
Screw Tap Thd Form Type B
021-13777-000
729758
41
43
Fuse, Microfuse, 5 Amp,
025-34592-000
48817
41
44
Ribbon Cable, Keypad Nema 1
031-01772-000
743825
40
Ribbon Cable, Keypad Nema 4/12 and CE
031-02015-000
743843
45
Ribbon Cable I/O Board
031-01779-000
63158
41
46
Fuse Type=Wire 2.00A 125V Gl
025-47424-005
1201283
41
47
Surge Suppressor
031-00808-000
618876
41
48
Bag Cloth 4 Wide X 5-1/2
030-08277-000
144075
41
49
Fuse, Cartridge Ty, 5 Amp,
025-15759-000
737426
41
50
Fuse, Microfuse, 4 Amp
025-43368-000
837132
41
51
Fuse, Cartridge Ty, 20 Amp,
025-28967-000
1327
41
52
Fuse Cartridge Ty 5 Amp
025-14019-000
3340
41
102
Fuse Assembly, Optiview YK Mod H
371-06975-320
5017553
39
103
Nut/Washer Assy (KEPS)
021-17664-000
115817
39
104
Wiring Main Harness, Optiview YK Mod H
571-06975-241
5017556
39
