SYSTEM CONTROL COMPONENTS
TABLE 31 -
SYSTEM CONTROL COMPONENTS
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
3
Sensor, Temperature 3000 Ohms
025-29964-000
5
36
4
Sensor, Condenser Liquid Temperature (P8, P9, H9, and K)
025-29964-000
1
36
Sensor, Condenser Liquid Temperature (Q3-Q7, and P7)
025-39517-000
6
O-ring, Neoprene .644 Id .087 Thk
028-12961-004
2
*
7
Sensor, Temp. Evaporator Refrigerant
025-34159-000
1
*
Sensor, Temp. Evaporator Refrigerant (Square Connector)
025-41904-000
21
Diode, Bridge
031-00210-000
1
*
22
Wiring, Resistor
575-00364-001
1
*
48
Gasket, Seal 1" OD x 7/8
028-04836-000
1
36
65
Control, Current CM-2
031-00947-000
1
36
81
Sensor, Flow
025-41573-000
2
36
90
O-ring, Neoprene .644 ID .087 Thk
028-12961-004
1
36
91
Sensor, Temperature 50,000 Ohms DIN
025-39993-000
1
36
93
Well, Thermo
026-32328-000
4
36
108
Sensor, Level R-134a (Q3-Q7/P7/K1-K4) (prior 6-2013)
025-43950-006
1
36
Sensor, Level R-134a (Q3-Q7/P7/K1-K4) (after 6-2013)
025-46044-006
Sensor, Level R-134a (K1-K4/K7) (prior 6-2013)
025-43950-008
Sensor, Level R-134a (K1-K4/K7) (after 6-2013)
025-46044-008
108A
Level Control Module (Pushbutton Style)
325-42383-001
108B
Level Control Module (Potentiometer Style)
025-34146-000
109
Sensor ("X" and Larger Cond. Shell Codes)
325-40338-000
1
36
109A
Module ("X" and Larger Cond. Shell Codes)
325-42383-002
120
Actuator, Electric (2" Valve)
025-38177-000
1
36
Actuator, Electric (3" and 4" Valve)
025-38178-000
Actuator, Electric (5" Valve)
025-38178-000
2
133
Valve, Ball 3/4-16Unf-2A
022-11715-000
1
36
134
Transducer, Pressure R-22/R-134 (VGD Compressor)
025-40088-000
1
36
135
O-ring, Neoprene .414 Id .072 Thk
028-12961-002
1
36
NOTE:
Items with an * are NOT represented.

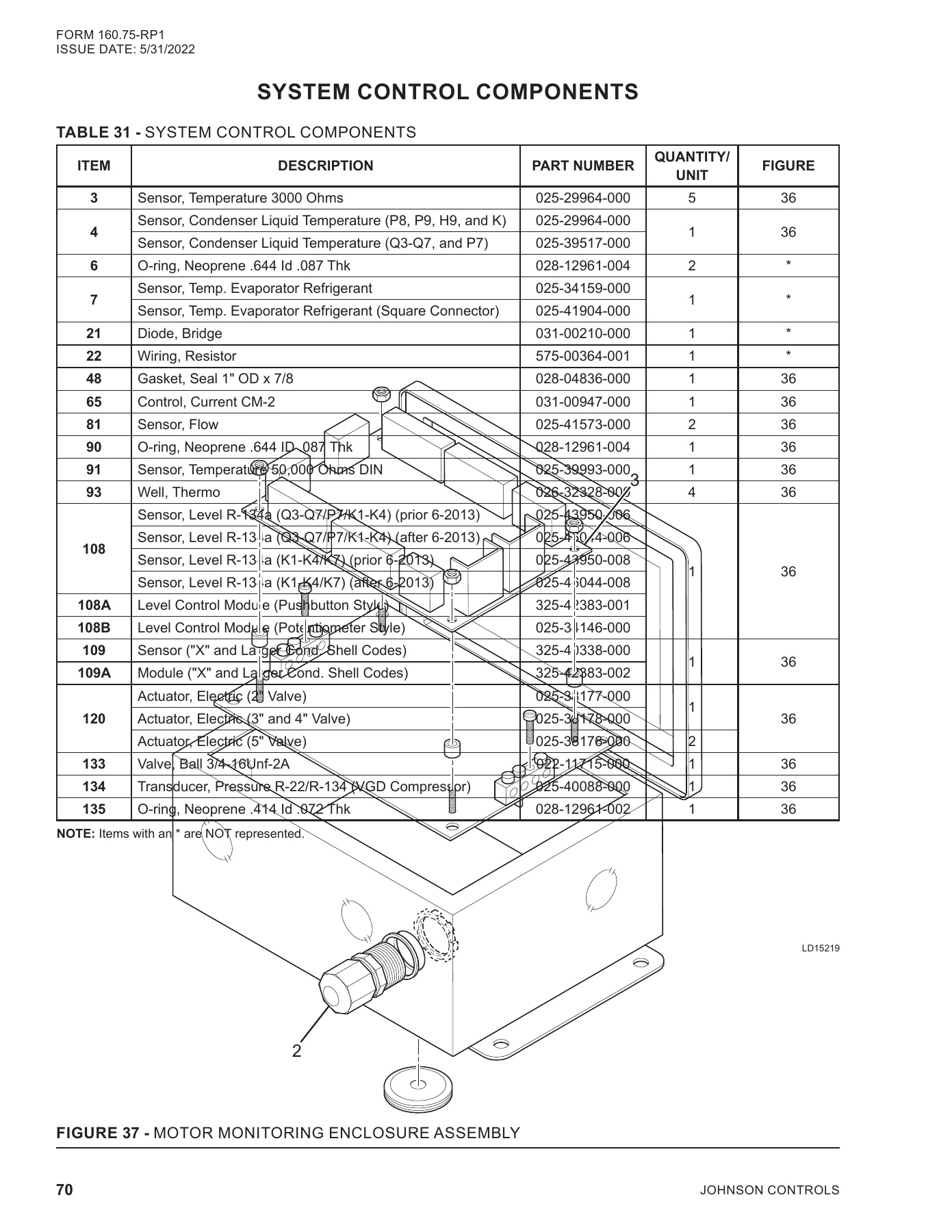

FIGURE 37 -
MOTOR MONITORING ENCLOSURE ASSEMBLY
