FORM 160.76-RP1
ISSUE DATE: 10/9/2015
JOHNSON CONTROLS
69

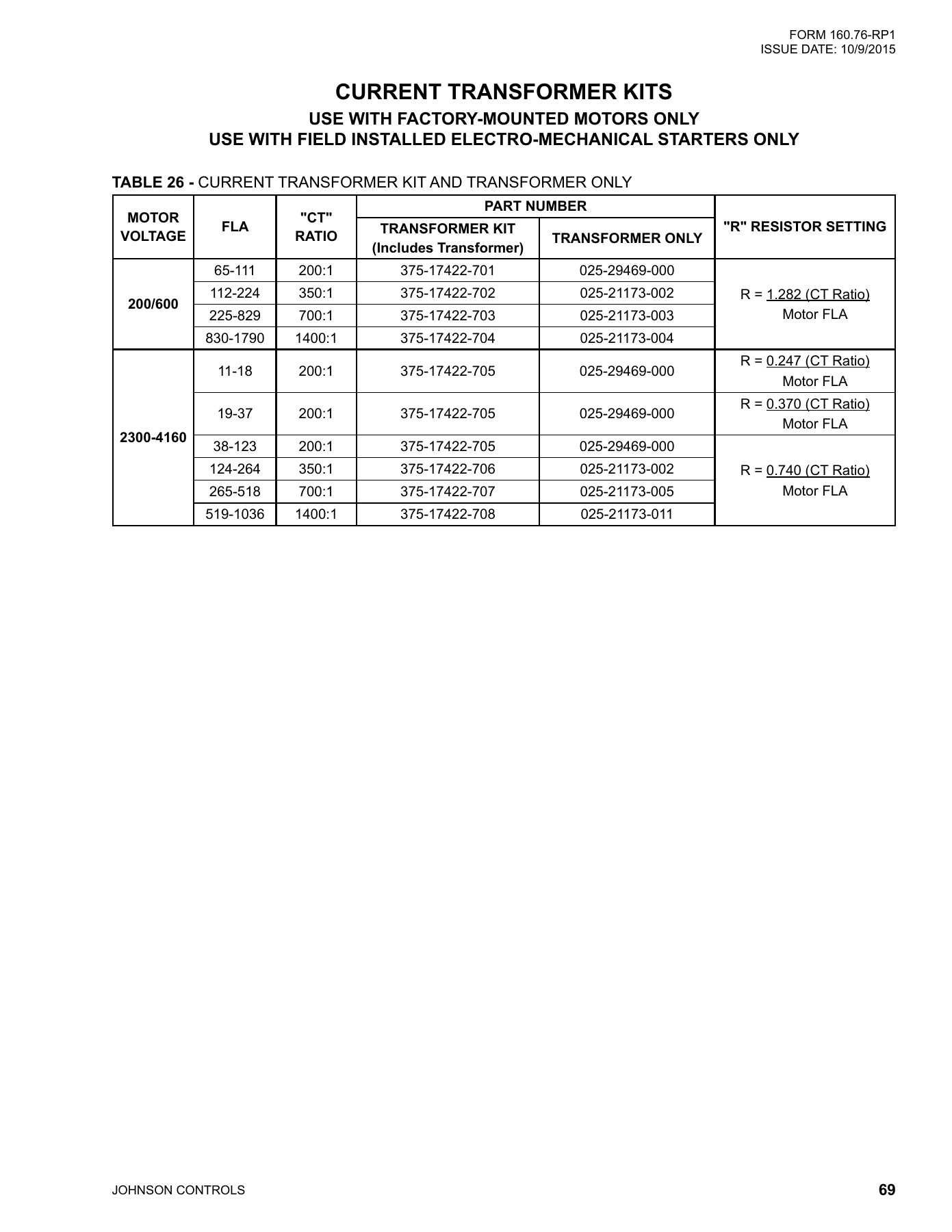

TABLE 26 -
CURRENT TRANSFORMER KIT AND TRANSFORMER ONLY
MOTOR
VOLTAGE
FLA
"CT"
RATIO
PART NUMBER
"R" RESISTOR SETTING
TRANSFORMER KIT
(Includes Transformer)
TRANSFORMER ONLY
200/600
65-111
200:1
375-17422-701
025-29469-000
R =
1.282 (CT Ratio)
Motor FLA
112-224
350:1
375-17422-702
025-21173-002
225-829
700:1
375-17422-703
025-21173-003
830-1790
1400:1
375-17422-704
025-21173-004
2300-4160
11-18
200:1
375-17422-705
025-29469-000
R =
0.247 (CT Ratio)
Motor FLA
19-37
200:1
375-17422-705
025-29469-000
R =
0.370 (CT Ratio)
Motor FLA
38-123
200:1
375-17422-705
025-29469-000
R =
0.740 (CT Ratio)
Motor FLA
124-264
350:1
375-17422-706
025-21173-002
265-518
700:1
375-17422-707
025-21173-005
519-1036
1400:1
375-17422-708
025-21173-011
CURRENT TRANSFORMER KITS
USE WITH FACTORY-MOUNTED MOTORS ONLY
USE WITH FIELD INSTALLED ELECTRO-MECHANICAL STARTERS ONLY
