JOHNSON CONTROLS
69
FORM 160.69-RP2 (522)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY FIGURE
45
Plug, Hex Hd 1-1/16
023 18295 000
1
39
46
Plug, Hex Hd 1-5/16
023 18282 000
2
37, 40
47
Plug, Hex Hd 3/4
023 18280 000
2
39, 40
48
Plug, Hex Hd 7/16
023 18279 000
2
37, 39
50
Plug, Hollow Hex 5/16-24unf-2a
023 24908 000
3
37
51
Plug, Pipe 1/4 Hex Socket
023 01973 000
3
37
52
Plug, PRV Assembly
064 50632 000
2
40
53
Plug, Hex Hd 9/16
023 18962 000
8
37, 38, 40
55
Probe, Proximity 2 Piece Kit
364 51806 000
1
39
56
Retainer, B.P. Seal (K1/K2)
064 51719 000
1
37
57
Retainer, Brg S Stage Turbo
064 46886 000
2
37, 38
58
Retainer, Eye Seal Washer (K1)
064 50322 000
1
37, 40
58
Retainer, Eye Seal Washer (K2)
064 51722 000
1
37, 40
59
Ring, Bal.Pist. Seal (K1/K2)
064 51718 000
1
37
60
Ring, Eye Seal (K1)
064 50320 000
1
37
60
Ring, Eye Seal (K2)
064 51721 000
1
37
61
Rod, Adjustable PRV & VGD
364 51754 694
1
40
62
Rod, Adjustable PRV & VGD
364 51753 675
1
40
†
94
O-Ring, Neo1 00.468id .078thk M
028 12961 003
10
39, 40
†
95
O-Ring, Neo1 00.924id .116thk M
028 12961 006
1
37, 39
†
96
O-Ring, Neo1 00.301id .070thk M
028 12513 000
3
37, 39
†
97
O-Ring, Neo1 00.755id .097thk M
028 12961 005
2
40
†
98
O-Ring, Neo1 21.750id .139thk S (K1)
028 15588 000
1
37
†
98
O-Ring, Neo1 23.91id .139thk S (K2)
028 15437 000
1
37
†
99
O-Ring, Neo1 31.174id .139thk S
028 15072 000
1
37
†
100
O-Ring, Neo1 37.050id .275thk M
028 15083 000
1
37
†
101
O-Ring, Neo1 02.112id .103thk M
028 15432 000
2
40
†
102
O-Ring, Neop 02.550id .103thk M
028 11976 000
3
37
†
103
O-Ring, Neop 03.737id .103thk M
028 15074 000
2
37
†
104
O-Ring, Neo1 01.109id .139thk M
028 12200 000
4
40
†
105
O-Ring, Neop 02.234id .139thk M
028 03803 000
2
40
†
106
O-Ring, Neo1 04.484id .139thk M
028 15576 000
1
37
†
107
O-Ring, Neo1 05.234id .139thk M
028 15577 000
1
39
†
108
O-Ring, Neop 07.984id .139thk M
028 12255 000
1
37, 40
†
109
O-Ring, Neo1 08.234id .139thk M
028 15078 000
1
40
†
110
O-Ring, Neo1 00.351id .072thk M
028 12961 001
3
37, 39, 40
†
111
O-Ring, Neo1 00.644id .087thk M
028 12961 004
2
39, 40
†
112
O-Ring, Neo1 01.171id .116thk M
028 12961 008
2
37, 40
†
113
O-Ring, Hnbr 00.424id .103thk M
028 15428 000
1
39
115
Seal, Double Shaft (K1/K2)
029 25041 000
1
39
119
Shaft, Contl Prerot Device
364 51672 000
1
40
120
Shaft, Control VGD
364 51673 000
1
40

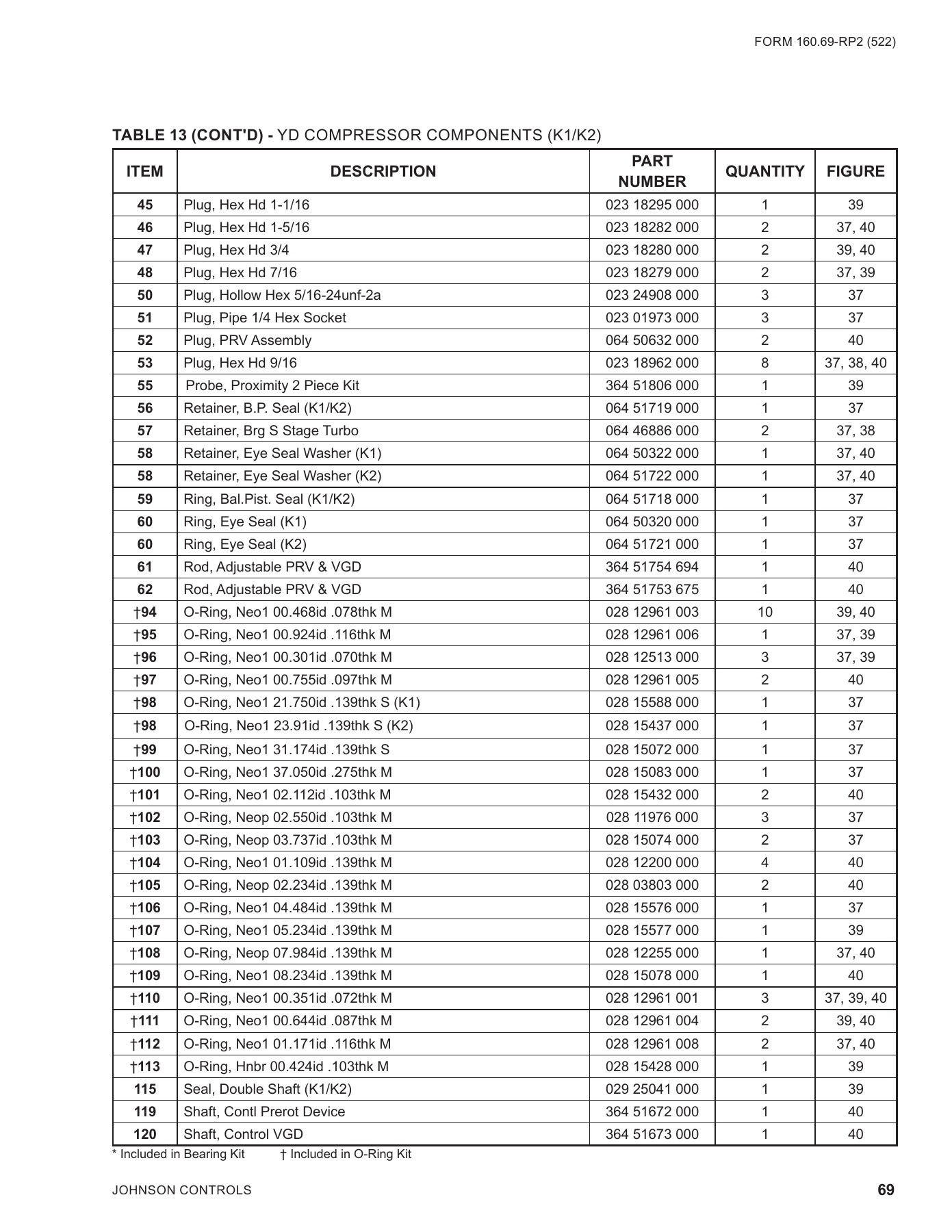

TABLE 13 (CONTD) -
YD COMPRESSOR COMPONENTS (K1/K2)
* Included in Bearing Kit
† Included in O-Ring Kit
