JOHNSON CONTROLS

68

FORM 160.69-RP3

ISSUE DATE: 5/20/2022

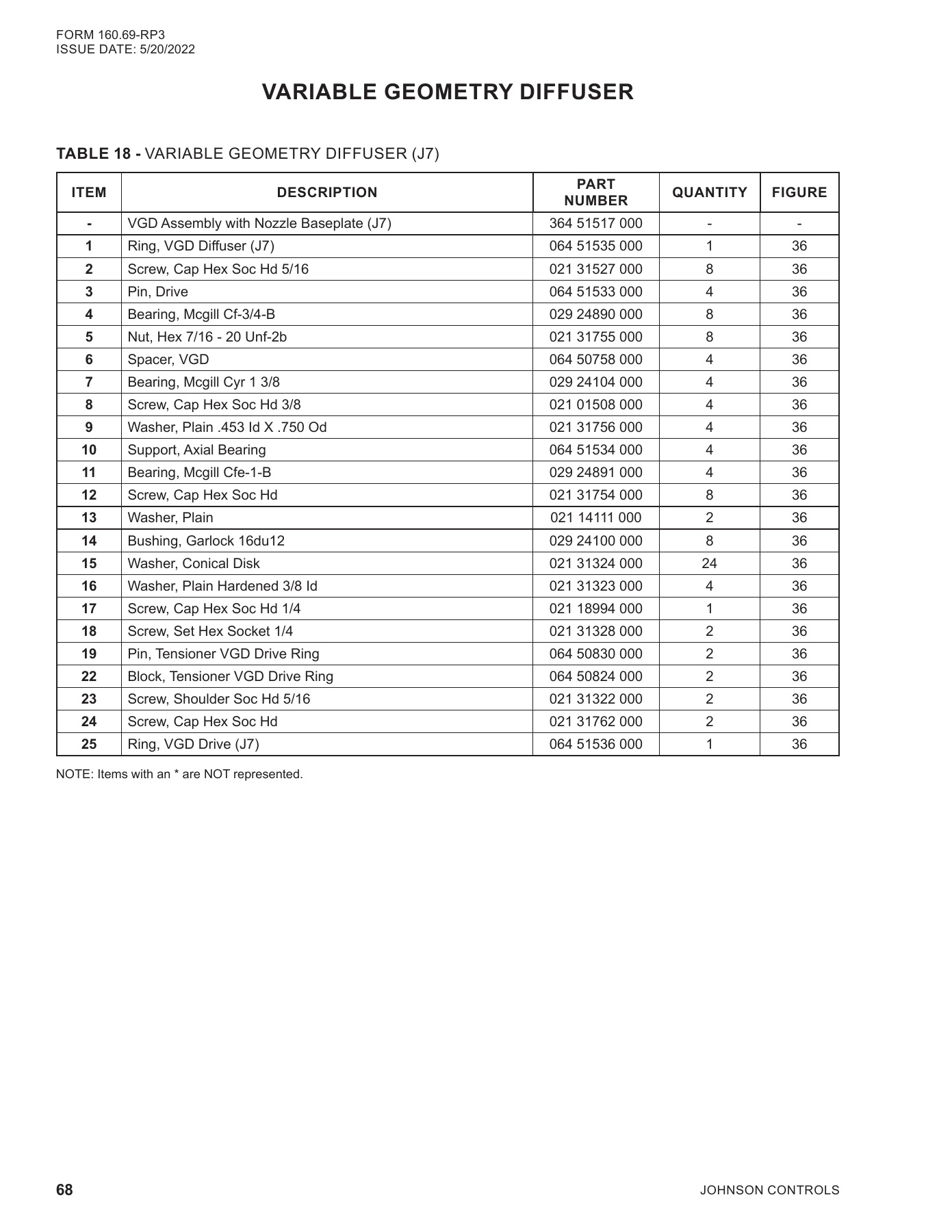

VARIABLE GEOMETRY DIFFUSER

TABLE 18 -

VARIABLE GEOMETRY DIFFUSER (J7)

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY

FIGURE

-

VGD Assembly with Nozzle Baseplate (J7)

364 51517 000

-

-

1

Ring, VGD Diffuser (J7)

064 51535 000

1

36

2

Screw, Cap Hex Soc Hd 5/16

021 31527 000

8

36

3

Pin, Drive

064 51533 000

4

36

4

Bearing, Mcgill Cf-3/4-B

029 24890 000

8

36

5

Nut, Hex 7/16 - 20 Unf-2b

021 31755 000

8

36

6

Spacer, VGD

064 50758 000

4

36

7

Bearing, Mcgill Cyr 1 3/8

029 24104 000

4

36

8

Screw, Cap Hex Soc Hd 3/8

021 01508 000

4

36

9

Washer, Plain .453 Id X .750 Od

021 31756 000

4

36

10

Support, Axial Bearing

064 51534 000

4

36

11

Bearing, Mcgill Cfe-1-B

029 24891 000

4

36

12

Screw, Cap Hex Soc Hd

021 31754 000

8

36

13

Washer, Plain

021 14111 000

2

36

14

Bushing, Garlock 16du12

029 24100 000

8

36

15

Washer, Conical Disk

021 31324 000

24

36

16

Washer, Plain Hardened 3/8 Id

021 31323 000

4

36

17

Screw, Cap Hex Soc Hd 1/4

021 18994 000

1

36

18

Screw, Set Hex Socket 1/4

021 31328 000

2

36

19

Pin, Tensioner VGD Drive Ring

064 50830 000

2

36

22

Block, Tensioner VGD Drive Ring

064 50824 000

2

36

23

Screw, Shoulder Soc Hd 5/16

021 31322 000

2

36

24

Screw, Cap Hex Soc Hd

021 31762 000

2

36

25

Ring, VGD Drive (J7)

064 51536 000

1

36

NOTE: Items with an * are NOT represented.

Catalog 160-69-RP3 - Page 0067
