FORM 160.69-RP2 (522)
JOHNSON CONTROLS
68

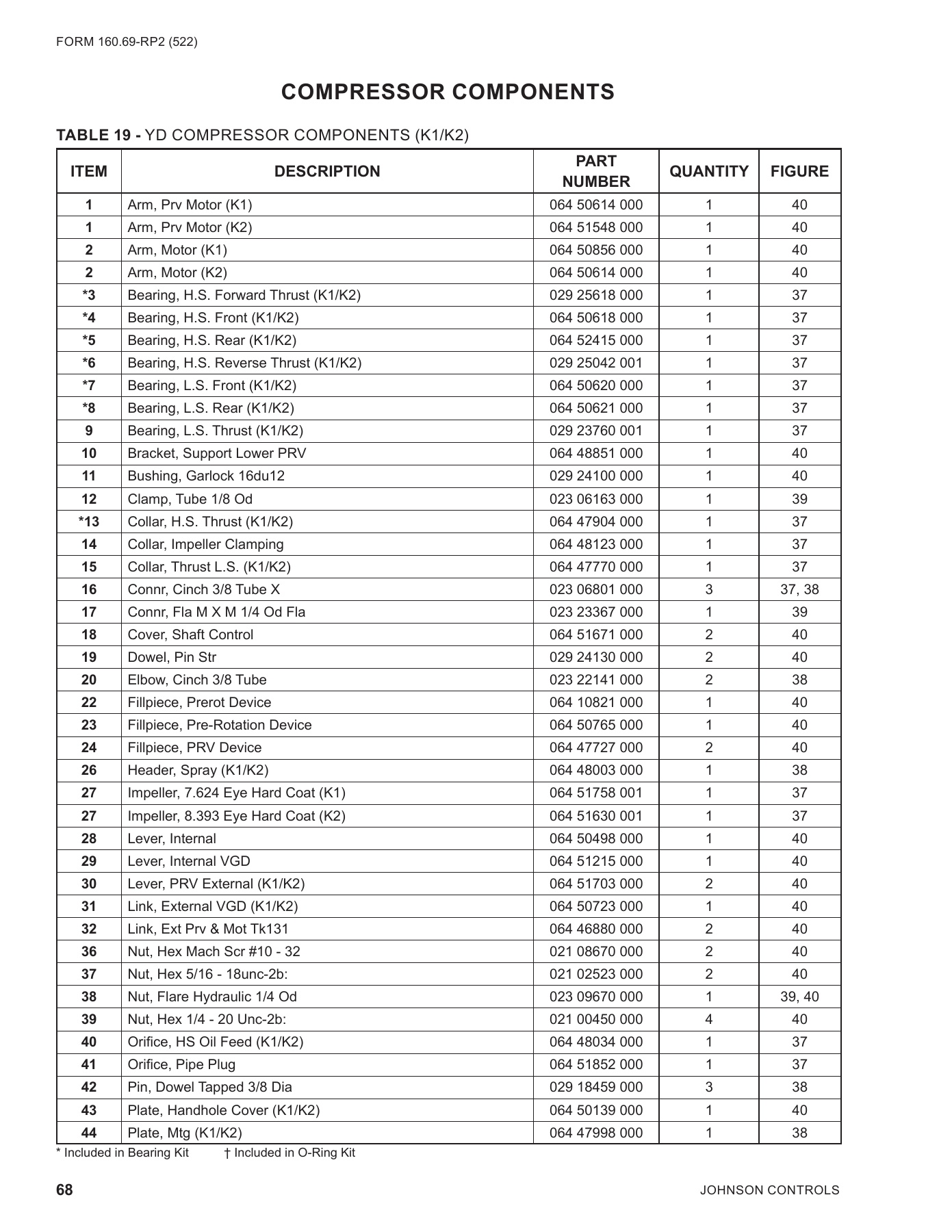

TABLE 19 -
YD COMPRESSOR COMPONENTS (K1/K2)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY FIGURE
1
Arm, Prv Motor (K1)
064 50614 000
1
40
1
Arm, Prv Motor (K2)
064 51548 000
1
40
2
Arm, Motor (K1)
064 50856 000
1
40
2
Arm, Motor (K2)
064 50614 000
1
40
*3
Bearing, H.S. Forward Thrust (K1/K2)
029 25618 000
1
37
*4
Bearing, H.S. Front (K1/K2)
064 50618 000
1
37
*5
Bearing, H.S. Rear (K1/K2)
064 52415 000
1
37
*6
Bearing, H.S. Reverse Thrust (K1/K2)
029 25042 001
1
37
*7
Bearing, L.S. Front (K1/K2)
064 50620 000
1
37
*8
Bearing, L.S. Rear (K1/K2)
064 50621 000
1
37
9
Bearing, L.S. Thrust (K1/K2)
029 23760 001
1
37
10
Bracket, Support Lower PRV
064 48851 000
1
40
11
Bushing, Garlock 16du12
029 24100 000
1
40
12
Clamp, Tube 1/8 Od
023 06163 000
1
39
*13
Collar, H.S. Thrust (K1/K2)
064 47904 000
1
37
14
Collar, Impeller Clamping
064 48123 000
1
37
15
Collar, Thrust L.S. (K1/K2)
064 47770 000
1
37
16
Connr, Cinch 3/8 Tube X
023 06801 000
3
37, 38
17
Connr, Fla M X M 1/4 Od Fla
023 23367 000
1
39
18
Cover, Shaft Control
064 51671 000
2
40
19
Dowel, Pin Str
029 24130 000
2
40
20
Elbow, Cinch 3/8 Tube
023 22141 000
2
38
22
Fillpiece, Prerot Device
064 10821 000
1
40
23
Fillpiece, Pre-Rotation Device
064 50765 000
1
40
24
Fillpiece, PRV Device
064 47727 000
2
40
26
Header, Spray (K1/K2)
064 48003 000
1
38
27
Impeller, 7.624 Eye Hard Coat (K1)
064 51758 001
1
37
27
Impeller, 8.393 Eye Hard Coat (K2)
064 51630 001
1
37
28
Lever, Internal
064 50498 000
1
40
29
Lever, Internal VGD
064 51215 000
1
40
30
Lever, PRV External (K1/K2)
064 51703 000
2
40
31
Link, External VGD (K1/K2)
064 50723 000
1
40
32
Link, Ext Prv & Mot Tk131
064 46880 000
2
40
36
Nut, Hex Mach Scr #10 - 32
021 08670 000
2
40
37
Nut, Hex 5/16 - 18unc-2b:
021 02523 000
2
40
38
Nut, Flare Hydraulic 1/4 Od
023 09670 000
1
39, 40
39
Nut, Hex 1/4 - 20 Unc-2b:
021 00450 000
4
40
40
Orifice, HS Oil Feed (K1/K2)
064 48034 000
1
37
41
Orifice, Pipe Plug
064 51852 000
1
37
42
Pin, Dowel Tapped 3/8 Dia
029 18459 000
3
38
43
Plate, Handhole Cover (K1/K2)
064 50139 000
1
40
44
Plate, Mtg (K1/K2)
064 47998 000
1
38
COMPRESSOR COMPONENTS
* Included in Bearing Kit
† Included in O-Ring Kit
