FORM 160.75-RP1
ISSUE DATE: 5/31/2022
JOHNSON CONTROLS
65

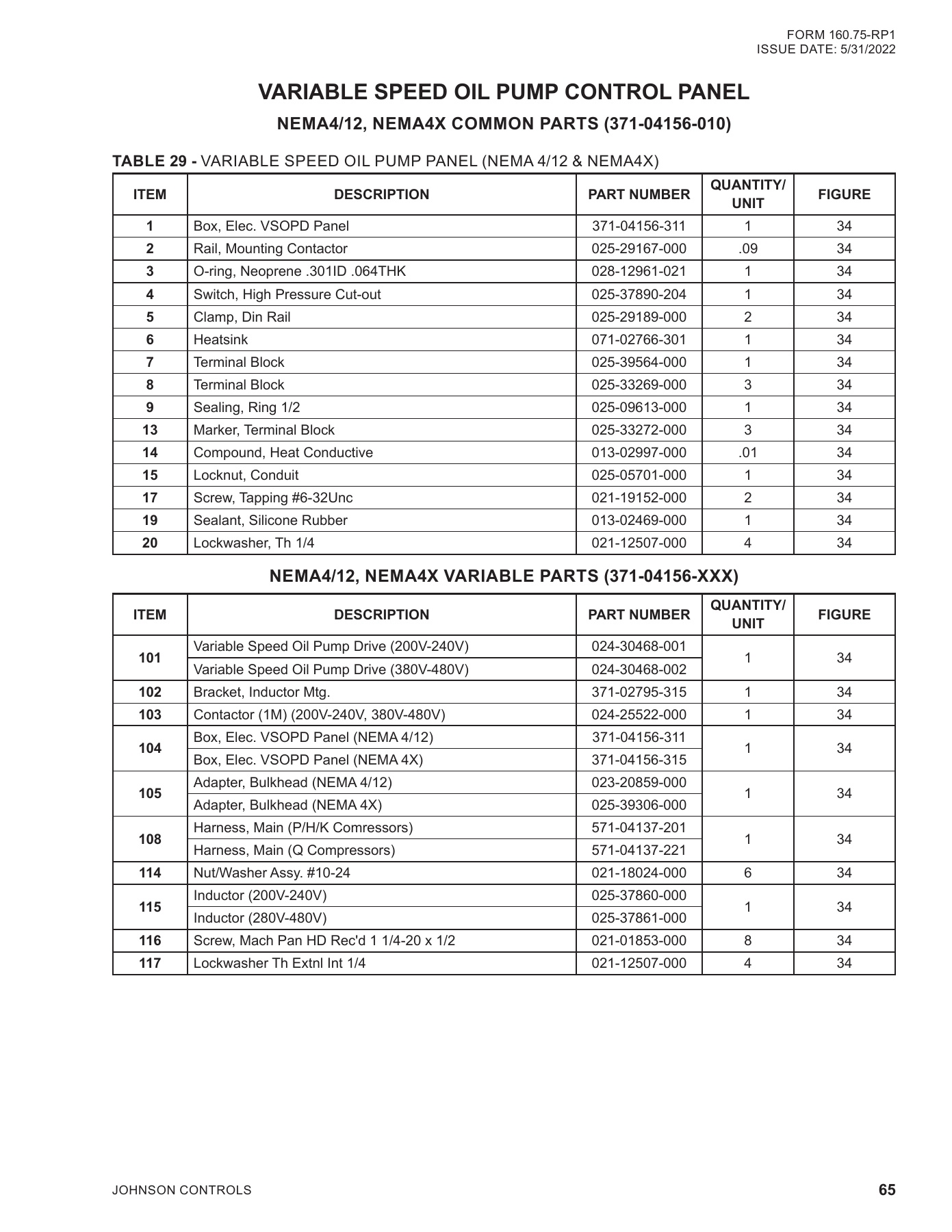

VARIABLE SPEED OIL PUMP CONTROL PANEL
NEMA4/12, NEMA4X COMMON PARTS (371-04156-010)
TABLE 29 -
VARIABLE SPEED OIL PUMP PANEL (NEMA 4/12 & NEMA4X)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
1
Box, Elec. VSOPD Panel
371-04156-311
1
34
2
Rail, Mounting Contactor
025-29167-000
.09
34
3
O-ring, Neoprene .301ID .064THK
028-12961-021
1
34
4
Switch, High Pressure Cut-out
025-37890-204
1
34
5
Clamp, Din Rail
025-29189-000
2
34
6
Heatsink
071-02766-301
1
34
7
Terminal Block
025-39564-000
1
34
8
Terminal Block
025-33269-000
3
34
9
Sealing, Ring 1/2
025-09613-000
1
34
13
Marker, Terminal Block
025-33272-000
3
34
14
Compound, Heat Conductive
013-02997-000
.01
34
15
Locknut, Conduit
025-05701-000
1
34
17
Screw, Tapping #6-32Unc
021-19152-000
2
34
19
Sealant, Silicone Rubber
013-02469-000
1
34
20
Lockwasher, Th 1/4
021-12507-000
4
34
NEMA4/12, NEMA4X VARIABLE PARTS (371-04156-XXX)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
101
Variable Speed Oil Pump Drive (200V-240V)
024-30468-001
1
34
Variable Speed Oil Pump Drive (380V-480V)
024-30468-002
102
Bracket, Inductor Mtg.
371-02795-315
1
34
103
Contactor (1M) (200V-240V, 380V-480V)
024-25522-000
1
34
104
Box, Elec. VSOPD Panel (NEMA 4/12)
371-04156-311
1
34
Box, Elec. VSOPD Panel (NEMA 4X)
371-04156-315
105
Adapter, Bulkhead (NEMA 4/12)
023-20859-000
1
34
Adapter, Bulkhead (NEMA 4X)
025-39306-000
108
Harness, Main (P/H/K Comressors)
571-04137-201
1
34
Harness, Main (Q Compressors)
571-04137-221
114
Nut/Washer Assy. #10-24
021-18024-000
6
34
115
Inductor (200V-240V)
025-37860-000
1
34
Inductor (280V-480V)
025-37861-000
116
Screw, Mach Pan HD Recd 1 1/4-20 x 1/2
021-01853-000
8
34
117
Lockwasher Th Extnl Int 1/4
021-12507-000
4
34
