JOHNSON CONTROLS
61
FORM 160.69-RP3
ISSUE DATE: 5/20/2022
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
91
Plate, Cover Handhole
064 50139 000
1
34
†92
Seal, O-Ring 5-7/8 Id X 1/8
028 12204 000
1
31, 34
93
Screw, Cap 12 Pt Hd 3/8
021 18808 000
3
31
†94
Seal, O-Ring 1-1/8 Id X 1/8
028 12200 000
4
33
95
Plug, PRV Assembly
064 50632 000
2
33
96
Plug, Pipe, Flush Type Hex
023 05366 000
3
31
†97
Seal, O-Ring Neoprene
028 12961 005
2
33
98
Hhcs, 0.375-16 X 2.000 Gr 5 Bl
021 01510 000
16
31
†99
Seal, O-Ring 6-3/4 Id X
028 15446 000
1
31
*103
Bearing, Low Speed Thrust
029 24757 000
1
31
104
Arm, Motor
064 51548 000
1
34
105
Screw, Cap 12pt Hd 3/8
021 11916 000
6
31
106
Screw, Cap 12 Pt Hd 3/8
021 31767 000
2
33
108
Fillpiece, VGD Device
064 51551 000
2
33
109
Hhcs, 0.375-16 X 3.750 Gr 5 Bl
021 17556 000
4
31
†110
Seal, O-Ring Molded 44.050 Id
028 15443 000
1
31
111
Link, External PRV
064 51789 000
1
33
112
Probe, Proximity 2 Piece Kit
364 51806 000
1
32
114
Valve, Stop Ang Vertical
022 09578 000
1
32
†115
Seal, O-Ring 8.234 Id X
028 15078 000
1
33
116
Nut, Hex 5/16 - 18unc-2b
021 02523 000
12
34
117
Rod, Adjustable PRV & VGD
364 51753 860
1
33
118
Ring, Eye Seal
064 51506 000
1
31
119
Retainer, Eye Seal
064 51507 000
1
31
120
Washer, Spring Eye
064 51508 000
1
31
†121
Seal, O-Ring Spliced 33.510 Id
028 15445 000
1
31
†122
Seal, O-Ring 5-5/8 Id X 5-7/8
028 12258 000
1
31
†123
Seal, O-Ring Neoprene
028 12961 001
1
33
†124
Seal, O-Ring 40.690 Id
028 15444 000
1
31
125
Screw, Cap Hex Soc Hd 1/4
021 17765 000
8
31
126
Spacer, Flanged, PRV & VGD
064 50612 000
4
34
127
Screw, Cap 12 Pt Hd 1/2
021 11926 000
4
33, 34
128
Lever, Internal VGD
064 51216 000
1
33
†129
Seal, O-Ring .351 Id X
028 13832 000
3
31, 32
†130
Seal, O-Ring Neoprene
028 12961 004
2
32
131
Screw, Cap 12pt Hd 3/8
021 11920 000
14
31, 34
135
Bushing, Garlock 16du12
029 24100 000
2
33
136
Lockwasher, Hel Spg #10 Reg
021 05265 000
2
33
137
Nut, Hex Mach Scr #10 - 32
021 08670 000
4
33, 34
139
Fillpiece, PRV Linkage
064 47727 000
1
33, 34
140
Screw, Cap 12 Pt Hd 1/2
021 11525 000
1
33
†141
Seal, O-Ring 7/16 Id X 3/32
028 15428 000
1
31
* Included in Bearing Kit (see APPENDIX A for additional details) † Included in O-Ring Kit

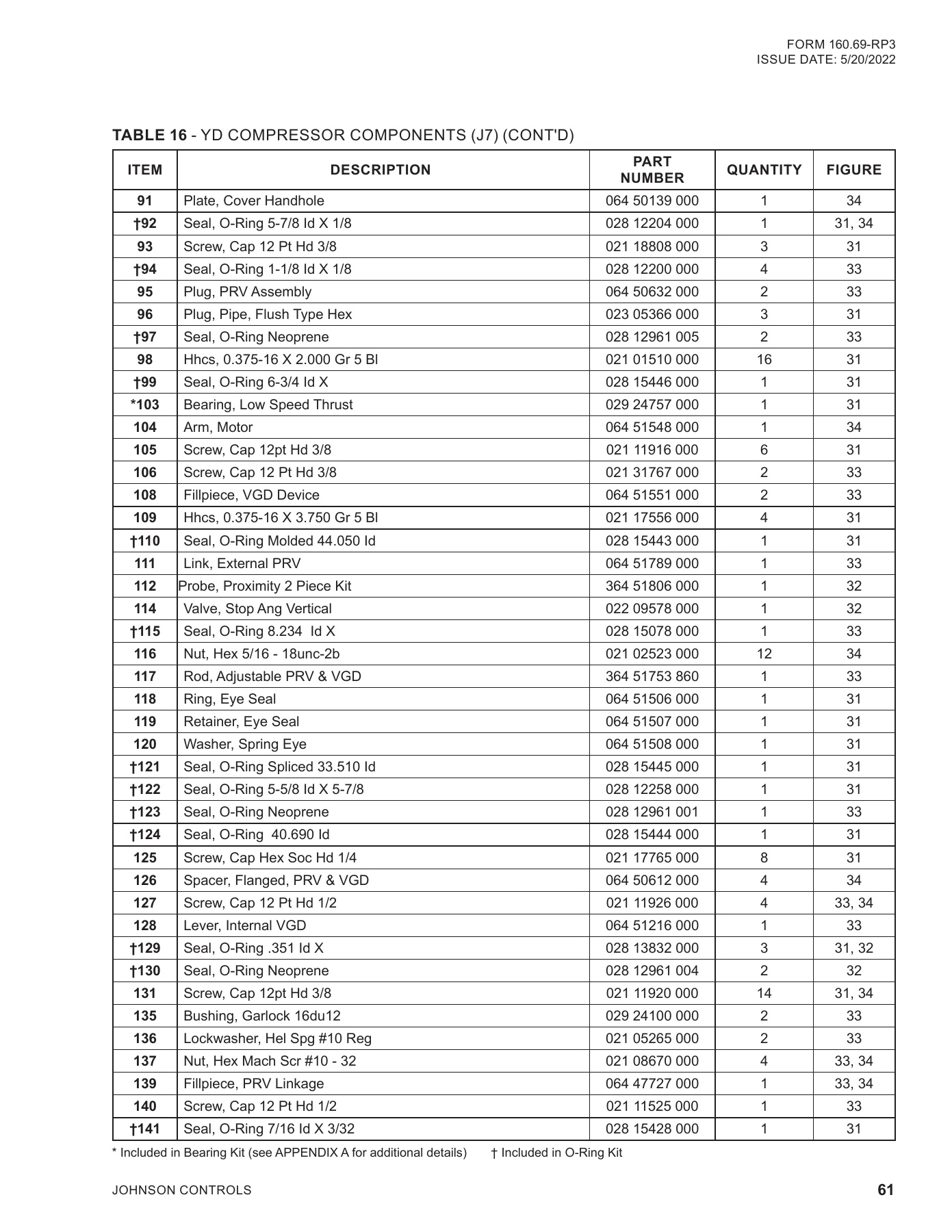

TABLE 16
- YD COMPRESSOR COMPONENTS (J7) (CONTD)
