JOHNSON CONTROLS

60

FORM 160.75-RP1

ISSUE DATE: 5/31/2022

HOT GAS BYPASS COMPONENTS

4” WITH ISOLATION VALVE

TABLE 26 -

4" HOT GAS BYPASS

ITEM

DESCRIPTION

PART NUMBER

QUANTITY/

UNIT

FIGURE

1

Valve, Butterfly 4"

022-10643-004

1

31

1A

O-ring, Neoprene 5.10 ID .275 Thk

028-12961-026

2

5

Valve, Ball 4" Flanged

022-09740-000

1

31

6

Gasket, ANSI 4-150#

028-15075-010

1

31

7

HCS5 .625-11 x 4.75 GR5 Zn

021-32010-038

8

31

8

HCS5 .625-11 x 3.00 GR5 Zn

021-32010-024

8

31

9

Nut, Hex .625-11 x GR5 Zn

021-32010-501

16

31

10

Motor, Actuator

025-38180-000

1

*

11

Kit, PRV Position Sensor

371-02012-001

1

32

4” WITHOUT ISOLATION VALVE

ITEM

DESCRIPTION

PART NUMBER

QUANTITY/

UNIT

FIGURE

1

Valve, Butterfly 4"

022-10643-004

1

31

1A

O-ring, Neoprene 5.10 ID .275 Thk

028-12961-026

2

7

HCs5, .625-11 x 4.75 GR5 Zn

021-32010-038

8

31

9

Nut, Hex .625-11 x GR5 Zn

021-32010-501

8

31

10

Motor, Actuator

025-38180-000

1

*

11

Kit, PRV Position Sensor

371-02012-001

1

32

NOTE:

 Items with an * are NOT represented.

LD13052

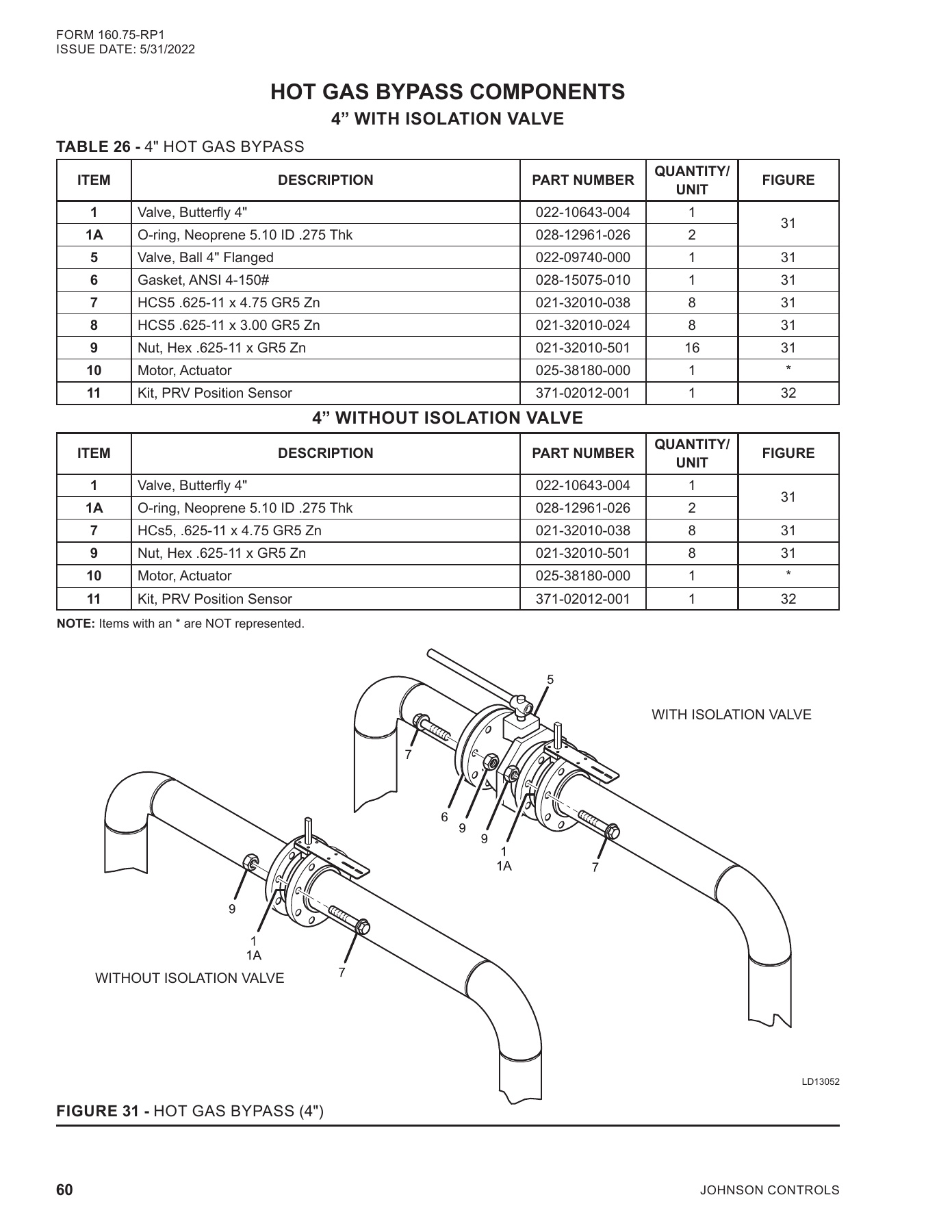

FIGURE 31 -

HOT GAS BYPASS (4")

WITH ISOLATION VALVE

WITHOUT ISOLATION VALVE

Catalog 160-75-RP1 - Page 0059
