JOHNSON CONTROLS
59
FORM 160.75-RP2
ISSUE DATE: 4/20/2018
K7
K7 COMPRESSOR

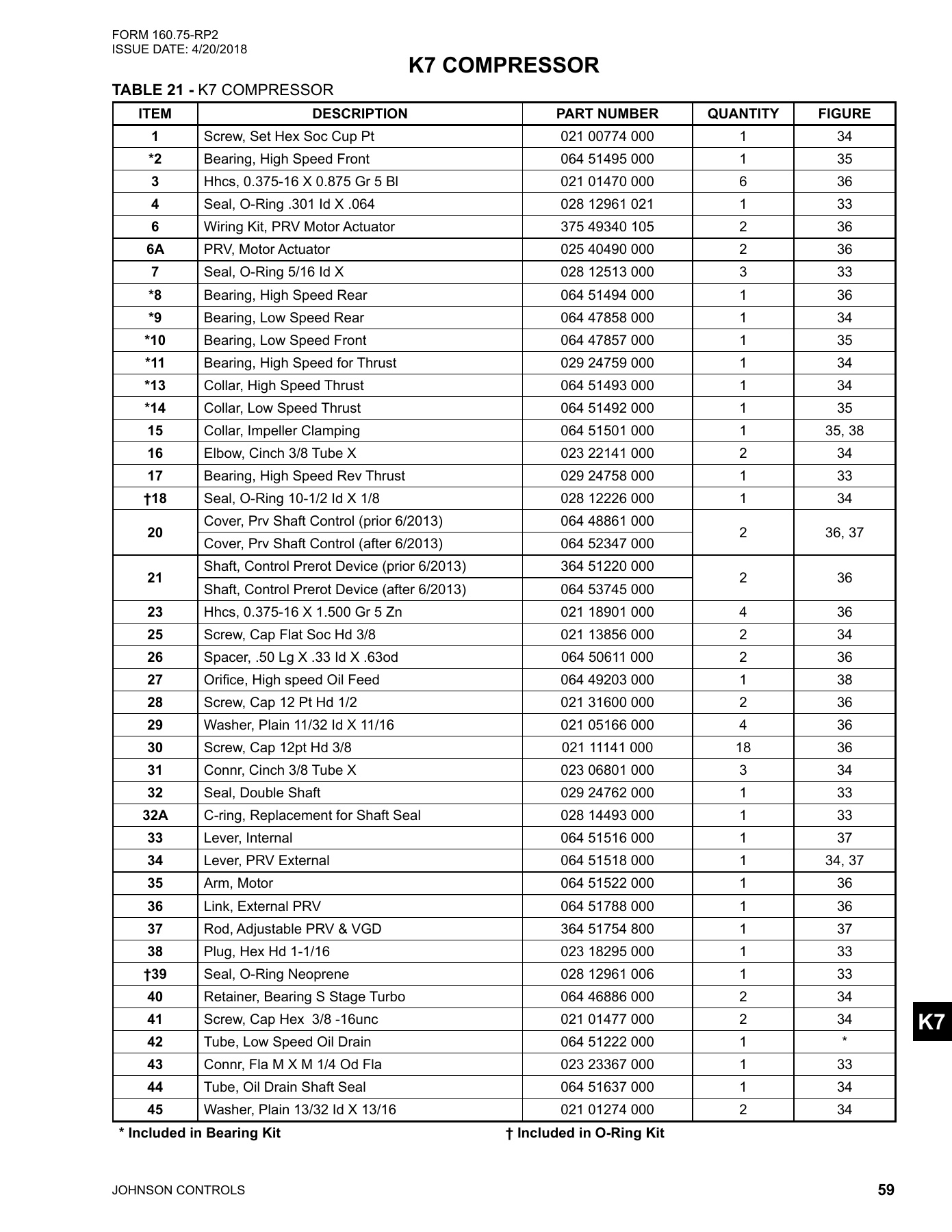

TABLE 21 -
K7 COMPRESSOR
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
1
Screw, Set Hex Soc Cup Pt
021 00774 000
1
34
*2
Bearing, High Speed Front
064 51495 000
1
35
3
Hhcs, 0.375-16 X 0.875 Gr 5 Bl
021 01470 000
6
36
4
Seal, O-Ring .301 Id X .064
028 12961 021
1
33
6
Wiring Kit, PRV Motor Actuator
375 49340 105
2
36
6A
PRV, Motor Actuator
025 40490 000
2
36
7
Seal, O-Ring 5/16 Id X
028 12513 000
3
33
*8
Bearing, High Speed Rear
064 51494 000
1
36
*9
Bearing, Low Speed Rear
064 47858 000
1
34
*10
Bearing, Low Speed Front
064 47857 000
1
35
*11
Bearing, High Speed for Thrust
029 24759 000
1
34
*13
Collar, High Speed Thrust
064 51493 000
1
34
*14
Collar, Low Speed Thrust
064 51492 000
1
35
15
Collar, Impeller Clamping
064 51501 000
1
35, 38
16
Elbow, Cinch 3/8 Tube X
023 22141 000
2
34
17
Bearing, High Speed Rev Thrust
029 24758 000
1
33
†18
Seal, O-Ring 10-1/2 Id X 1/8
028 12226 000
1
34
20
Cover, Prv Shaft Control (prior 6/2013)
064 48861 000
2
36, 37
Cover, Prv Shaft Control (after 6/2013)
064 52347 000
21
Shaft, Control Prerot Device (prior 6/2013)
364 51220 000
2
36
Shaft, Control Prerot Device (after 6/2013)
064 53745 000
23
Hhcs, 0.375-16 X 1.500 Gr 5 Zn
021 18901 000
4
36
25
Screw, Cap Flat Soc Hd 3/8
021 13856 000
2
34
26
Spacer, .50 Lg X .33 Id X .63od
064 50611 000
2
36
27
Orifice, High speed Oil Feed
064 49203 000
1
38
28
Screw, Cap 12 Pt Hd 1/2
021 31600 000
2
36
29
Washer, Plain 11/32 Id X 11/16
021 05166 000
4
36
30
Screw, Cap 12pt Hd 3/8
021 11141 000
18
36
31
Connr, Cinch 3/8 Tube X
023 06801 000
3
34
32
Seal, Double Shaft
029 24762 000
1
33
32A
C-ring, Replacement for Shaft Seal
028 14493 000
1
33
33
Lever, Internal
064 51516 000
1
37
34
Lever, PRV External
064 51518 000
1
34, 37
35
Arm, Motor
064 51522 000
1
36
36
Link, External PRV
064 51788 000
1
36
37
Rod, Adjustable PRV & VGD
364 51754 800
1
37
38
Plug, Hex Hd 1-1/16
023 18295 000
1
33
†39
Seal, O-Ring Neoprene
028 12961 006
1
33
40
Retainer, Bearing S Stage Turbo
064 46886 000
2
34
41
Screw, Cap Hex 3/8 -16unc
021 01477 000
2
34
42
Tube, Low Speed Oil Drain
064 51222 000
1
*
43
Connr, Fla M X M 1/4 Od Fla
023 23367 000
1
33
44
Tube, Oil Drain Shaft Seal
064 51637 000
1
34
45
Washer, Plain 13/32 Id X 13/16
021 01274 000
2
34
* Included in Bearing Kit
† Included in O-Ring Kit
