MOTOR MONITORING
TABLE 17 -
MOTOR MONITORING
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
1
Motor Monitoring Shielded Cable
025-43432-000
20 FT.
33,35
1a
Enclosure
371-05519-001
1
34
2
Motor Monitoring CONN CA STR 1/2
025-28720-000
1
35
2a
Grommet 1-3/8" O.D. x 5/16" hole
028-04346-000
1
34
3
Conn Ca Str 1/2"
025-28720-000
1
34
4
Ground Bar
025-42852-000
2
34
5
Screw/Washer Assy 8-32 x 5/8
021-18667-000
1
34
6
Spacer
021-17780-000
4
34
7
Circuit Board
031-02893-001
1
34
8
Nut, Hex
021-18025-000
4
34
10
Ring Seal 0 1/2" Elec Cond
025-09613-000
1
34
11
Lknt, Cnd 1/2" IPS
025-05701-000
1
34
12
Accelerometer
025-42937-000
2
35
13
Accelermeter Cable
025-42944-000
2
35
14
Accelermeter Glue Mount
025-42945-000
2
35

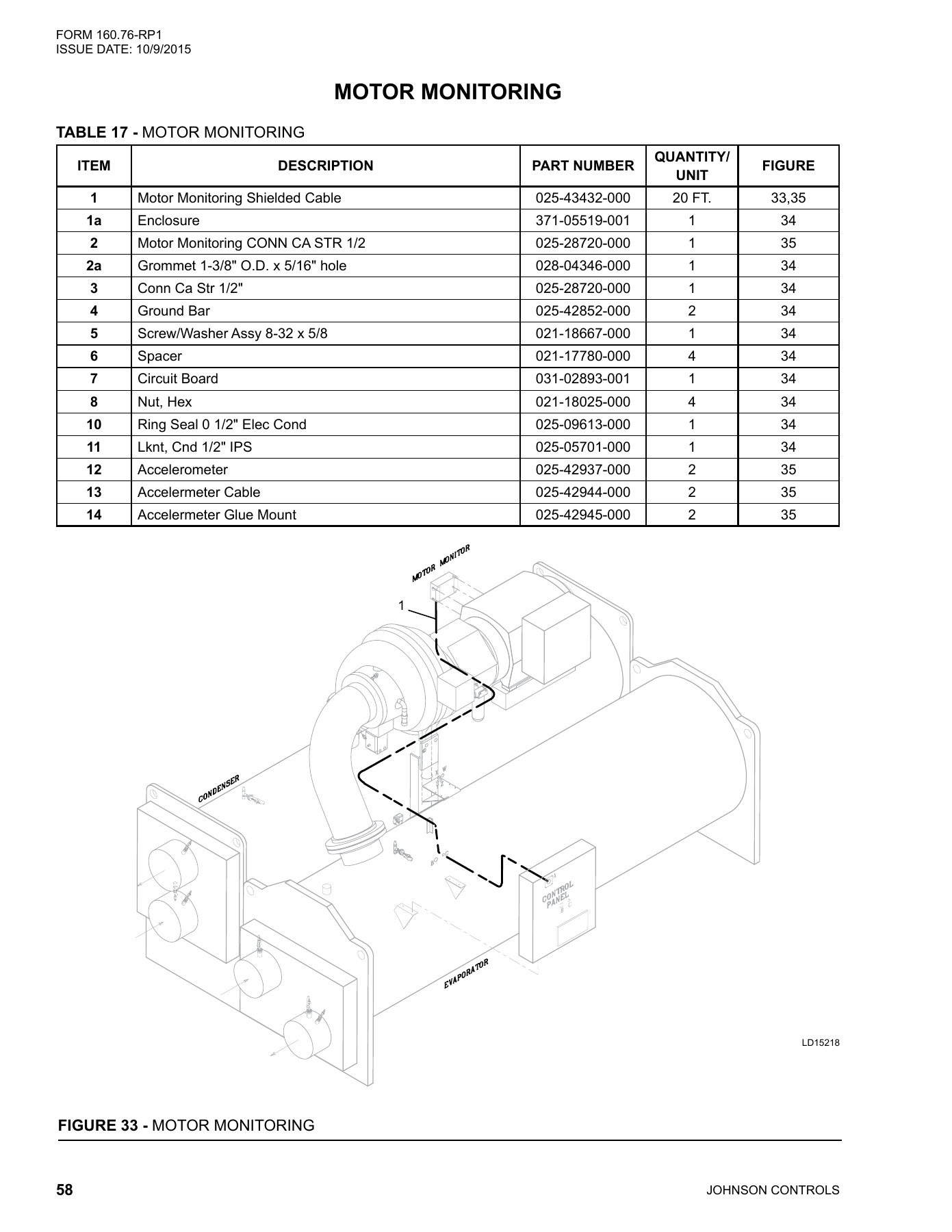

FIGURE 33 -
MOTOR MONITORING
