JOHNSON CONTROLS
57
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

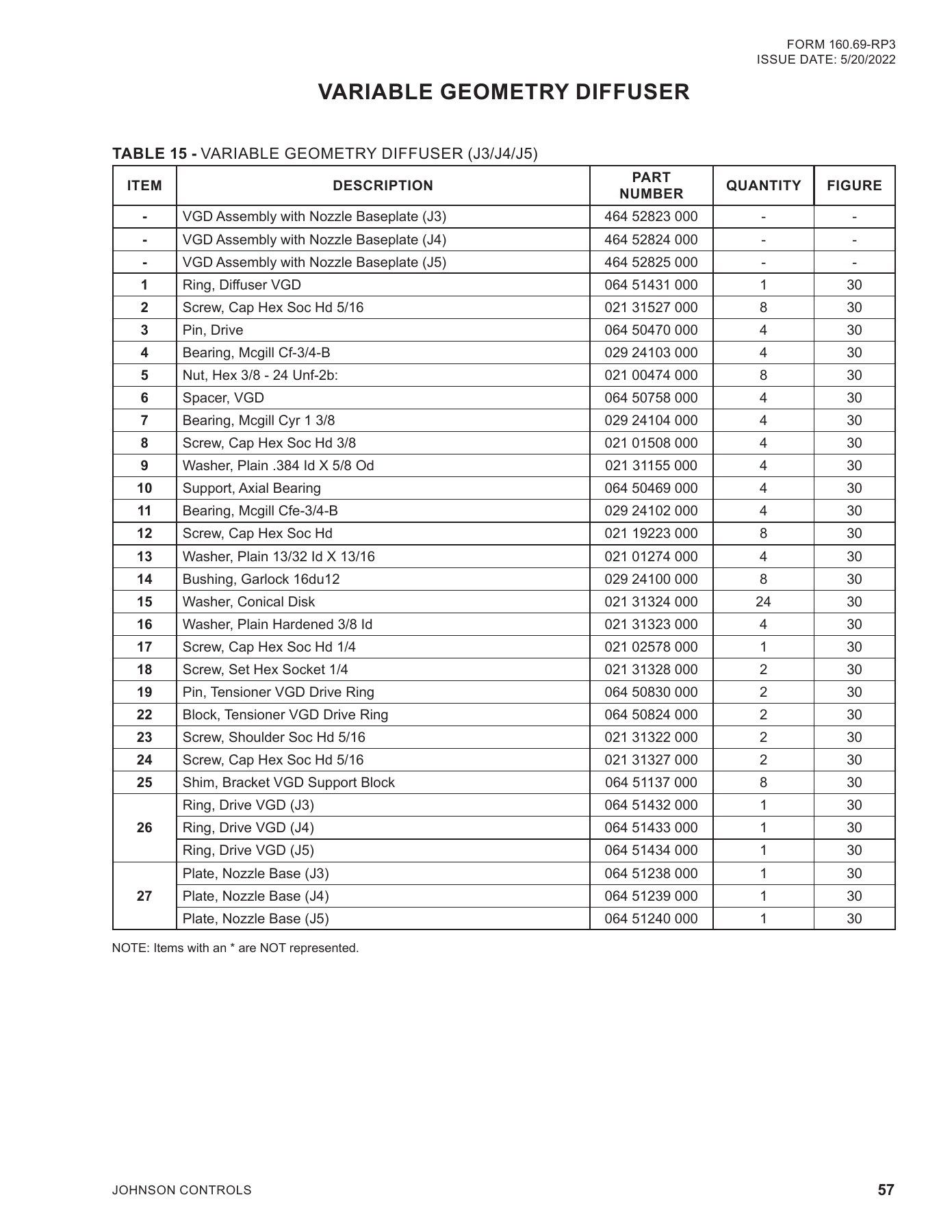

TABLE 15 -
VARIABLE GEOMETRY DIFFUSER (J3/J4/J5)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
-
VGD Assembly with Nozzle Baseplate (J3)
464 52823 000
-
-
-
VGD Assembly with Nozzle Baseplate (J4)
464 52824 000
-
-
-
VGD Assembly with Nozzle Baseplate (J5)
464 52825 000
-
-
1
Ring, Diffuser VGD
064 51431 000
1
30
2
Screw, Cap Hex Soc Hd 5/16
021 31527 000
8
30
3
Pin, Drive
064 50470 000
4
30
4
Bearing, Mcgill Cf-3/4-B
029 24103 000
4
30
5
Nut, Hex 3/8 - 24 Unf-2b:
021 00474 000
8
30
6
Spacer, VGD
064 50758 000
4
30
7
Bearing, Mcgill Cyr 1 3/8
029 24104 000
4
30
8
Screw, Cap Hex Soc Hd 3/8
021 01508 000
4
30
9
Washer, Plain .384 Id X 5/8 Od
021 31155 000
4
30
10
Support, Axial Bearing
064 50469 000
4
30
11
Bearing, Mcgill Cfe-3/4-B
029 24102 000
4
30
12
Screw, Cap Hex Soc Hd
021 19223 000
8
30
13
Washer, Plain 13/32 Id X 13/16
021 01274 000
4
30
14
Bushing, Garlock 16du12
029 24100 000
8
30
15
Washer, Conical Disk
021 31324 000
24
30
16
Washer, Plain Hardened 3/8 Id
021 31323 000
4
30
17
Screw, Cap Hex Soc Hd 1/4
021 02578 000
1
30
18
Screw, Set Hex Socket 1/4
021 31328 000
2
30
19
Pin, Tensioner VGD Drive Ring
064 50830 000
2
30
22
Block, Tensioner VGD Drive Ring
064 50824 000
2
30
23
Screw, Shoulder Soc Hd 5/16
021 31322 000
2
30
24
Screw, Cap Hex Soc Hd 5/16
021 31327 000
2
30
25
Shim, Bracket VGD Support Block
064 51137 000
8
30
26
Ring, Drive VGD (J3)
064 51432 000
1
30
Ring, Drive VGD (J4)
064 51433 000
1
30
Ring, Drive VGD (J5)
064 51434 000
1
30
27
Plate, Nozzle Base (J3)
064 51238 000
1
30
Plate, Nozzle Base (J4)
064 51239 000
1
30
Plate, Nozzle Base (J5)
064 51240 000
1
30
NOTE: Items with an * are NOT represented.
VARIABLE GEOMETRY DIFFUSER
