K4 COMPRESSOR

TABLE 19 -

PRE-ROTATION DEVICE K4

ITEM

DESCRIPTION

PART NUMBER

QUANTITY

FIGURE

-

Device, PRV K4

364 51772 001

1

31

1

Ring, Vane Driving K3-4

064 51771 000

1

31

2

Vane, Pre-Rotation K3-4 (prior 3/2012)

 064 51769 000

9

31

Vane, Pre-Rotation K3-4 (after 3/2012)

029 26312 000

9

31

3

Arm, PRV

064 47508 000

9

31

4

Spacer, PRV Arm K3-4

064 51652 000

9

31

5

Washer, Special PRV

064 47516 000

9

31

6

Washer, Plain 17/64 ID 1/2

021 11973 000

18

31

7

Stud, Ball 1/4-28 Unf

029 15924 000

9

31

8

Screw, Cap 12pt Hd 1/2

021 11515 000

9

31

9

Nut, Selflock 1/4-28 Unf

021 12943 000

9

31

11

Housing, PRV K4

064 51807 000

1

31

12

Bearing, Ball Deep Groove

029 25085 000

18

31

13

Spacer, PRV Bearing

064 51646 000

9

31

14

Spring, Overlap Type Wave

029 25086 000

18

31

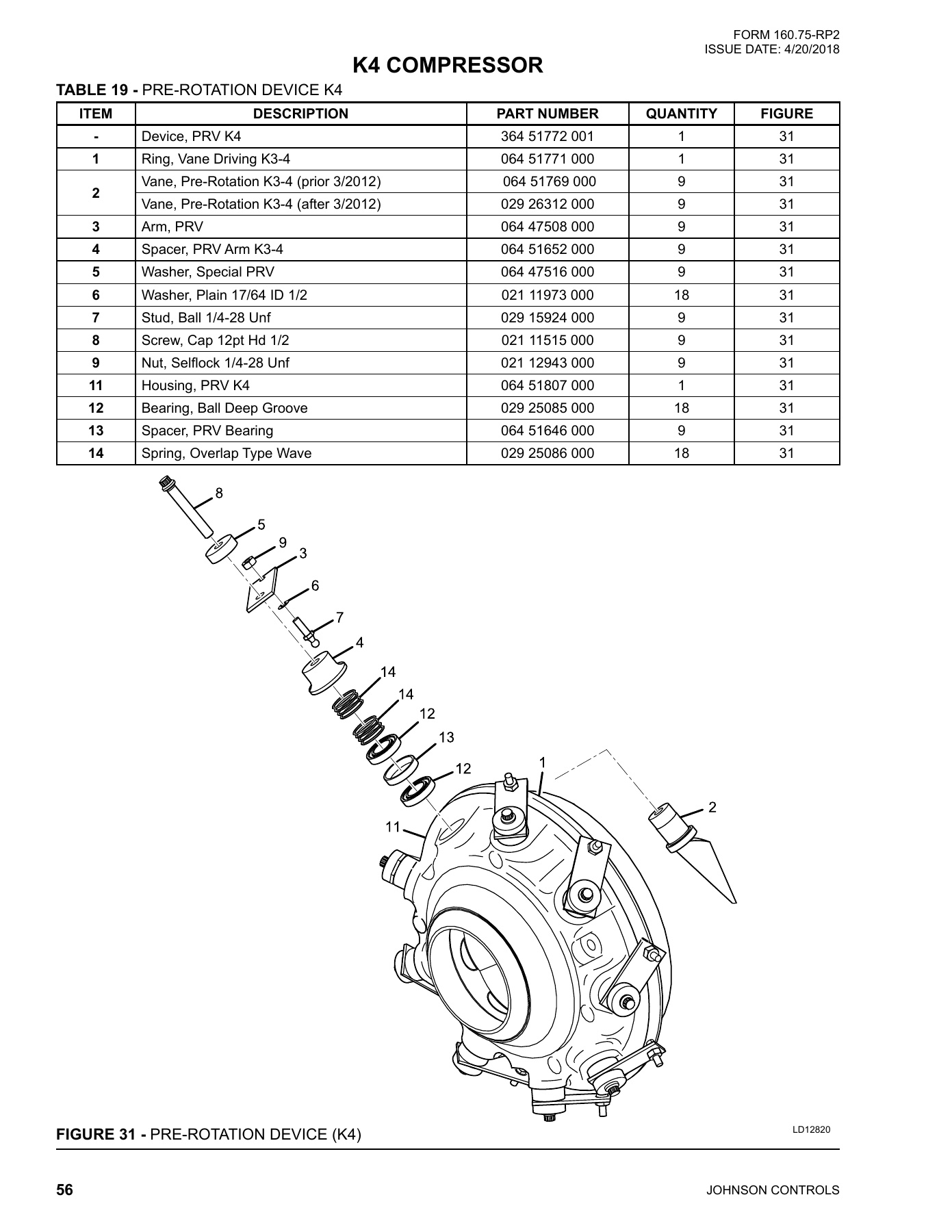

FIGURE 31 -

PRE-ROTATION DEVICE (K4)

LD12820
