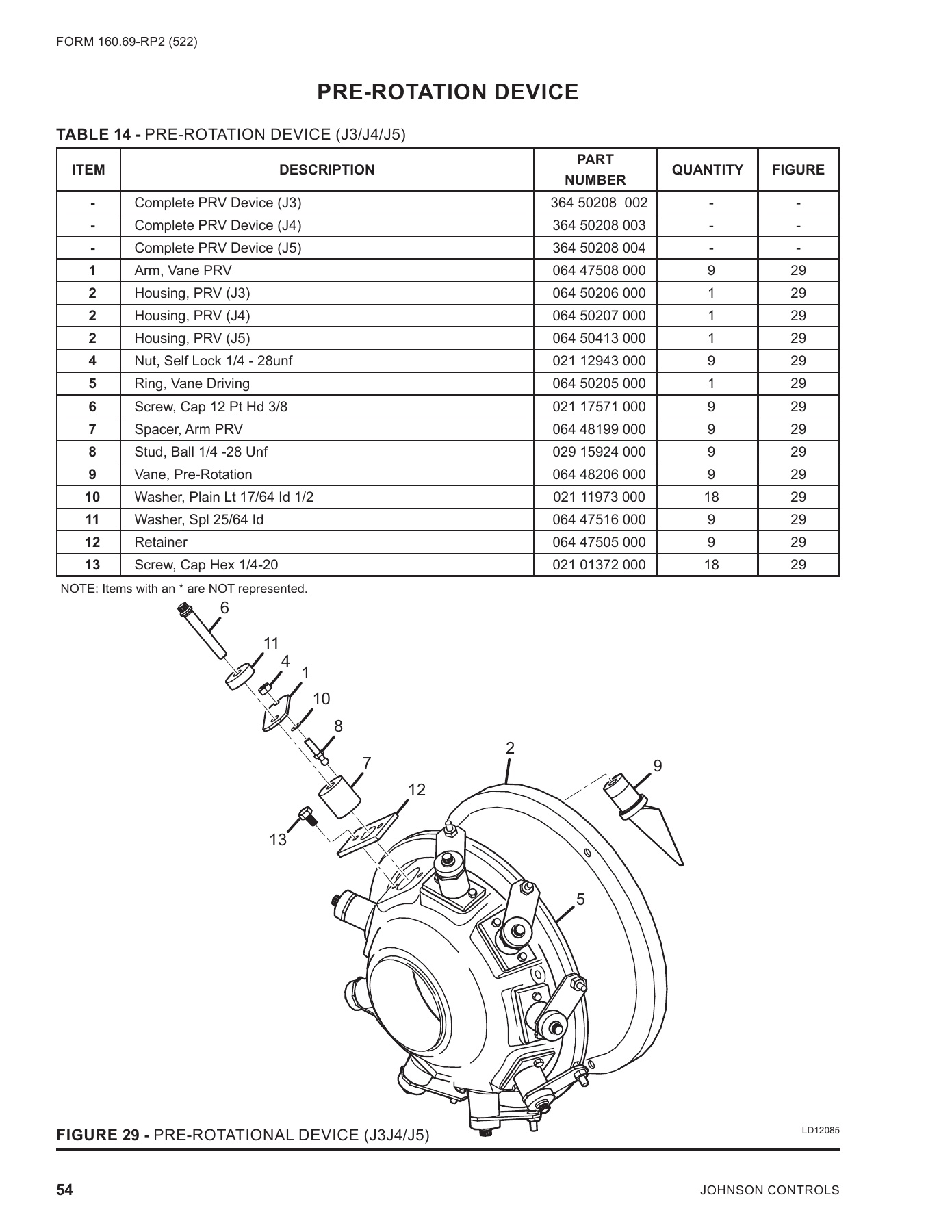

FIGURE 29 -

PRE-ROTATIONAL DEVICE (J3J4/J5)

LD12085

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY

FIGURE

-

Complete PRV Device (J3)

364 50208  002

-

-

-

Complete PRV Device (J4)

364 50208 003

-

-

-

Complete PRV Device (J5)

364 50208 004

-

-

1

Arm, Vane PRV

064 47508 000

9

29

2

Housing, PRV (J3)

064 50206 000

1

29

2

Housing, PRV (J4)

064 50207 000

1

29

2

Housing, PRV (J5)

064 50413 000

1

29

4

Nut, Self Lock 1/4 - 28unf

021 12943 000

9

29

5

Ring, Vane Driving

064 50205 000

1

29

6

Screw, Cap 12 Pt Hd 3/8

021 17571 000

9

29

7

Spacer, Arm PRV

064 48199 000

9

29

8

Stud, Ball 1/4 -28 Unf

029 15924 000

9

29

9

Vane, Pre-Rotation

064 48206 000

9

29

10

Washer, Plain Lt 17/64 Id 1/2

021 11973 000

18

29

11

Washer, Spl 25/64 Id

064 47516 000

9

29

12

Retainer

064 47505 000

9

29

13

Screw, Cap Hex 1/4-20

021 01372 000

18

29

NOTE: Items with an * are NOT represented.

PRE-ROTATION DEVICE

TABLE 14 -

PRE-ROTATION DEVICE (J3/J4/J5)

11

6

4

1

10

8

13

12

7

2

5

9
