yoRk iNteRNAtioNAl
52
FoRm 180.30-Rpstl

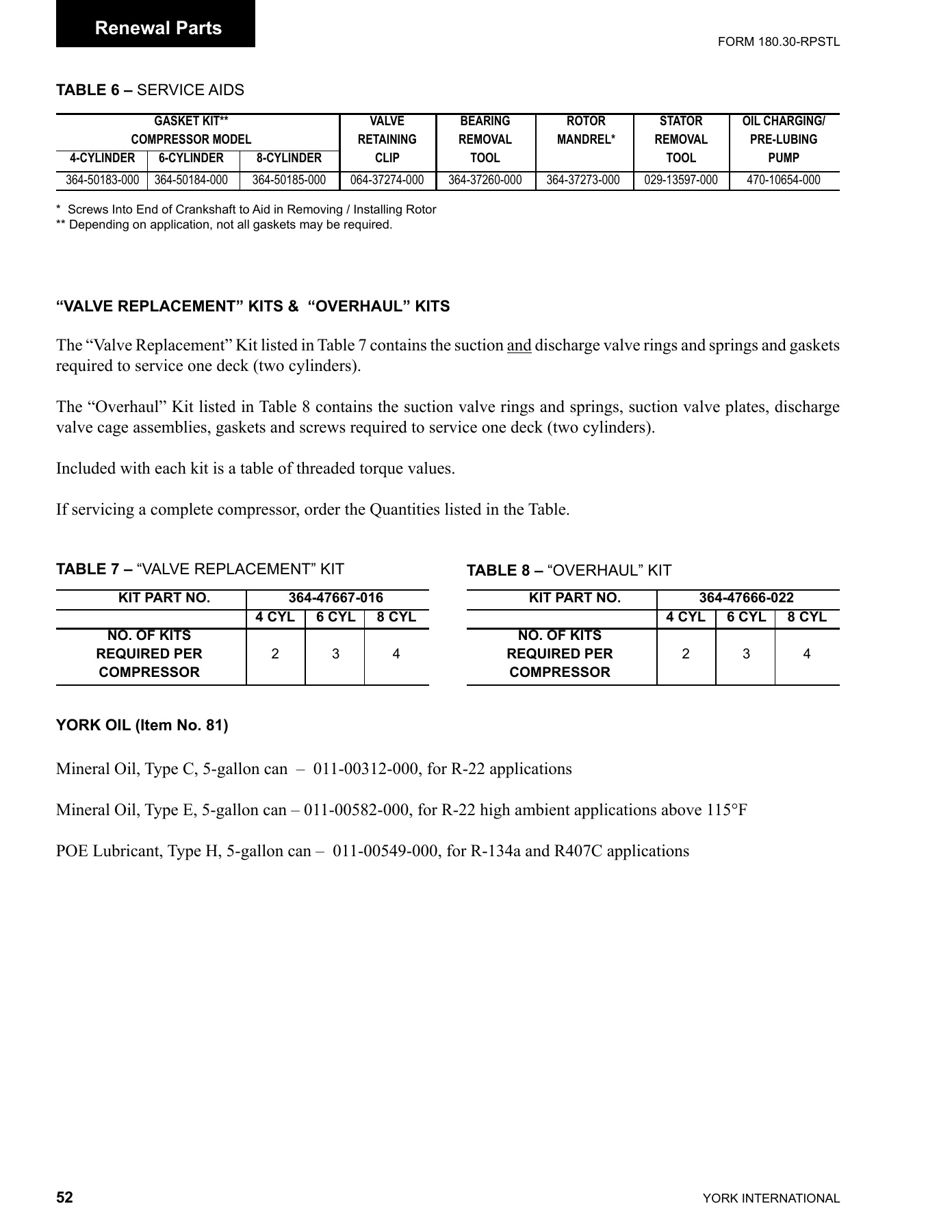

table 6 –
seRViCe AiDs
“ValVe replacement” kits & “oVerhaul” kits
The “Valve Replacement” Kit listed in Table 7 contains the suction and discharge valve rings and springs and gaskets
required to service one deck (two cylinders).
The “Overhaul” Kit listed in Table 8 contains the suction valve rings and springs, suction valve plates, discharge
valve cage assemblies, gaskets and screws required to service one deck (two cylinders).
Included with each kit is a table of threaded torque values.
If servicing a complete compressor, order the Quantities listed in the Table.
york oil (item no. 81)
Mineral Oil, Type C, 5-gallon can – 011-00312-000, for R-22 applications
Mineral Oil, Type E, 5-gallon can – 011-00582-000, for R-22 high ambient applications above 115°F
POE Lubricant, Type H, 5-gallon can – 011-00549-000, for R-134a and R407C applications
gaSKet Kit**
ValVe
bearing
rotor
Stator
oil charging/
comPreSSor model
retaining
remoVal
mandrel*
remoVal
Pre-lubing
4-cylinder
6-cylinder
8-cylinder
cliP
tool
tool
PumP
364-50183-000 364-50184-000
364-50185-000
064-37274-000
364-37260-000
364-37273-000
029-13597-000
470-10654-000
* screws into end of Crankshaft to Aid in Removing / installing Rotor
** Depending on application, not all gaskets may be required.
table 7 –
“VAlVe ReplACemeNt” kit
table 8 –
“oVeRHAUl” kit
kit part no.
364-47667-016
4 cyl 6 cyl 8 cyl
no. of kits
reQuired per
2
3
4
compressor
kit part no.
364-47666-022
4 cyl 6 cyl 8 cyl
no. of kits
reQuired per
2
3
4
compressor
renewal parts
