JOHNSON CONTROLS
52
FORM 160.76-RP1
ISSUE DATE: 10/9/2015
ITEM
DESCRIPTION
PART NUMBER
SAP
FIGURE
153-5
Harness 1SOL To Control Panel YKH
392-31789-066
5147871
29
Conduit Flexible Id=3/8In Id=.445In Ps
025-31302-001
738588
Connr, Conduit Flex Straight 3/8" Adapta
025-31309-001
265735
Connector Iso 4400/Din
025-37876-000
117987
Wire Elec 18 Awg White
025-12729-000
144788
Wire Elec 18 Awg Black
025-08913-000
588753
Term Pin Wire Range 20-14
025-22214-000
144768
153-6
Harness Prv Motor To Control Panel Ykh
392-31790-033
5147872
32
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr. Conduit Flex Straight 1/2 Swivel
025-37868-000
739487
Connector Plug Hsg, 9 Pos
025-38172-000
118000
Wire Elec 18 Awg Black
025-08913-000
588753
Wire Elec 18 Awg White
025-12729-000
144788
Cont Soc Awg Wire Size 18-14
025-37875-000
739491
Term Pin Wire Range 20-14
025-22214-000
144768
153-7
Harness VSOP Panel To Control Panel YKH
392-31791-039
5147873
29,30,32
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr, Conduit Flex Angle
025-31316-001
144731
Wire Elec 18 Awg Black
025-08913-000
588753
Cont Soc Wire Range 20-14
025-22215-000
62701
Term Pin Wire Range 20-14
025-22214-000
144768
153-8
Connr, Conduit Flex Angle
025-31315-001
144730
32
153-9
Connr, Conduit Flex Angle
025-31316-001
144731
32
153-10
Harness 1HTR To Control Panel YKH
392-31792-081
5147875
29
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr, Conduit Flex Angle
025-31316-001
144731
Wire Elec 14 Awg White
025-12714-000
737342
Wire Elec 14 Awg Black
025-08897-000
737229
Wire Elec 14 Awg Grn/Yel
025-29791-000
618134
Term Wire 16-14 Awg
025-19376-000
737519
Term Pin Wire Range 20-14
025-22214-000
144768
153-11
Harness Oil Pump To VSOP Panel YKH
392-31793-046
5147876
29,32
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr, Conduit Flex Straight 1/2" Adapta
025-31310-001
618160
Wire Elec 14 Awg Black
025-08897-000
737229
Term Push On Straight
025-06642-000
737207
Cont Soc Wire Range 20-14
025-22215-000
62701
153-12
Connector Plug 15 R=5 6.35Mm
025-20918-000
737623
32
156-13
Fitting Liquid Tight 1/2 Npt
025-28720-000
117421
32
15314
Locknut, 1/2 Npt, Nylon Black;
025-34090-000
435354
32
154
Connector Din 43650
025-37805-000
144713
30

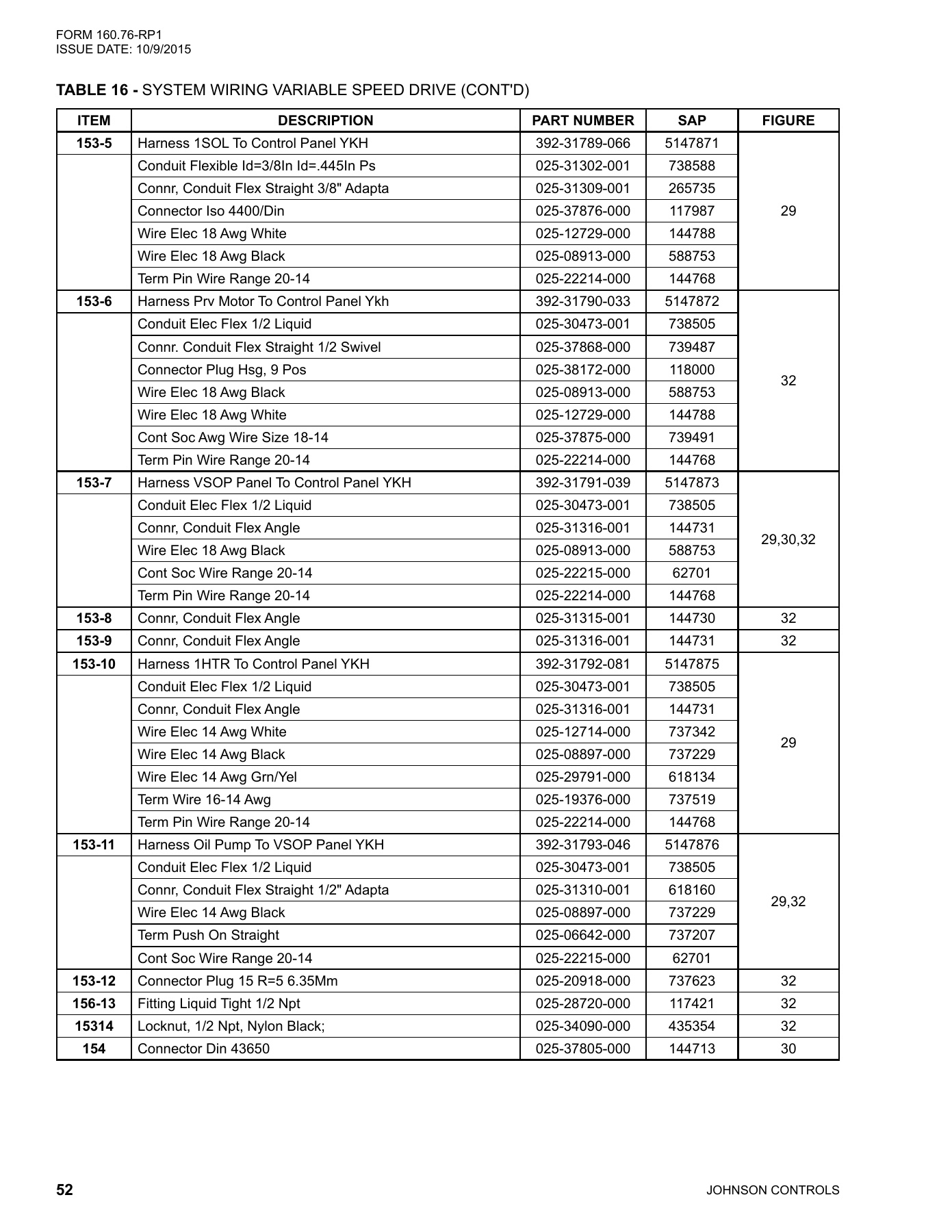

TABLE 16 -
SYSTEM WIRING VARIABLE SPEED DRIVE (CONTD)
