JOHNSON CONTROLS
52
FORM 160.73-RP5 (707)

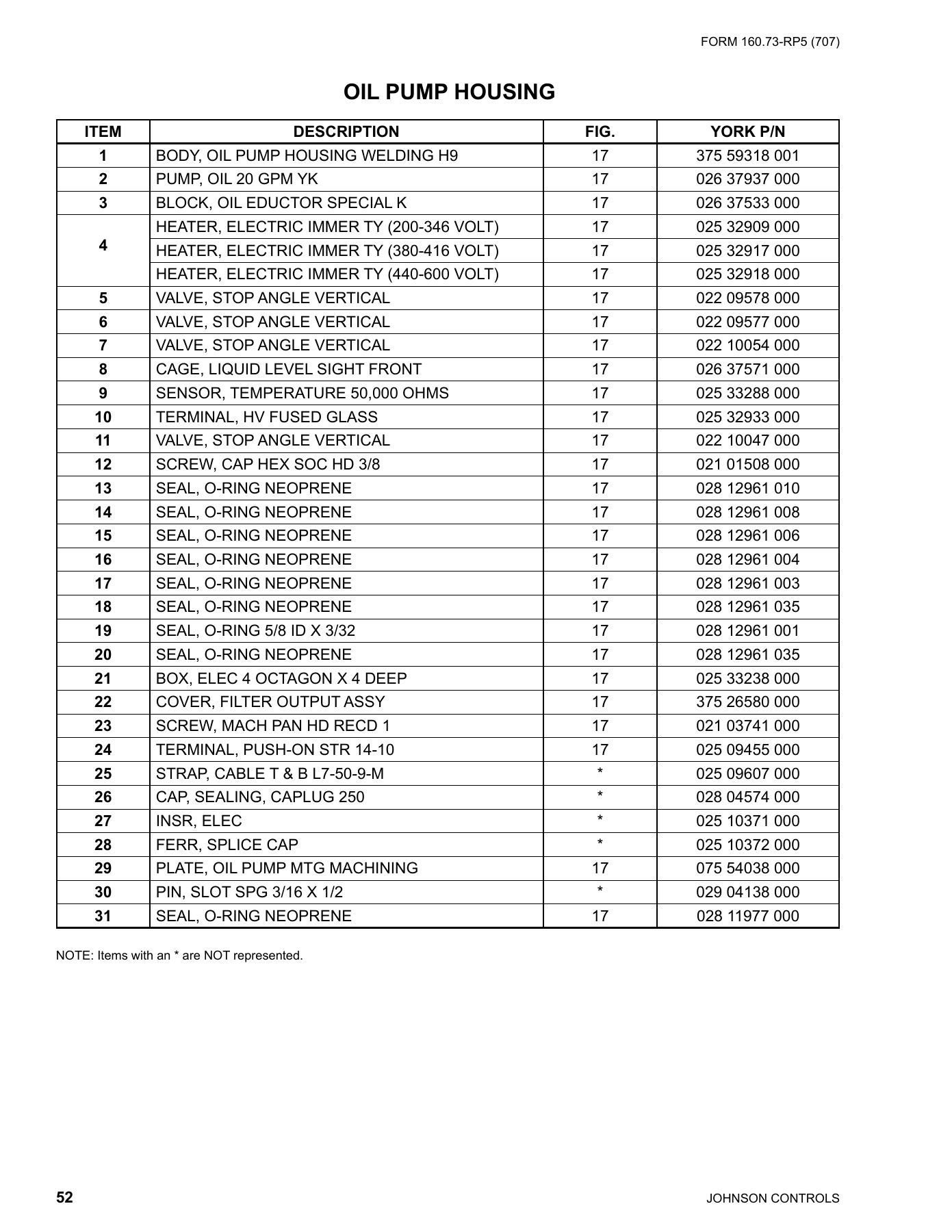

OIL PUMP HOUSING
ITEM
DESCRIPTION
FIG.
YORK P/N
1
BODY, OIL PUMP HOUSING WELDING H9
17
375 59318 001
2
PUMP, OIL 20 GPM YK
17
026 37937 000
3
BLOCK, OIL EDUCTOR SPECIAL K
17
026 37533 000
4
HEATER, ELECTRIC IMMER TY (200-346 VOLT)
17
025 32909 000
HEATER, ELECTRIC IMMER TY (380-416 VOLT)
17
025 32917 000
HEATER, ELECTRIC IMMER TY (440-600 VOLT)
17
025 32918 000
5
VALVE, STOP ANGLE VERTICAL
17
022 09578 000
6
VALVE, STOP ANGLE VERTICAL
17
022 09577 000
7
VALVE, STOP ANGLE VERTICAL
17
022 10054 000
8
CAGE, LIQUID LEVEL SIGHT FRONT
17
026 37571 000
9
SENSOR, TEMPERATURE 50,000 OHMS
17
025 33288 000
10
TERMINAL, HV FUSED GLASS
17
025 32933 000
11
VALVE, STOP ANGLE VERTICAL
17
022 10047 000
12
SCREW, CAP HEX SOC HD 3/8
17
021 01508 000
13
SEAL, O-RING NEOPRENE
17
028 12961 010
14
SEAL, O-RING NEOPRENE
17
028 12961 008
15
SEAL, O-RING NEOPRENE
17
028 12961 006
16
SEAL, O-RING NEOPRENE
17
028 12961 004
17
SEAL, O-RING NEOPRENE
17
028 12961 003
18
SEAL, O-RING NEOPRENE
17
028 12961 035
19
SEAL, O-RING 5/8 ID X 3/32
17
028 12961 001
20
SEAL, O-RING NEOPRENE
17
028 12961 035
21
BOX, ELEC 4 OCTAGON X 4 DEEP
17
025 33238 000
22
COVER, FILTER OUTPUT ASSY
17
375 26580 000
23
SCREW, MACH PAN HD RECD 1
17
021 03741 000
24
TERMINAL, PUSH-ON STR 14-10
17
025 09455 000
25
STRAP, CABLE T & B L7-50-9-M
*
025 09607 000
26
CAP, SEALING, CAPLUG 250
*
028 04574 000
27
INSR, ELEC
*
025 10371 000
28
FERR, SPLICE CAP
*
025 10372 000
29
PLATE, OIL PUMP MTG MACHINING
17
075 54038 000
30
PIN, SLOT SPG 3/16 X 1/2
*
029 04138 000
31
SEAL, O-RING NEOPRENE
17
028 11977 000
NOTE: Items with an * are NOT represented.
