FoRm 180.30-Rpstl
51
yoRk iNteRNAtioNAl

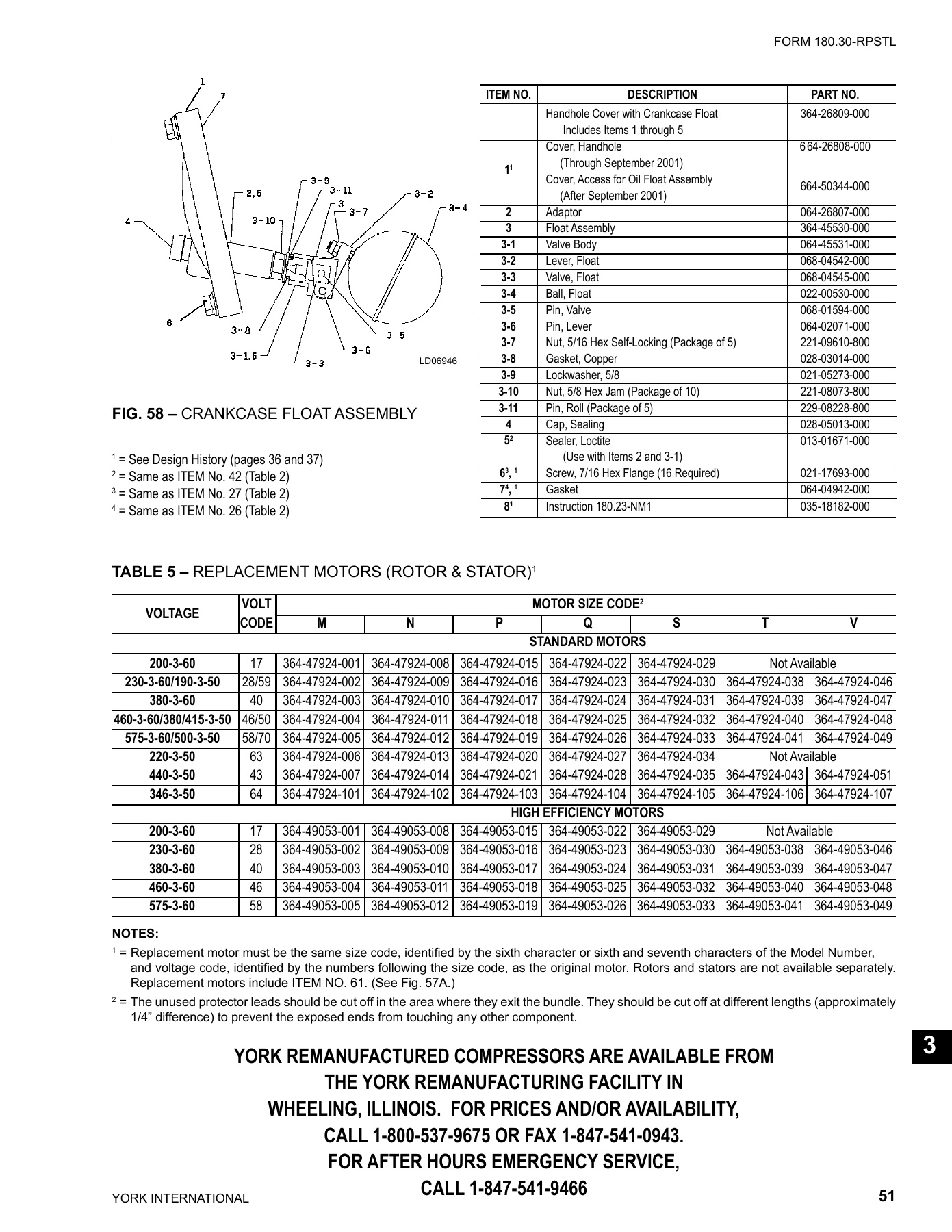

fig. 58 –
CRANkCAse FloAt AssemBly
yorK remanufactured comPreSSorS are aVailable from
the yorK remanufacturing facility in
Wheeling, illinoiS. for PriceS and/or aVailability,
call 1-800-537-9675 or faX 1-847-541-0943.
for after hourS emergency SerVice,
call 1-847-541-9466
item no.
deScriPtion
Part no.
handhole Cover with Crankcase Float
364-26809-000
Includes Items 1 through 5
Cover, handhole
6 64-26808-000
(Through September 2001)
1
1
Cover, Access for Oil Float Assembly
(After September 2001)
664-50344-000
2
Adaptor
064-26807-000
3
Float Assembly
364-45530-000
3-1
Valve Body
064-45531-000
3-2
lever, Float
068-04542-000
3-3
Valve, Float
068-04545-000
3-4
Ball, Float
022-00530-000
3-5
Pin, Valve
068-01594-000
3-6
Pin, lever
064-02071-000
3-7
Nut, 5/16 hex Self-locking (Package of 5)
221-09610-800
3-8
Gasket, Copper
028-03014-000
3-9
lockwasher, 5/8
021-05273-000
3-10
Nut, 5/8 hex Jam (Package of 10)
221-08073-800
3-11
Pin, Roll (Package of 5)
229-08228-800
4
Cap, Sealing
028-05013-000
5
2
Sealer, loctite
013-01671-000
(Use with Items 2 and 3-1)
6
3
,
1
Screw, 7/16 hex Flange (16 Required)
021-17693-000
7
4
,
1
Gasket
064-04942-000
8
1
Instruction 180.23-NM1
035-18182-000
notes:
1
= Replacement motor must be the same size code, identified by the sixth character or sixth and seventh characters of the Model Number,
and voltage code, identified by the numbers following the size code, as the original motor. Rotors and stators are not available separately.
Replacement motors include item No. 61. (see Fig. 57A.)
2
= the unused protector leads should be cut off in the area where they exit the bundle. they should be cut off at different lengths (approximately
1/4” difference) to prevent the exposed ends from touching any other component.
Volt
motor Size code
2
Voltage
code
m
n
P
q
S
t
V
Standard motorS
200-3-60
17 364-47924-001 364-47924-008 364-47924-015 364-47924-022 364-47924-029 Not Available
230-3-60/190-3-50 28/59 364-47924-002 364-47924-009 364-47924-016 364-47924-023 364-47924-030 364-47924-038 364-47924-046
380-3-60
40 364-47924-003 364-47924-010 364-47924-017 364-47924-024 364-47924-031 364-47924-039 364-47924-047
460-3-60/380/415-3-50 46/50 364-47924-004 364-47924-011 364-47924-018 364-47924-025 364-47924-032 364-47924-040 364-47924-048
575-3-60/500-3-50 58/70 364-47924-005 364-47924-012 364-47924-019 364-47924-026 364-47924-033 364-47924-041 364-47924-049
220-3-50
63 364-47924-006 364-47924-013 364-47924-020 364-47924-027 364-47924-034 Not Available
440-3-50
43 364-47924-007 364-47924-014 364-47924-021 364-47924-028 364-47924-035 364-47924-043 364-47924-051
346-3-50
64 364-47924-101 364-47924-102 364-47924-103 364-47924-104 364-47924-105 364-47924-106 364-47924-107
high efficiency motorS
200-3-60
17 364-49053-001 364-49053-008 364-49053-015 364-49053-022 364-49053-029 Not Available
230-3-60
28 364-49053-002 364-49053-009 364-49053-016 364-49053-023 364-49053-030 364-49053-038 364-49053-046
380-3-60
40 364-49053-003 364-49053-010 364-49053-017 364-49053-024 364-49053-031 364-49053-039 364-49053-047
460-3-60
46 364-49053-004 364-49053-011 364-49053-018 364-49053-025 364-49053-032 364-49053-040 364-49053-048
575-3-60
58 364-49053-005 364-49053-012 364-49053-019 364-49053-026 364-49053-033 364-49053-041 364-49053-049
table 5 –
ReplACemeNt motoRs (RotoR & stAtoR)
1
lD06946
1
= See Design history (pages 36 and 37)
2
= Same as ITeM No. 42 (Table 2)
3
= Same as ITeM No. 27 (Table 2)
4
= Same as ITeM No. 26 (Table 2)
3
