FORM 160.75-RP1
ISSUE DATE: 5/31/2022

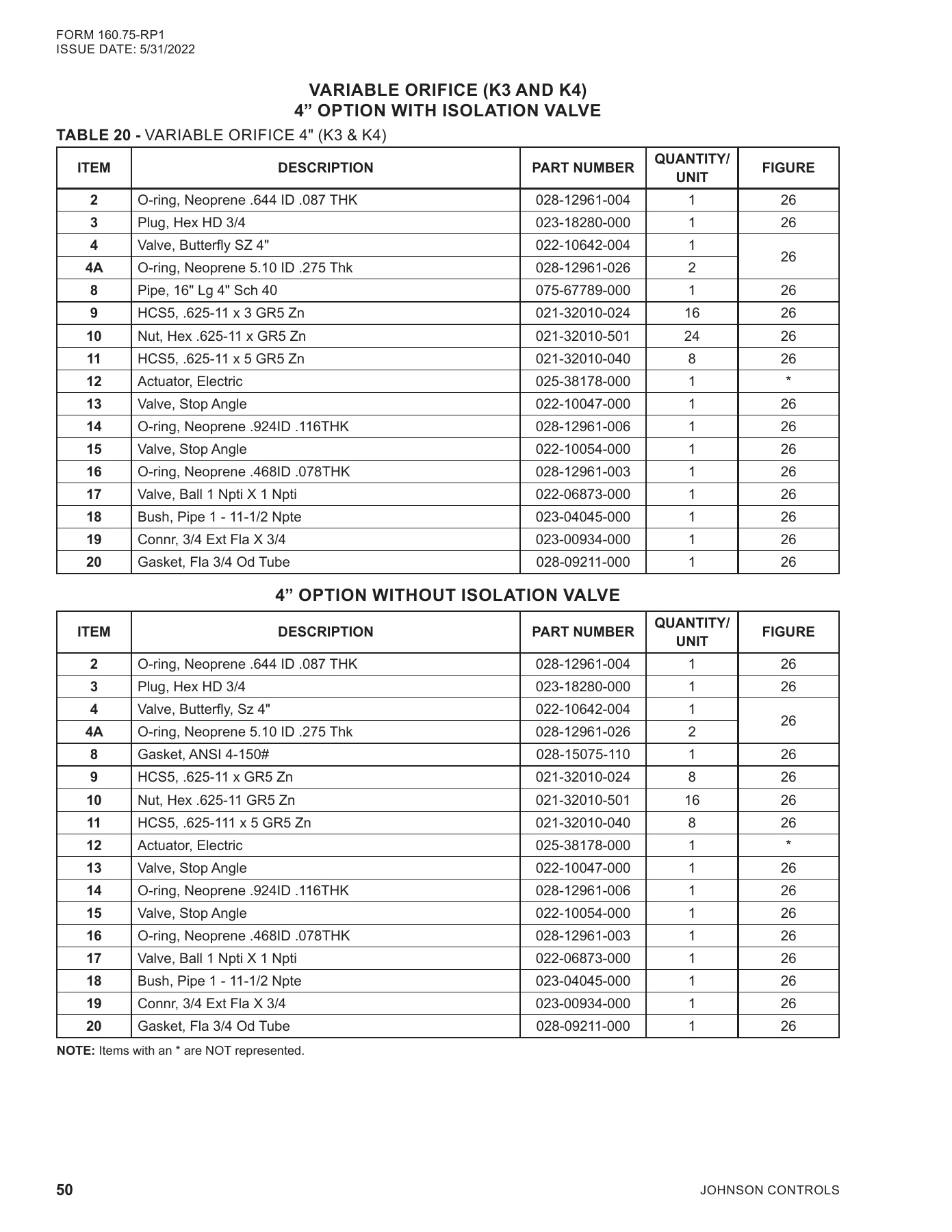

VARIABLE ORIFICE (K3 AND K4)
4” OPTION WITH ISOLATION VALVE
TABLE 20 -
VARIABLE ORIFICE 4" (K3 & K4)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
2
O-ring, Neoprene .644 ID .087 THK
028-12961-004
1
26
3
Plug, Hex HD 3/4
023-18280-000
1
26
4
Valve, Butterfly SZ 4"
022-10642-004
1
26
4A
O-ring, Neoprene 5.10 ID .275 Thk
028-12961-026
2
8
Pipe, 16" Lg 4" Sch 40
075-67789-000
1
26
9
HCS5, .625-11 x 3 GR5 Zn
021-32010-024
16
26
10
Nut, Hex .625-11 x GR5 Zn
021-32010-501
24
26
11
HCS5, .625-11 x 5 GR5 Zn
021-32010-040
8
26
12
Actuator, Electric
025-38178-000
1
*
13
Valve, Stop Angle
022-10047-000
1
26
14
O-ring, Neoprene .924ID .116THK
028-12961-006
1
26
15
Valve, Stop Angle
022-10054-000
1
26
16
O-ring, Neoprene .468ID .078THK
028-12961-003
1
26
17
Valve, Ball 1 Npti X 1 Npti
022-06873-000
1
26
18
Bush, Pipe 1 - 11-1/2 Npte
023-04045-000
1
26
19
Connr, 3/4 Ext Fla X 3/4
023-00934-000
1
26
20
Gasket, Fla 3/4 Od Tube
028-09211-000
1
26
4” OPTION WITHOUT ISOLATION VALVE
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
2
O-ring, Neoprene .644 ID .087 THK
028-12961-004
1
26
3
Plug, Hex HD 3/4
023-18280-000
1
26
4
Valve, Butterfly, Sz 4"
022-10642-004
1
26
4A
O-ring, Neoprene 5.10 ID .275 Thk
028-12961-026
2
8
Gasket, ANSI 4-150#
028-15075-110
1
26
9
HCS5, .625-11 x GR5 Zn
021-32010-024
8
26
10
Nut, Hex .625-11 GR5 Zn
021-32010-501
16
26
11
HCS5, .625-111 x 5 GR5 Zn
021-32010-040
8
26
12
Actuator, Electric
025-38178-000
1
*
13
Valve, Stop Angle
022-10047-000
1
26
14
O-ring, Neoprene .924ID .116THK
028-12961-006
1
26
15
Valve, Stop Angle
022-10054-000
1
26
16
O-ring, Neoprene .468ID .078THK
028-12961-003
1
26
17
Valve, Ball 1 Npti X 1 Npti
022-06873-000
1
26
18
Bush, Pipe 1 - 11-1/2 Npte
023-04045-000
1
26
19
Connr, 3/4 Ext Fla X 3/4
023-00934-000
1
26
20
Gasket, Fla 3/4 Od Tube
028-09211-000
1
26
NOTE:
Items with an * are NOT represented.
