FORM 160.73-RP5 (707)

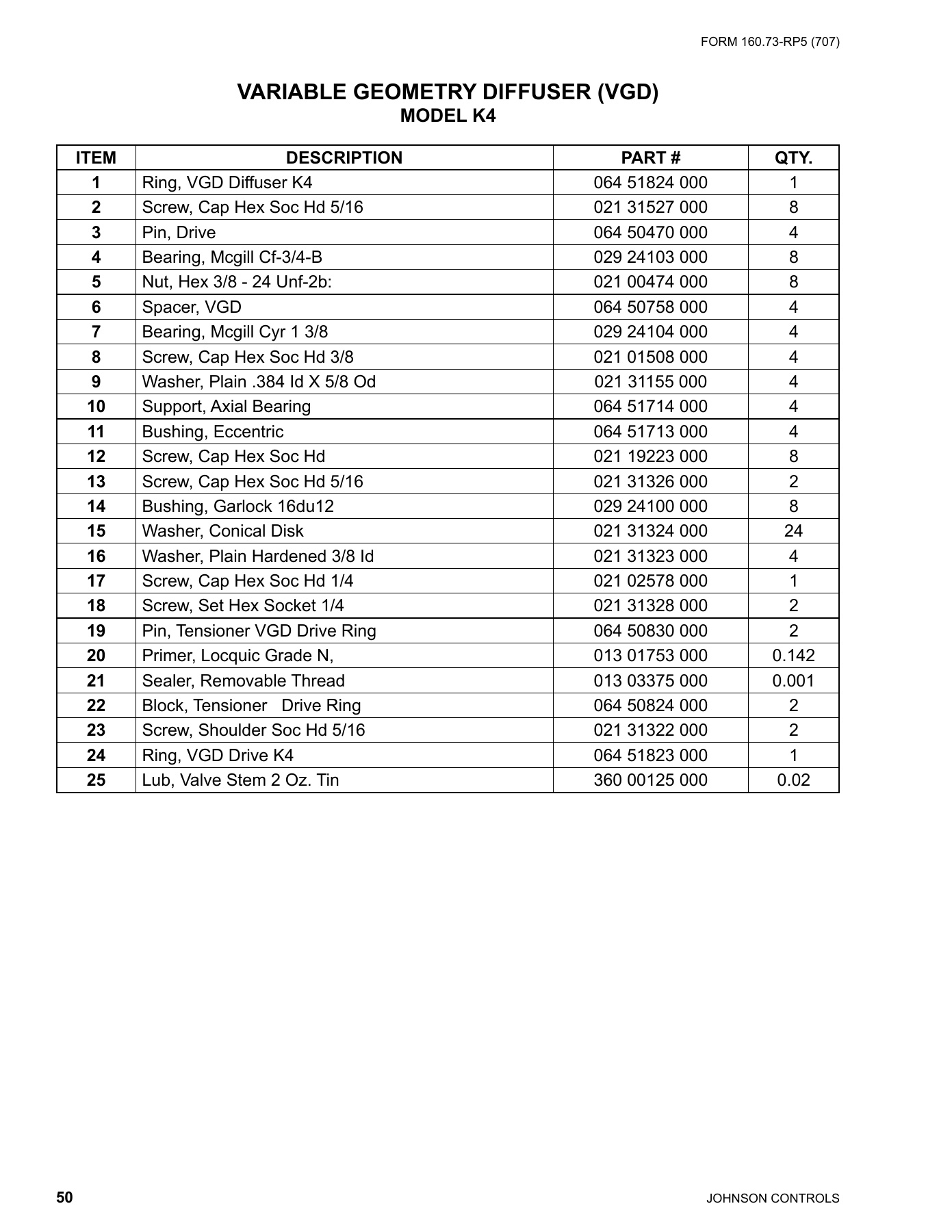

VARIABLE GEOMETRY DIFFUSER (VGD)
MODEL K4
ITEM
DESCRIPTION
PART #
QTY.
1
Ring, VGD Diffuser K4
064 51824 000
1
2
Screw, Cap Hex Soc Hd 5/16
021 31527 000
8
3
Pin, Drive
064 50470 000
4
4
Bearing, Mcgill Cf-3/4-B
029 24103 000
8
5
Nut, Hex 3/8 - 24 Unf-2b:
021 00474 000
8
6
Spacer, VGD
064 50758 000
4
7
Bearing, Mcgill Cyr 1 3/8
029 24104 000
4
8
Screw, Cap Hex Soc Hd 3/8
021 01508 000
4
9
Washer, Plain .384 Id X 5/8 Od
021 31155 000
4
10
Support, Axial Bearing
064 51714 000
4
11
Bushing, Eccentric
064 51713 000
4
12
Screw, Cap Hex Soc Hd
021 19223 000
8
13
Screw, Cap Hex Soc Hd 5/16
021 31326 000
2
14
Bushing, Garlock 16du12
029 24100 000
8
15
Washer, Conical Disk
021 31324 000
24
16
Washer, Plain Hardened 3/8 Id
021 31323 000
4
17
Screw, Cap Hex Soc Hd 1/4
021 02578 000
1
18
Screw, Set Hex Socket 1/4
021 31328 000
2
19
Pin, Tensioner VGD Drive Ring
064 50830 000
2
20
Primer, Locquic Grade N,
013 01753 000
0.142
21
Sealer, Removable Thread
013 03375 000
0.001
22
Block, Tensioner Drive Ring
064 50824 000
2
23
Screw, Shoulder Soc Hd 5/16
021 31322 000
2
24
Ring, VGD Drive K4
064 51823 000
1
25
Lub, Valve Stem 2 Oz. Tin
360 00125 000
0.02
