JOHNSON CONTROLS
49
FORM 160.75-RP2
ISSUE DATE: 4/20/2018
K4

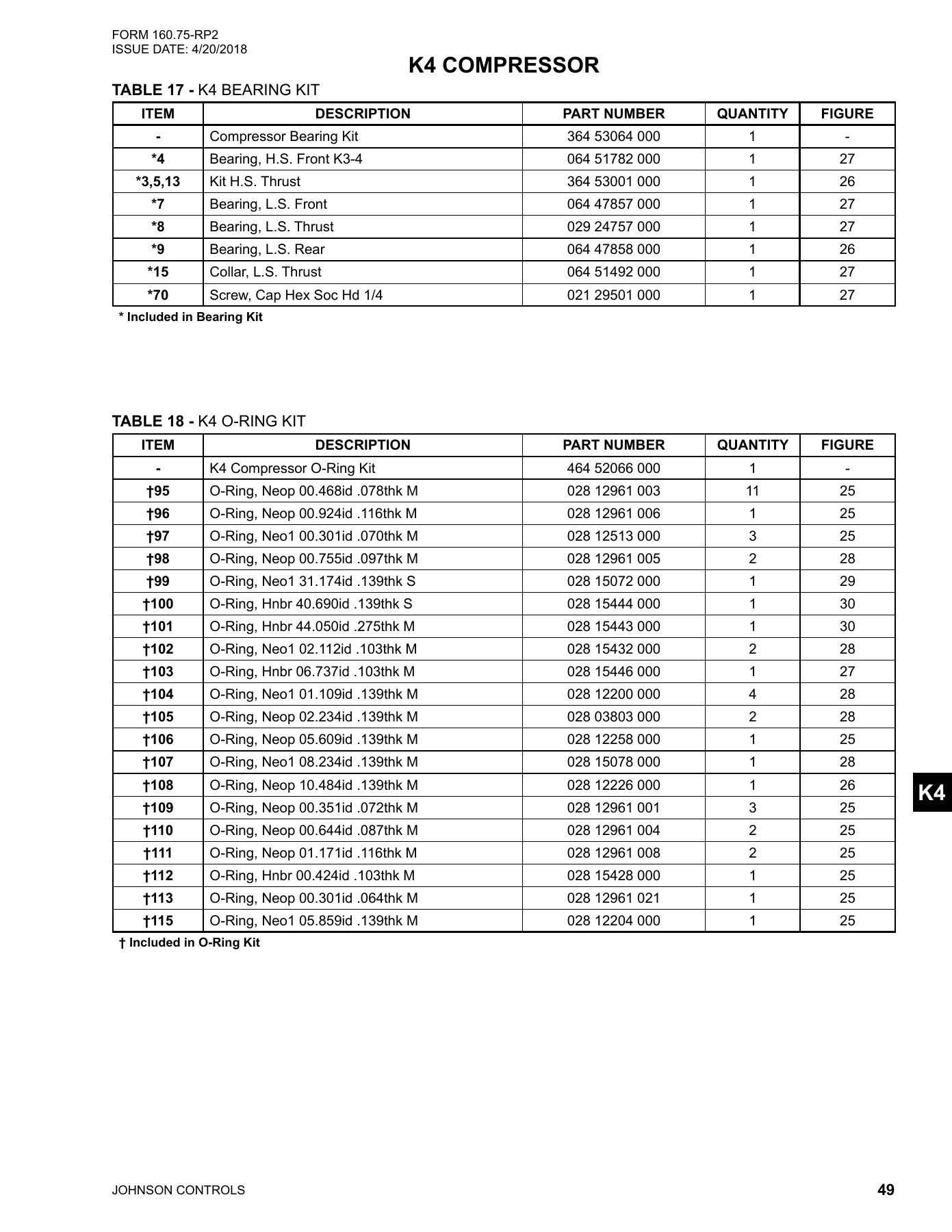

K4 COMPRESSOR
TABLE 17 -
K4 BEARING KIT
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
Compressor Bearing Kit
364 53064 000
1
-
*4
Bearing, H.S. Front K3-4
064 51782 000
1
27
*3,5,13
Kit H.S. Thrust
364 53001 000
1
26
*7
Bearing, L.S. Front
064 47857 000
1
27
*8
Bearing, L.S. Thrust
029 24757 000
1
27
*9
Bearing, L.S. Rear
064 47858 000
1
26
*15
Collar, L.S. Thrust
064 51492 000
1
27
*70
Screw, Cap Hex Soc Hd 1/4
021 29501 000
1
27
* Included in Bearing Kit
TABLE 18 -
K4 O-RING KIT
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
K4 Compressor O-Ring Kit
464 52066 000
1
-
†95
O-Ring, Neop 00.468id .078thk M
028 12961 003
11
25
†96
O-Ring, Neop 00.924id .116thk M
028 12961 006
1
25
†97
O-Ring, Neo1 00.301id .070thk M
028 12513 000
3
25
†98
O-Ring, Neop 00.755id .097thk M
028 12961 005
2
28
†99
O-Ring, Neo1 31.174id .139thk S
028 15072 000
1
29
†100
O-Ring, Hnbr 40.690id .139thk S
028 15444 000
1
30
†101
O-Ring, Hnbr 44.050id .275thk M
028 15443 000
1
30
†102
O-Ring, Neo1 02.112id .103thk M
028 15432 000
2
28
†103
O-Ring, Hnbr 06.737id .103thk M
028 15446 000
1
27
†104
O-Ring, Neo1 01.109id .139thk M
028 12200 000
4
28
†105
O-Ring, Neop 02.234id .139thk M
028 03803 000
2
28
†106
O-Ring, Neop 05.609id .139thk M
028 12258 000
1
25
†107
O-Ring, Neo1 08.234id .139thk M
028 15078 000
1
28
†108
O-Ring, Neop 10.484id .139thk M
028 12226 000
1
26
†109
O-Ring, Neop 00.351id .072thk M
028 12961 001
3
25
†110
O-Ring, Neop 00.644id .087thk M
028 12961 004
2
25
†111
O-Ring, Neop 01.171id .116thk M
028 12961 008
2
25
†112
O-Ring, Hnbr 00.424id .103thk M
028 15428 000
1
25
†113
O-Ring, Neop 00.301id .064thk M
028 12961 021
1
25
†115
O-Ring, Neo1 05.859id .139thk M
028 12204 000
1
25
† Included in O-Ring Kit
