FORM 160.73-RP5 (707)

49

JOHNSON CONTROLS

DEVICE PRE-ROTATION

MODEL K4

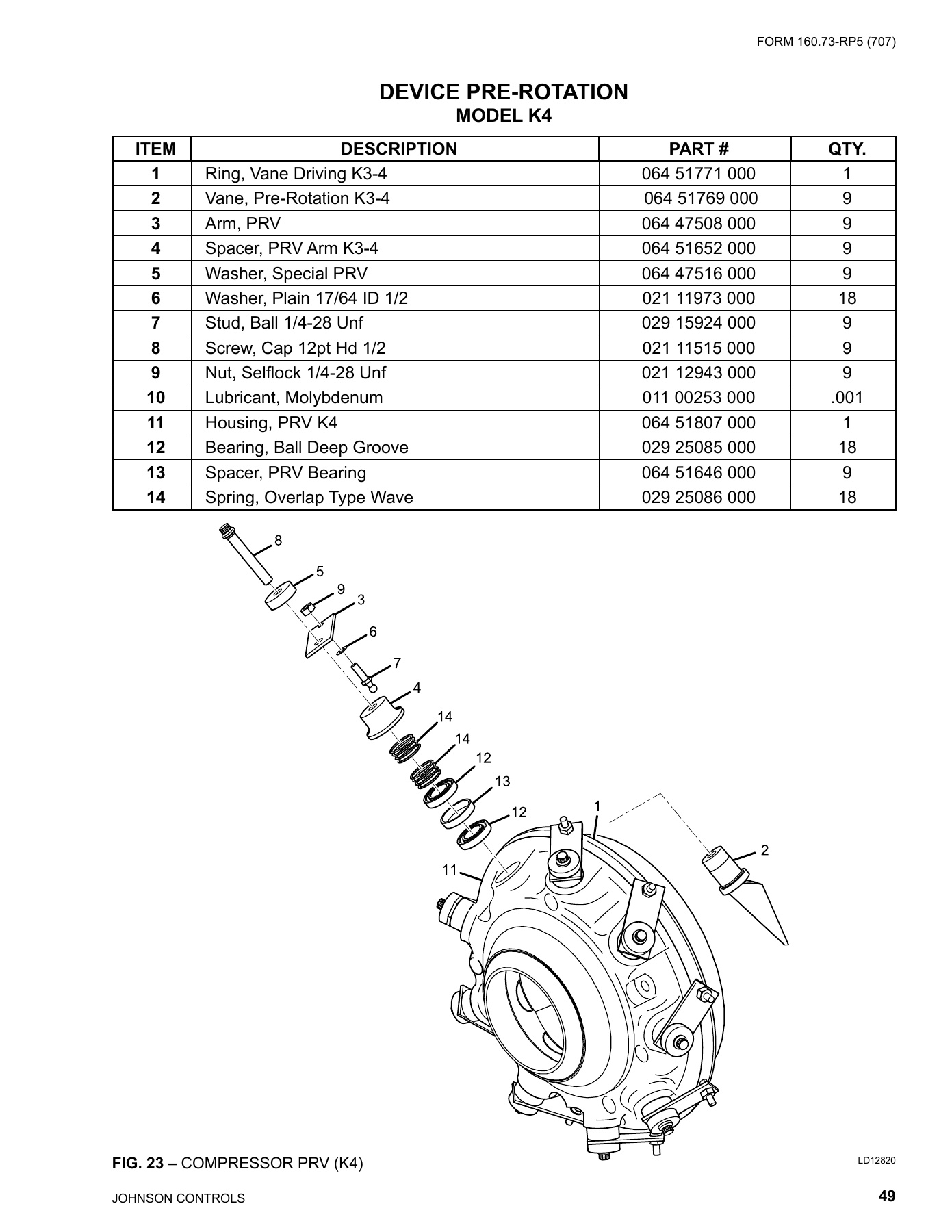

FIG. 23 –

 COMPRESSOR PRV (K4)

LD12820

ITEM

DESCRIPTION

PART #

QTY.

1

Ring, Vane Driving K3-4

064 51771 000

1

2

Vane, Pre-Rotation K3-4

 064 51769 000

9

3

Arm, PRV

064 47508 000

9

4

Spacer, PRV Arm K3-4

064 51652 000

9

5

Washer, Special PRV

064 47516 000

9

6

Washer, Plain 17/64 ID 1/2

021 11973 000

18

7

Stud, Ball 1/4-28 Unf

029 15924 000

9

8

Screw, Cap 12pt Hd 1/2

021 11515 000

9

9

Nut, Selflock 1/4-28 Unf

021 12943 000

9

10

Lubricant, Molybdenum

011 00253 000

.001

11

Housing, PRV K4

064 51807 000

1

12

Bearing, Ball Deep Groove

029 25085 000

18

13

Spacer, PRV Bearing

064 51646 000

9

14

Spring, Overlap Type Wave

029 25086 000

18
