ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
204
Device, PRV (J3)
364 50208 002
1
23
Device, PRV (J4)
364 50208 003
1
23
Device, PRV (J5)
364 50208 004
1
23
205
Screw, Cap Hex Soc Hd 3/8 (J3/J4)
021 17766 000
6
23
Screw, Cap Hex Soc Hd 3/8 (J5)
021 17298 000
6
23
206
Ring, Eye Seal (J3)
064 50247 000
1
23
Ring, Eye Seal (J4)
064 50250 000
1
23
Ring, Eye Seal (J5)
064 50244 000
1
23
210
Plug, Hex Hd 1-5/16
023 18282 000
2
25
211
Screw, Cap 12 Pt Hd 1/2 (J3/J4)
021 17571 000
6
23
Screw, Cap 12 Pt Hd 1/2 (J5)
021 12165 000
6
23
212
Plug, Hex Hd 9/16
023 18962 000
4
23, 25
221
Ring, Balance Piston Seal (J3/J4)
064 50241 000
1
23
Ring, Balance Piston Seal (J5)
064 50238 000
1
23
222
Retainer, B.P. Seal Washer (J3/J4)
064 50242 000
1
23
Retainer, B.P. Seal Washer (J5)
064 50239 000
1
23
223
Washer, Spring Balance Piston (J3/J4)
064 50243 000
1
23
Washer, Spring Balance Piston (J5)
064 50240 000
1
23
224
Washer, Spring Eye (J3)
064 50248 000
1
23
Washer, Spring Eye (J4)
064 50251 000
1
23
Washer, Spring Eye (J5)
064 50245 000
1
23
225
Retainer, Eye Seal Washer (J3)
064 50311 000
1
23
Retainer, Eye Seal Washer (J4)
064 50314 000
1
23
Retainer, Eye Seal Washer (J5)
064 50246 000
1
23
†226
Seal, O-Ring Neoprene
028 12961 008
2
25
†227
Seal, O-Ring Neoprene
028 12961 003
9
23, 25, 26
-
Bearing Kit, Compressor (J3/J4/J5)
464 49802 000
-
*
-
O-Ring Kit, Compressor (J3/J4J5)
464 51841 000
-
*
-
Tool Kit, Compressor (J3/J4/J5)
364K48026 000
-
*
* Included in Bearing Kit † Included in O-Ring Kit

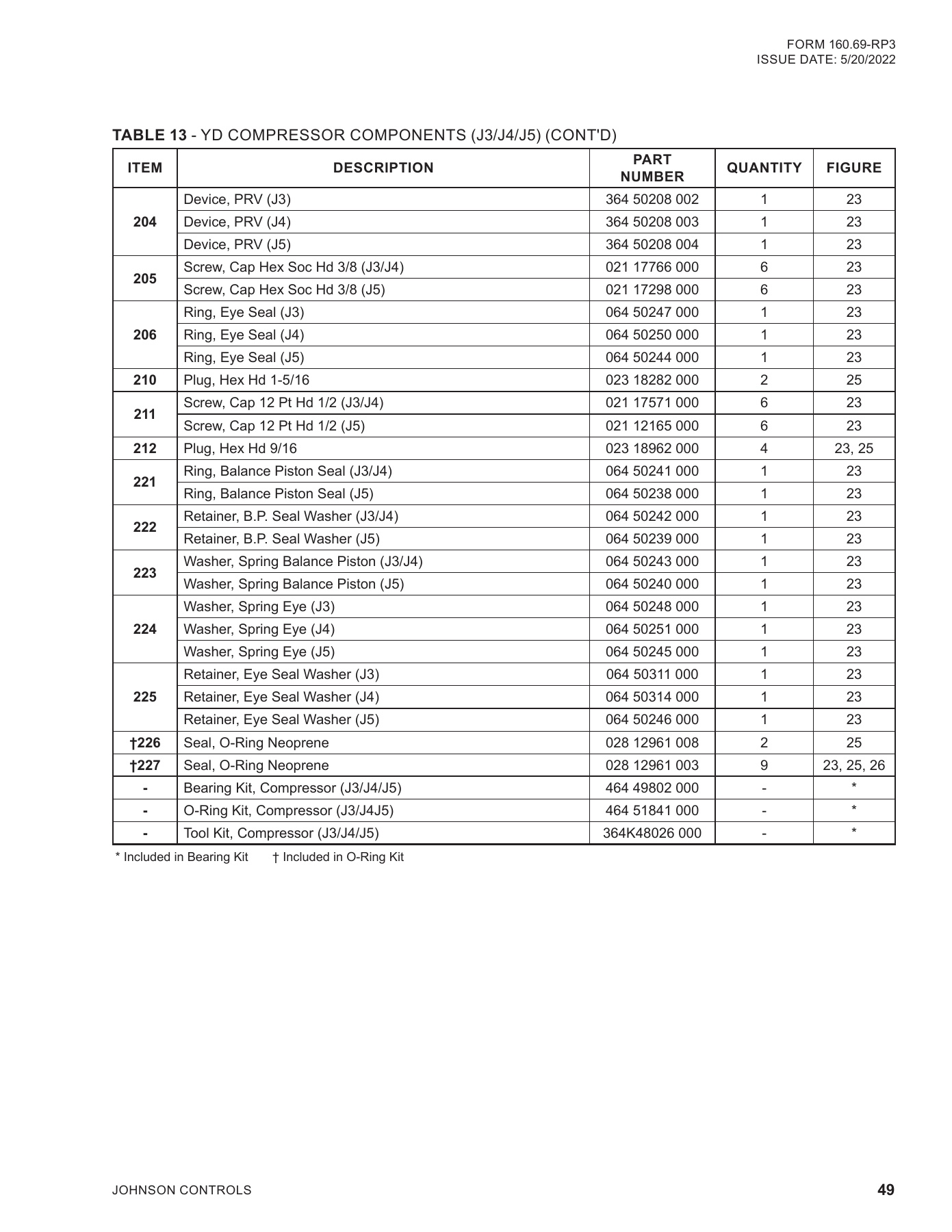

TABLE 13
- YD COMPRESSOR COMPONENTS (J3/J4/J5) (CONTD)
